SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display
SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display
SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display
SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display
SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display
SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display
SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display
SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display
Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - OFS - P8
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 850 - 950 / Square Meter
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10 - 12 Work Days
Packaging Details :
Wooden Case (Wooden case size depend on cabinet quantity)
Pixel Pitch :
8mm
Color Configuration :
1R1G1B 3in1
LED Encapsulation :
SMD3535
Module Size :
256mm x 128mm
Module Weight :
0.35kg
Cabinet Size :
1280mm x 640mm
Cabinet Weight :
35kg
Warranty :
2 Full Years
Description

SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display

Decription:

6,500nits Outdoor High Brightness LED Display, 8mm Outdoor Full Color LED Display. Using outdoor high brightness SMD3535 LED lamp to makes sure 6,500nits brightness.

Features:
1. Super light and super slim design
Weight: 35kg/cabinet
Thickness: 100mm
2. Seamless splicing design
Splice: <0.3mm

3. Energy saving design

Max. power consumption: 760W/sqm

Ave. power consumption: 253W/sqm

4. Great heat disspation design

Specification:

Pixel Pitch

8mm

Pixel Density

15,625dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD3535

Module Size

256mm x 128mm

Module Resolution

32dots x 16dots

Cabinet Size

1,280mm x 640mm

Cabinet Resolution

160dots x 80dots

Drive Duty

1/4 Constant Current

Brightness

>6,500nits

Viewing Distance

8m - 80m

Viewing Angle

H: 120°, V:120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V - 40A, AC110V/ 220V/ 50HZ

Max Power Consumption

760W/sqm

Ave. Power Consumption

253W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃
Waterproof IP65

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Cabinet Weight

35kg

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS


Application:

Widely using for theater, stadium, showroom, stage, monitoring room and etc.

Pictures:

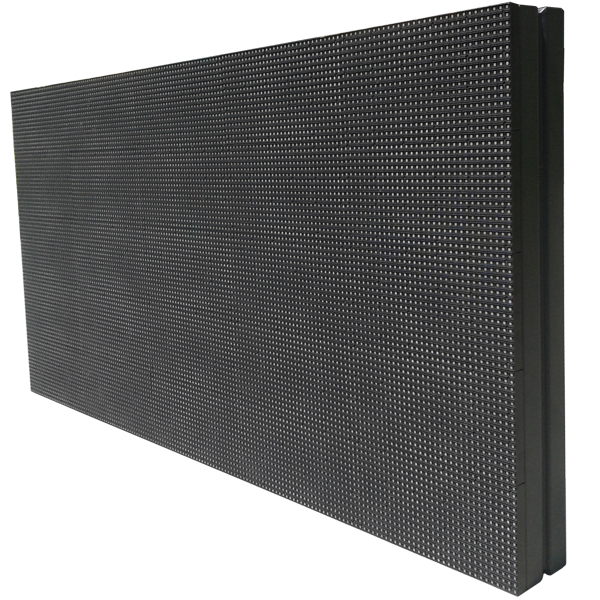

SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display

SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video DisplaySMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display


Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.

2. 24hours per 7 days, 2 full years warranty.

3. fast installation and easy to install.
