8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof
8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof
8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof
8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof
8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof
8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof
8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof
8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof
Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - OFM - P8
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
10PCS
Price :
US$10 - 12 / PCS
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
1,000 PCS per Month
Delivery Time :
5 - 7 Work Days
Packaging Details :
Carton Case (carton case size depend on module quantity)
Pixel Pitch :
8mm
Color Configuration :
1R1G1B 3in1
LED Encapsulation :
SMD3535
Module Size :
256mm x 128mm
Module Weight :
0.35kg
Drive Duty :
1/4 scan
Lifespan :
100,000hrs
Warranty :
2 Full Years
Description

8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof

Decription:

High Definition 8mm Outdoor 256mm x 128mm Full Color Waterproof LED Module 1/4 Scan. Brightness can be higher than 6,500nits.

Features:
1. Best viewing distance
8m - 80m
2. Best viewing angle
H: 120°, V: 120°
3. Max. power consumption
1,200W/sqm
4. Ave. power consumption
400W/sqm

Specification:

Pixel Pitch

8mm

Pixel Density

15,625dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD3535

Module Size

256mm x 128mm

Module Resolution

32dots x 16dots
Module Weight 0.35kg

Drive Duty

1/4 Constant Current

Brightness

>6,500nits

Viewing Distance

8m - 80m

Viewing Angle

H: 120°, V: 120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

AC110V/ 220V/ 50HZ

Max Power Consumption

1,200W/sqm

Ave. Power Consumption

400W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃
Waterproof IP65

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS


Application:

Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

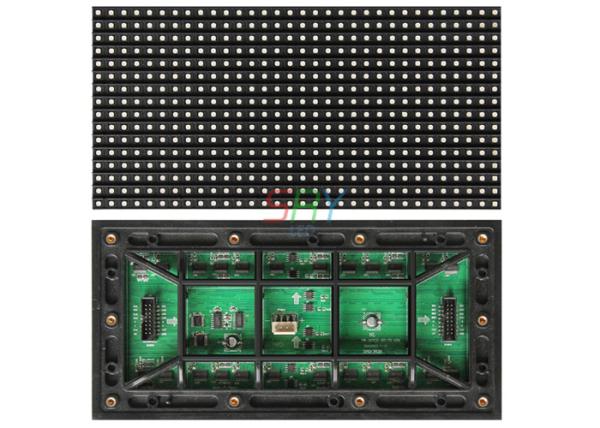

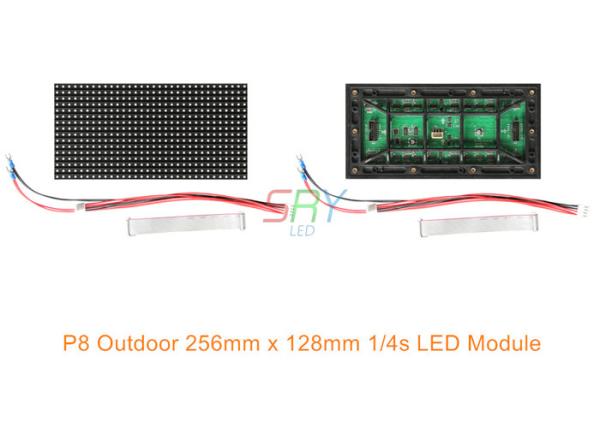

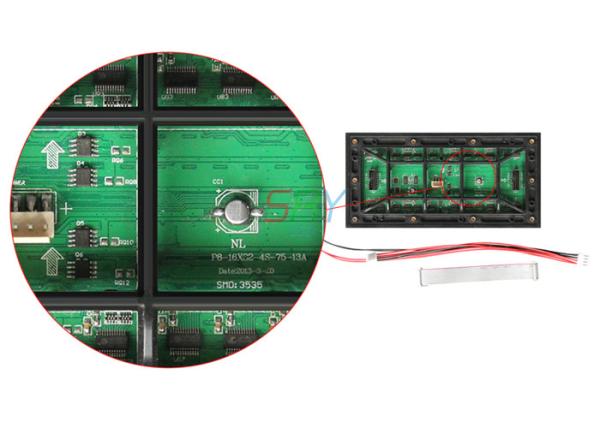

Pictures:

8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof

8mm Out door 256mm x 128mm LED Display Module Full Color Waterproof


Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.


2. Superb performance/price ratio solution for rental market.


3. 24/7 professional after sales service, and on-site service is available.


4. Support different shapes installation: Flat and curved ,create infinite stage styles.
