Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P10
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
580-750USD/sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
10mm
Module Size :
10000dots/sqm
Confirguration :
1R1G1B
Leds Type :
SMD3535
Cabinet size :
1280mm x 1920mm
Maintainance :
front access
Description

Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System

Description

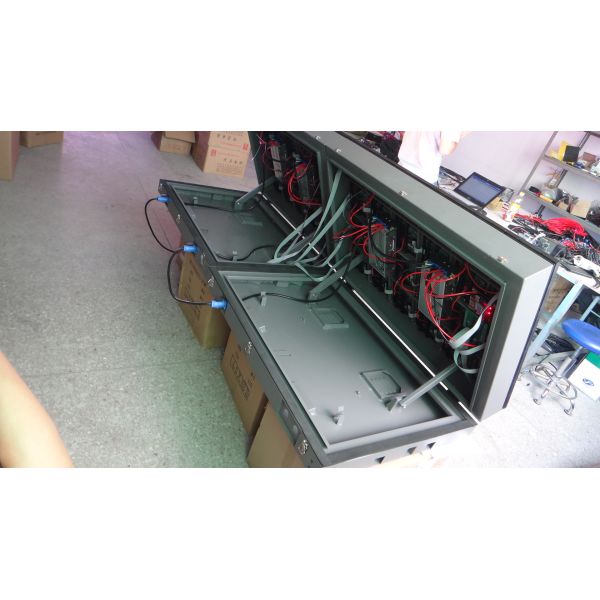

1. Front access led screen, it also called front service. Led screen have front access and rear access two types. Mostly we used rear access cabinets, while if led screen height is not very high(usually less than 2 meters), you can choose front access led cabinet.

2. It is very to install, only need a angle iron and some screws to fix on wall.

3. When led modules, cables or power supply dont work well, we can open the led cabinet from front side to replace or repair broken parts.

Features

1. SMD3-in-1 technology are used for indoor LED display.

2. Wide view angle: 140 in horizonal and 140 in vertical.

3. Special design and advanced SMT technology improves the heat dissipation.

4. With high refresh rate controller, guarantee that no scan line when taking photos.

5. Slim and lightweight design.

6. Easy for assembling and connecting with fast lock and the connector added.

7. High color uniformity and clear image can bring you a vivid audio visual effect.


Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine, Solder Paste Printing Machine, Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium-speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

Specification

Pixel Pitch

10mm

Pixel Density

10000dots/sqm

Color Configuration

1R1G1B

Module Size

320mm x 160mm

Standard Cabinet Size

1280mm x 1920mm

Brightness

>6500cd/sqm

Viewing Distance

10m-100m

Viewing Angle

H: 120°; V:120°

Refresh Rate

2000HZ

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

700W/sqm

Ave. Power Consumption

250W/sqm

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Product Images

Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System

Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System

Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
