Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P10.416
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
850-990USD/sqm
Payment Terms :
T/T, Western Union, PayPal, L/C, D/A, D/P, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
10.416mm
Module Size :
250mm x 250mm
Pixel :
24 x 24 dot
Led Chip :
SMD3535
Drive Method :
1/8 scan
Cabinet Size :
500mm x 1000mm
Cabinet Material :
Die casting aluminum
Brightness :
4500cd/sqm
Description

Transparent Flexible Led Screen SMD3535 P10.4 Led Mesh Screen For Stage Background

Available Led Pixel: P6.25, P8.925, P10.416, P12.5

Description

1. Using SMD 3535 led lamp, which is much better than DIP for rental screen

a) It has a very wide viewing angle >120 degree in horizontal and vertical .

b) High equality of lamp brightness and good color mixture, this is very suitable for rental use

especially when audience has a closer viewing distance.

c) SMD weight less than DIP lamps.

2. Super slim and super light, fast installation

The cabinet size is 500*1000*80mm,saving a lot of space for storing and transportation.

The weight is only 12 KG/cabinet. This not only saves much transportation cost, but also saves labor cost. Even one person can easily install 1pcs cabinet in 1 min.

3. IP65 protection level, water-proof.

Strong weather resistance, can be used in various severe outdoor environments in long-term.

4. You can choose either transparent and no transparent design.

Semi-transparent design for air ventilation and heat dissipation.

5. Brightness up to 5500cd/sqm to satisfy both indoor and outdoor event rental use. (Brightness adjustable)

6. Hanging design. Can be hanged as well if needed.

7. Solid cabinet structure. Meet the requirement of thousand times of assemble and disassemble.

8. Cabinet shape and design. Can be assembled whether flat or curved, any shape as you like.

Features

1, Ultra-Slim and Light-weight with Aluminum-magnesium Alloy

2, Huge Viewing Angle and Outstanding Uniform Performance of LEDs

3, Seamless Splicing and Fast Installation

4, Noiseless with No-fan Design

5, High Quality Raw Material

Competitive Advantages

1, First-class led chip and IC

2, 48 hours aging for modules and led screens

3, 24/7 after-sale service

4, Free technology and operation training

5, Engineer guide install and operate online

Specification

Pixel Pitch

10.416mm

Pixel Density

9217dots/sqm

Color Configuration

1R1G1B

LED Package

SMD3535

Module Size

250mm x 250mm

Module Resolution

24dots x 24dots

Drive Mode

1/4 Scan, Constant Current

Standard Cabinet Size

500mm x 1000mm

Cabinet Material

Iron / Aluminum

Cabinet Weight

15KG / 11KG

Brightness

4500cd/sqm

Viewing Distance

10m-100m

Viewing Angle

H: 120°; V:120°

Refresh Rate

2000HZ

Frame Rate

120frame/sec

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

400W/sqm

Ave. Power Consumption

100W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control PC

With DVI Graphic card

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Operating System

Win 98, Win2000, XP, Win7, Win8

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

Applications

Business Organizations

Supermarket, large-scale shopping malls, star-rated hotels, travel agencies

Financial Organizations

Banks, insurance companies, post offices, hospital, schools

Public Places

Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms

Entertainments

Movie theaters, clubs, stages

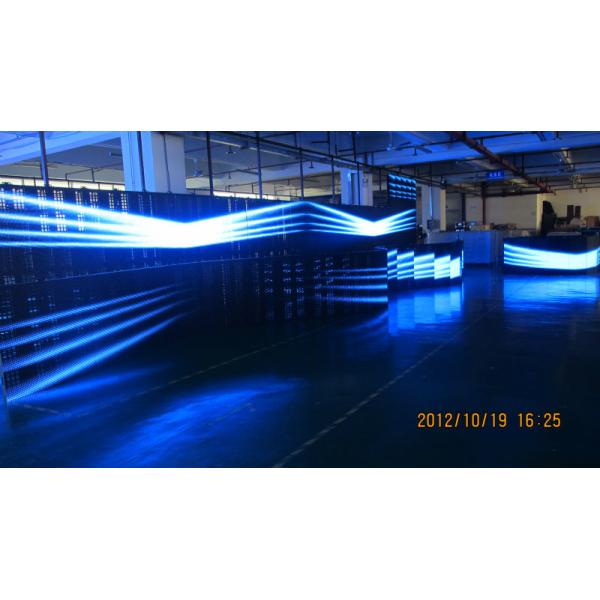

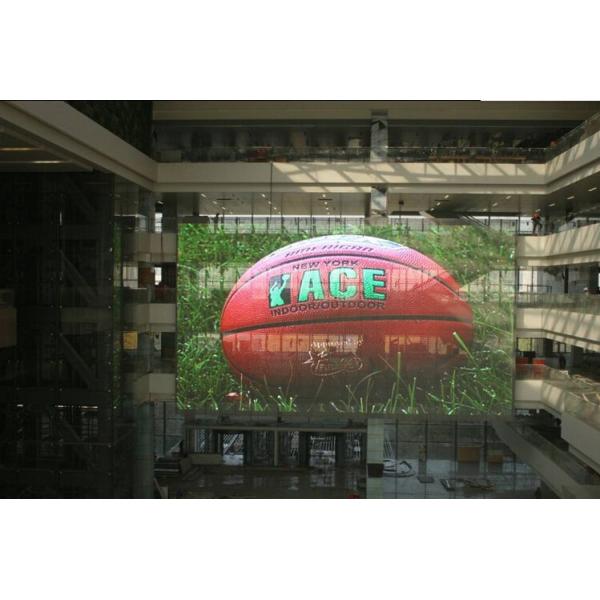

Product Images

Transparent Flexible Led Screen SMD3535 P10.4 Led Mesh Screen For Stage Background

Transparent Flexible Led Screen SMD3535 P10.4 Led Mesh Screen For Stage Background

Transparent Flexible Led Screen SMD3535 P10.4 Led Mesh Screen For Stage Background
