8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen
8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen
8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen
8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen
8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen
8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen
8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen
8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen
Specifications
Brand Name :
SRYLED
Model Number :
SRY - OF - P6
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 1,450 ~ 1,550 / Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10-12 work days
Packaging Details :
Wooden Case (1.06 x 0.50 x 1.16m，case size based on cabinet size. 2 cabinets in 1 wooden case)
Pixel Pitch :
6mm
LED Encapsulation :
DIP246
Module Size :
192mm x 192mm
Brightness :
8,000nits
Waterproof :
IP65
MTBF :
10,000hrs
Lifespan :
100,000hrs
Warranty :
2 full years
Description

8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

Decription:

Outdoor P6 LED billboard. It has the smaller LED encapsulation. With DIP246 192mm x 192mm LED module, brightness is higher than 8,000nits. For small size billboard, it is a good choice for its high definition.
Features:
1. High brightness

2. Easy to maintain

3. Good color uniformity

4. Energy saving design

5. Low power consumption

6. Light cabinet design

7. 2 full years warranty

Specificition:

Pixel Pitch

6mm

Pixel Density

27,777dots/sqm

Color Configuration

1R1G1B

LED Encapsulation

DIP346

Module Size

192mm x 192mm

Module Resolution

32dots x 32dots

Drive Duty

1/8scan Constant Current

Brightness

>8,000nits

Viewing Distance

6m - 60m

Viewing Angle

H: 120°; V: 70°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V-20A, AC110V/ 220V/ 50HZ

Max Power Consumption

1040W/sqm

Ave. Power Consumption

340W/sqm

Storage Temperature

-40℃ ~ +80℃

Working Temperature

-20℃ ~ +60℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS

Application:

Outdoor double column LED billboards are widely use in road side, express way, gas station, playground and etc.

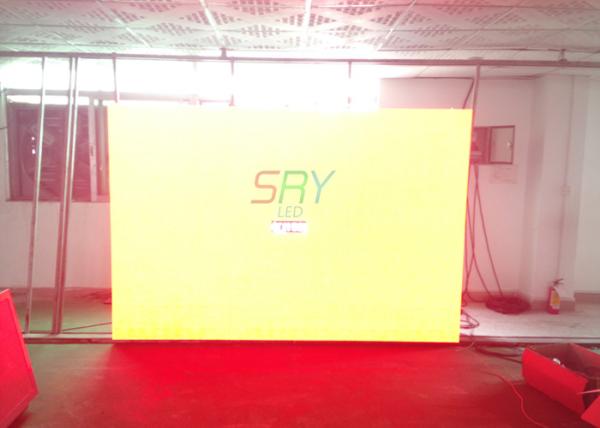

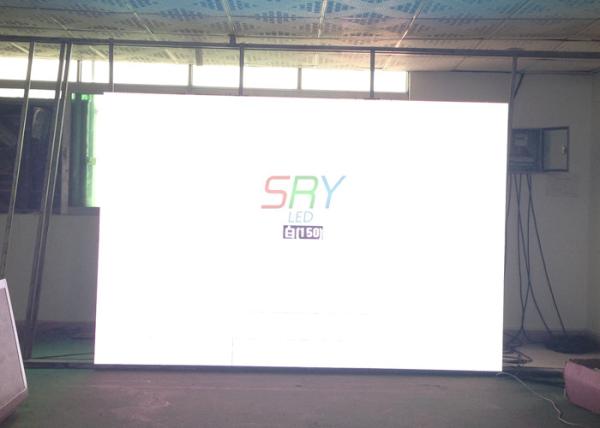

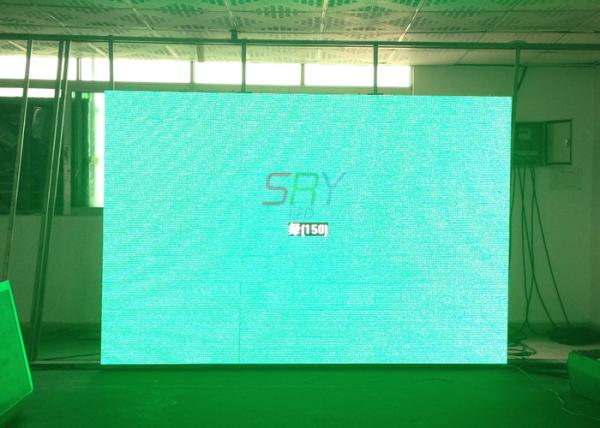

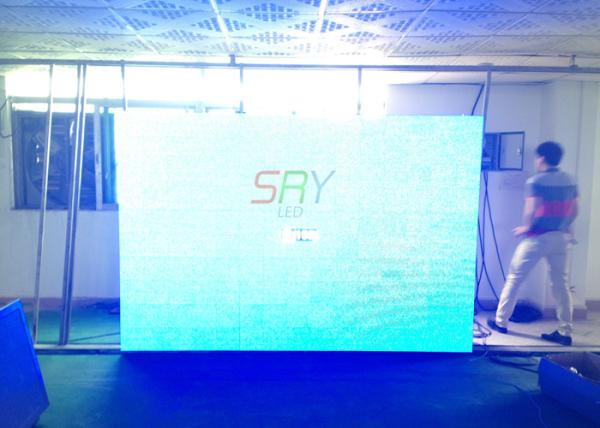

Application Pictures:

8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

Competitive Advantages:

1. High brightness: >7,500nits

2. Wide viewing angle: H: 120°; V: 70°

3. Best viewing distance: 12m ~ 120m

4. Waterproof: Front: IP65, Rear: IP54
