WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
Specifications
Brand Name :
SRYLED
Model Number :
SRY-IF-P10
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1 sqm
Price :
400-700USD/sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
3000sqm per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
10mm
Module Size :
320mm x 160mm
Cabinet Size :
960mm x 960mm
Resolution :
10000dots/sqm
Best Viewing Distance :
10-100m
Average Consumption :
250W/sqm
Certificate :
CE, RoHS
Drive Method :
1/8 scan
Description

WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen

Quick Detail:

1. 32 × 16 dots per LED module

2. 320 × 160 mm module size

3. SMD3528 LED type

4. 1/8 scan constant current

5. About 1.5 cm thick

6. JXI5020 drive IC


Feature:

1. Front access or rear access cabinets are available


2. LED Cabinet Material: Iron and aluminum


3. LED Cabinet Size: 960mm x 960mm


4, Cabinet Weight: 35kg/cabinet


5. Control software:Novastar / Linsn / Xixun / Huidu

6, Control way: 3G / WIFI / GPRS / RS232 / Sychronous

Description:

1. Use friendly computer system

2. Fast and easy to assemble and dismantle

3. Wide viewing angle ,excellent white color balance

4. High grayscale with perfect visual performance


5. High reliability and long lifespan

Competitive Advantage:

1. High Cost-effective


2. 24/7 hrs after sale service

3. 48 hours aging for modules and led screen

4, Free training for software operation

5, Engineer online guidance

6, Short delivery time

7, Low power consumption


Specification:

Pixel Pitch

10mm

Pixel Density

10000dots/sqm

Color Configuration

1R1G1B

LED Package

SMD3528

Module Size

320mm x 160mm

Module Resolution

32dots x 16dots

Drive Mode

1/8 Scan

Standard Cabinet Size

960mm x 960mm

Cabinet Weight

35KG

Brightness

900 cd/sqm

Viewing Distance

10m-100m

Viewing Angle

H: 120°; V:120°

Refresh Rate

1000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

650W/sqm

Ave. Power Consumption

200W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Control PC

With DVI Graphic card

Operating System

Win 98, Win2000, XP, Win7, Win8

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

Applications:

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops,
star-rated hotels, restaurants, travel agencies

Financial Organizations

Banks, insurance companies, post offices, hospital, schools

Public Places

subway, airports, stations, gas stations, bookstores, parks, exhibition halls,
stadiums, museums, convention centers, commercial buildings, meeting rooms

Entertainments

Movie theaters, clubs, bars, stages

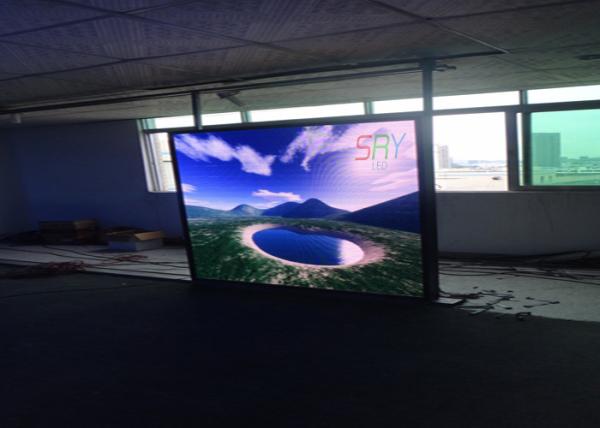

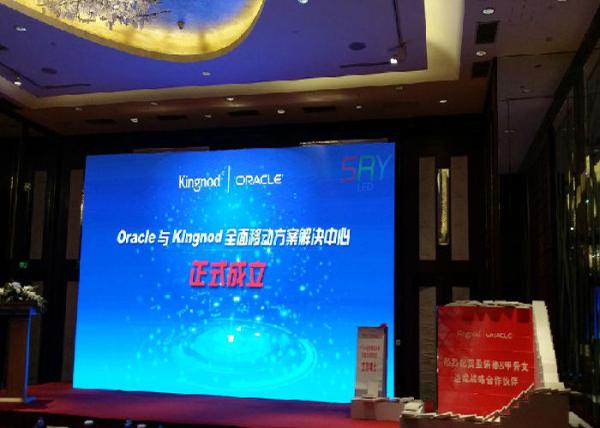

Product images:

WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen

WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen

WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
