3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
Specifications
Brand Name :
SRYLED
Model Number :
SRY-IF-P6
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1 sqm
Price :
500-900USD/sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
3000sqm per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
6mm
Module Size :
192mm x 192mm
Cabinet Size :
960mm x 960mm
Resolution :
27777dots/sqm
Viewing Distance :
6-60m
Brightness :
1100cd/sqm
Average Consumption :
250W/sqm
Cabinet Type :
Front maintenance
Description

3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant

Quick Detail:

1. 32 × 32 dots per LED module

2. 192 × 192 mm module size

3. SMD3528 LED type

4. 1/16 scan constant current

5. About 1.5 cm thick

6. JXI5020 drive IC


Feature:

1. Cabinet is maintenance from front side


2. LED Cabinet Material: Iron and aluminum


3. LED Cabinet Size: 960mm x 960mm


4, Cabinet Weight: 35kg/cabinet


5. Control software:Novastar / Linsn

Description:

1. Use friendly computer system


2. Approximate 3D image quality

3. Fast and easy to assemble and dismantle

4. Wide viewing angle ,excellent white color balance

5. High grayscale with perfect visual performance


6. High reliability and long lifespan

Competitive Advantage:

1. Easy to install and remove


2. Convenient for maintainance

3. Less Installation material and labor


Specification:

Pixel Pitch

6mm

Pixel Density

27777dots/sqm

Color Configuration

1R1G1B

LED Package

SMD3528

Module Size

192mm x 192mm

Module Resolution

32dots x 32dots

Drive Mode

1/16 Scan
Cabinet Maintenance Front Acess

Standard Cabinet Size

960mm x 960mm

Cabinet Weight

35KG

Brightness

≥1100 cd/sqm

Viewing Distance

6m-60m

Viewing Angle

H: 140°; V:120°

Refresh Rate

2000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

700W/sqm

Ave. Power Consumption

250W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Control PC

With DVI Graphic card

Operating System

Win 98, Win2000, XP, Win7, Win8

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

Applications:

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops,
star-rated hotels, restaurants, travel agencies

Financial Organizations

Banks, insurance companies, post offices, hospital, schools

Public Places

subway, airports, stations, gas stations, bookstores, parks, exhibition halls,
stadiums, museums, convention centers, commercial buildings, meeting rooms

Entertainments

Movie theaters, clubs, bars, stages

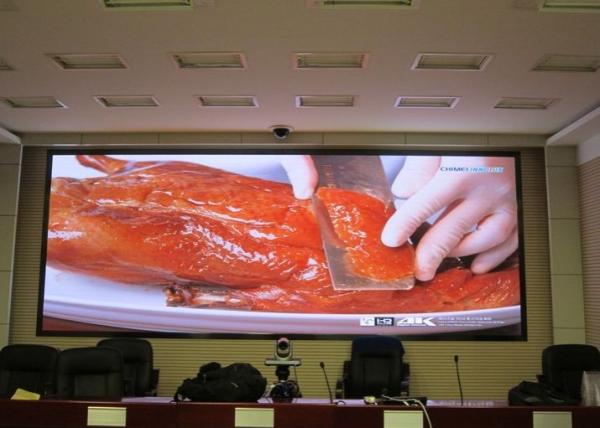

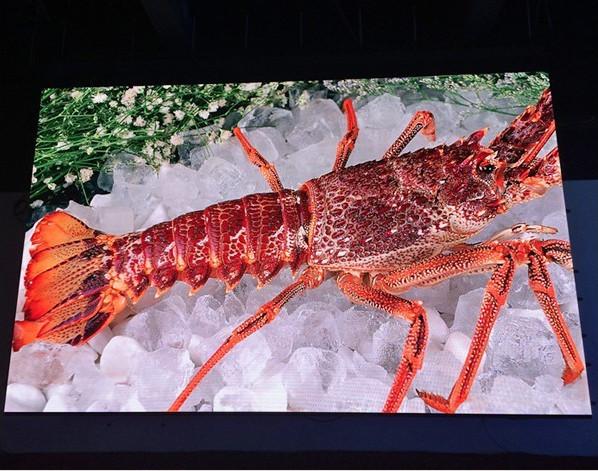

Product images:

3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant


3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant

3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant

3G P6 LED Display AC 110V / 220V LED Wall Display Screen For Restaurant
