Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen
Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen
Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen
Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen
Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen
Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen
Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen
Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen
Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P6
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
4pcs
Price :
US$ 1,350 ~ 1,380 / Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10-12 work days
Packaging Details :
Flight Case (0.90x0.68x0.78m，case size based on cabinet size. 6 cabinets in 1 flight case)
Pixel Pitch :
6mm
LED Encapsulation :
SMD3535
Module Size :
192mm x 192mm
Cabinet Size :
576mm x 576mm
Cabinet Weight :
12kg/pcs
Waterproof :
IP65
Lifespan :
100,000hrs
Certificate :
CE, LVD, RoHS
Description

Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Decription:

Outdoor P6 unit board adopts mainly two LED encapsulation. One kind is SMD2828, another kind is SMD3535. For the price, SMD2828 is cheaper than SMD3535. For the performance, SMD3535 is better than SMD2828. Coincide with the development trend of the market, the price differences between them become smaller and smaller. Hence the module with SMD3535’s cost-effective become higher and higher.
Features:
1. Screen brightness can be adjustable via LED Studio.

2. Screen working humidity: 10% ~ 95%.

3. Screen working temperature: -20ºc ~ +60ºc.

4. Energy saving design makes sure low power consumption.

Specification:

Pixel Pitch

6mm

Pixel Density

27,777dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD3535

Module Size

192mm x 96mm

Module Resolution

32dots x 32dots

Cabinet Size

576mm x 576mm

Cabinet Resolution

192dots x 192dots

Drive Duty

1/8scan Constant Current

Brightness

>6,500nits

Viewing Distance

6m - 60m

Viewing Angle

H: 120°, V:120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V - 40A, AC110V/ 220V/ 50HZ

Max Power Consumption

1,200W/sqm

Ave. Power Consumption

400W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃
Waterproof IP65

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Cabinet Weight

12kg

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS

Application:

Music concert, movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,

cafes, Internet bars, beauty shops, golf course rental use.

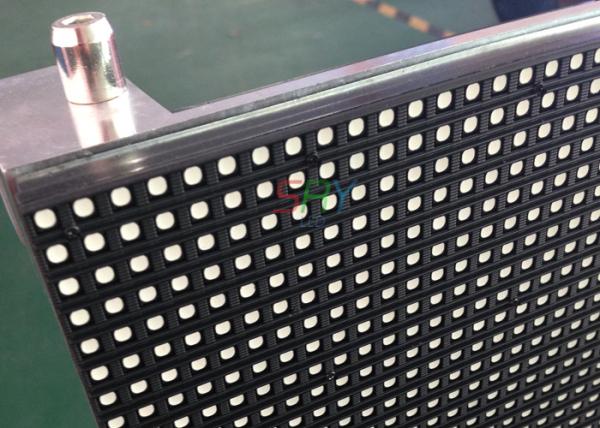

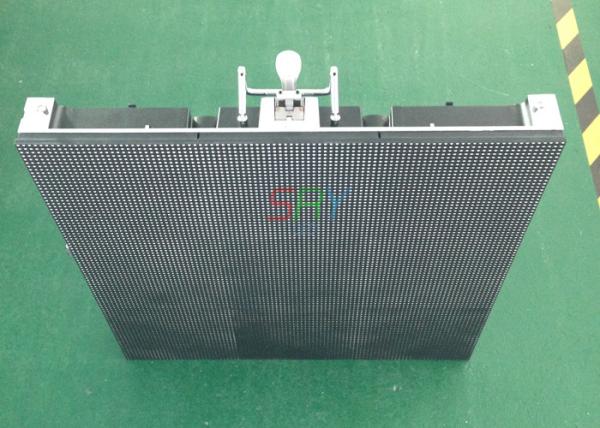

Cabinet Pictures:

Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Competitive Advantages:

1. No noise, low radiation

2. Super light & slim, seamless splice design

3. Fast and easy to install without tool

4. Energy-saving, environmental and low consumption design
