Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous
Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous
Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous
Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous
Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous
Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous
Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous
Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous
Specifications
Brand Name :
SRYLED
Model Number :
SRY - OF - P8
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 1,150 - 1,250 / Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
3,000 Square Meter per Month
Delivery Time :
10 - 12 work days
Packaging Details :
Flight Case (0.520 x 0.70 x 0.80m, case size based on cabinet size and quantity. 6 cabinets in 1 flight case)
Pixel Pitch :
8mm
LED Encapsulation :
SMD3535
Module Size :
256mm x 128mm
Drive Duty :
1/4scan Constant Current
Cabinet Material :
Die - casting Aluminum
Cabinet Size :
512mm x 512mm
Lifespan :
100,000hrs
Certificate :
CE, LVD, RoHS
Description
Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous



Decription:

HD 6,500nits Outdoor Portable and Energy Saving P8 SMD3535 Full Color LED Stage Display Screen use for outdoor music concert.

1. High Brightness

Outdoor P8 with big SMD LED, its brightness is higher than 6,500nits.

2. Portable design

With fast lock on cabinet sides, it is easy to install and uninstall.

3. Energy-daving design

Ave. power cunsumption for each square meter only 300W/sqm.

Features:
1. Cabinet Weight: 12kg

2. Cabinet thinkness: 70mm

3. Best Viewing angle: H: 120º, V: 120º

4. Best viewing distance: 8m - 80m

Specification:

Pixel Pitch

8mm

Pixel Density

15,625dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD3535

Module Size

256mm x 128mm

Module Resolution

16dots x 8dots

Cabinet Size

512mm x 512mm

Cabinet Resolution

64dots x 64dots

Drive Duty

1/4 Constant Current

Brightness

>6,500nits

Viewing Distance

8m - 80m

Viewing Angle

H: 120°, V:120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V - 20A, AC110V/ 220V/ 50HZ

Max Power Consumption

1,000W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃
Waterproof IP65

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Cabinet Weight

12kg

Operating Humidity

10%~95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS


Application:

Outdoor big music concert, movie theater, fitness hall, country club, wedding ceremony, brithday ceremony, meeting room, stage shows, exhibitions and etc stage rental use

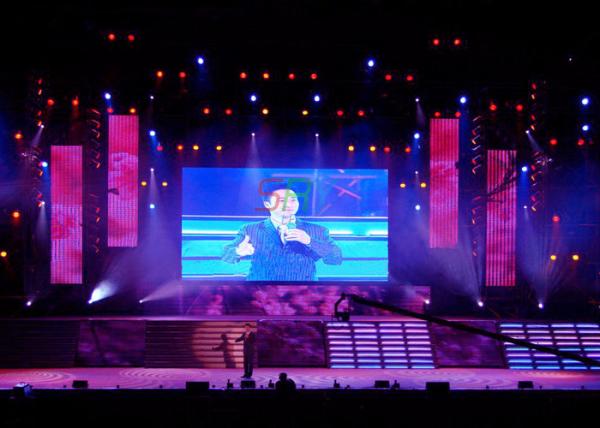

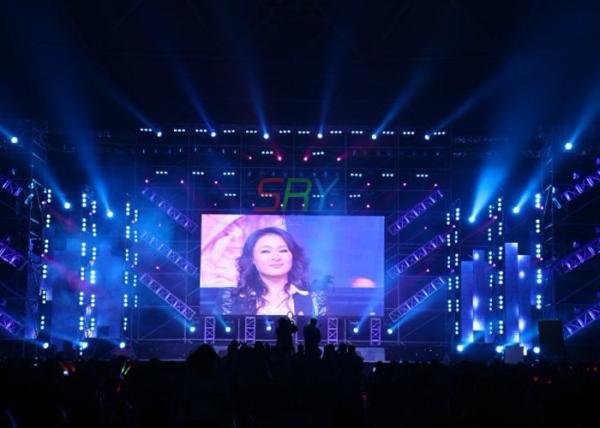

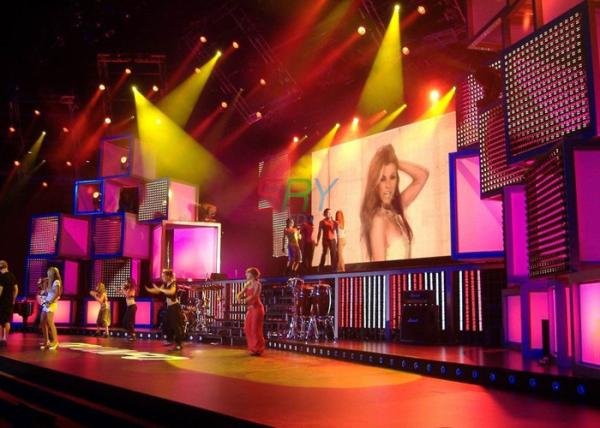

Application Pictures:

Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous

Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous

Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous

Outside Stage LED Screens High Brightness Waterproof LED display Asynchronous


Competitive Advantages:

1. Cabinet super light design

2. Cabinet super slim design

3. Seamless splice design


4. Energy saving design
