Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P10
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
580-750USD/sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Name :
Pixel pitch 10mm led screen
Pixel Pitch :
10mm
Module Size :
320mm x 160mm
Confirguration :
1R1G1B
Led Chip :
SMD3535
Leds Brand :
Nationstar
Drive IC :
MBI or JXI
Brightness :
7500cd/sqm
Cabinet size :
960mm x 960mm
Cabinet weight :
45KG
Description

High Brightness LED Advertising Screens Commercial SMD RGB LED Video Display

Description

1, Weatherproof design, completely outdoor use.

2, Easy for assembling and connection with the connector added.

3, High color uniformity and clear image can bring you a vivid audio visual effect.

4, Both front and rear access are available.

5, The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.

6, Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.

7, The maintenance of pixel and single led has been realized.

8, Good quality raw material, accurate technique and careful inspection insures the high quality of led display

Features

1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect.

2. Module surface flatness ± 0.2mm, the entire screen has good flatness.

3. High uniformity display color.

4. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate.

5. IP65 grade for high performance waterproof and dustproof capability.

6. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.

Competitive Advantages

1. Good Sevice , 24/7 online support service.


2. Good Quality For Every LED Display Product.


3. Good Price.


4. High Quality Driving IC .


5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.


6. Two Years Maintenance Service With Free.

Specification

Pixel Pitch

10mm

Pixel Density

10000dots/sqm

Color Configuration

1R1G1B

LED Package

SMD3535

Module Size

320mm x 160mm

Module Resolution

32dots x 16dots

Drive Mode

1/4 Scan, Constant Current

Standard Cabinet Size

960mm x 960mm

Cabinet Weight

45KG

Brightness

>6500cd/sqm

Viewing Distance

10m-100m

Viewing Angle

H: 120°; V:120°

Refresh Rate

2000HZ

Frame Rate

120frame/sec

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

800W/sqm

Ave. Power Consumption

250W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control PC

With DVI Graphic card

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Operating System

Win 98, Win2000, XP, Win7, Win8

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

Applications

Business Organizations

Supermarket, large-scale shopping malls, star-rated hotels, travel agencies

Financial Organizations

Banks, insurance companies, post offices, hospital, schools

Public Places

Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms

Entertainments

Movie theaters, clubs, stages

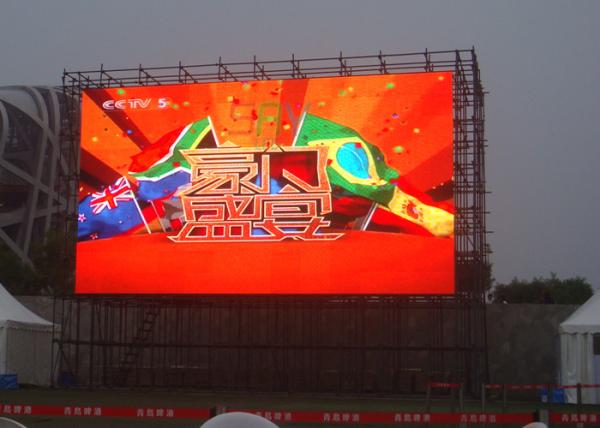

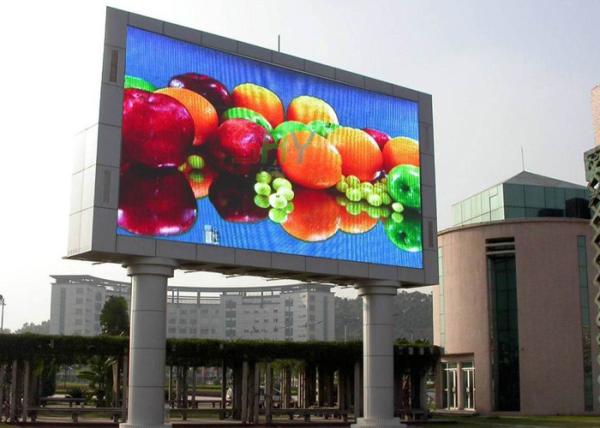

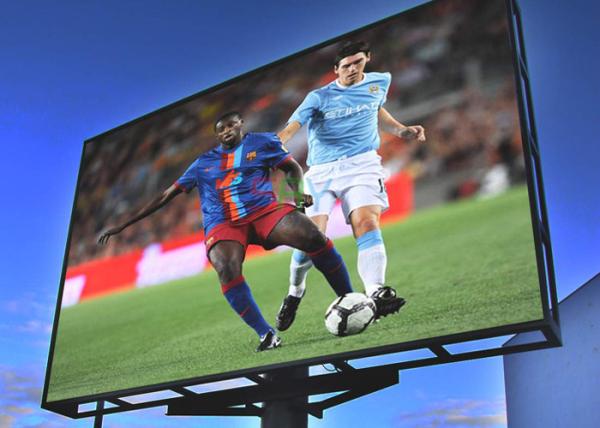

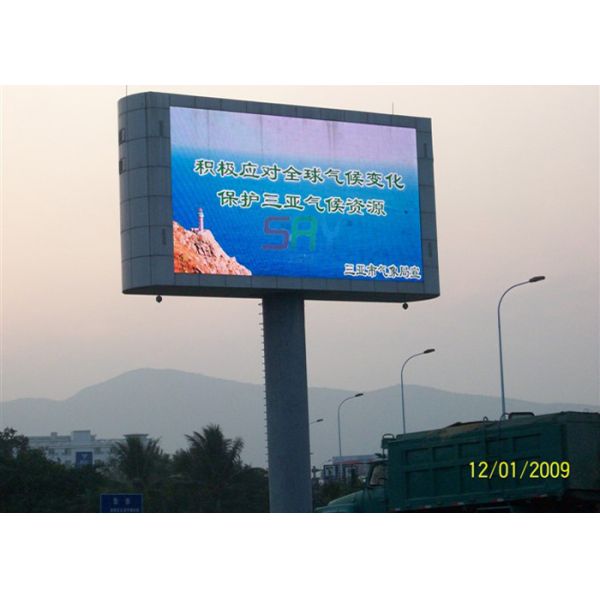

Product Images

High Brightness LED Advertising Screens Commercial SMD RGB LED Video Display

High Brightness LED Advertising Screens Commercial SMD RGB LED Video Display

High Brightness LED Advertising Screens Commercial SMD RGB LED Video Display
