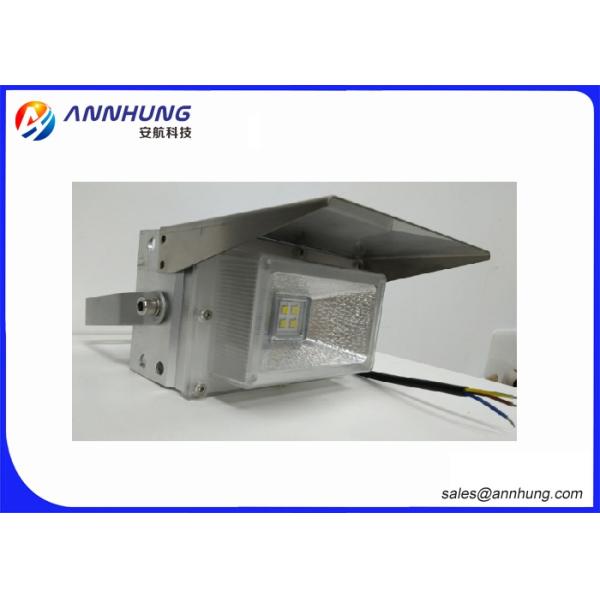

Steading Burning Illuminating Helipad Landing Lights , External Way FAA Flood Light
Steading Burning Illuminating Helipad Landing Lights , External Way FAA Flood Light
Steading Burning Illuminating Helipad Landing Lights , External Way FAA Flood Light
Steading Burning Illuminating Helipad Landing Lights , External Way FAA Flood Light
Steading Burning Illuminating Helipad Landing Lights , External Way FAA Flood Light
Steading Burning Illuminating Helipad Landing Lights , External Way FAA Flood Light
Specifications
Brand Name :
Annhung
Model Number :
AH-HP/F
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pieces per month
Delivery Time :
2-50 days
Packaging Details :
Plastic bag with Paper Carton
Type :
Helipad Landing Lights
Working voltage :
AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)
Light source :
LED
Connecting way :
External way
Working mode: :
Steady-burning way
Power consumption :
30W/60W/90W
Description

FAA Flood Light for Helipad Landing Steading Burning Illuminating

Heliport Flood Light is used for illuminate the whole heliport area at night.

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.9

FAA AC 150/5390-2B Heliport Design Guide

Features

Electrical

CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

Power supply available in AC(110-240VAC), DC48V

Visual angle of AH-HP/F Flood light is larger than 150. Light source efficiency is higher than 100Lm/W and service life is more than ten years.

Physical

Whole-seal aluminum shell, Protection standard is IP66


Product Application

Used in helipad, broadcasting, television, microwave, cellphone station, wall light, garden light and road light, etc

After-sales service

1. 2 years full warranty, 5 years maintenance since the purchasing date.

2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.

Product Descripton

SPECIFICATIONS AH-HP/F Heliport Flood Light
Light Characteristics
Light Source CREE Ultra high intensity LED
Emitting Color White

Luminous flux

 3600Lm/7200Lm/14500Lm
Beam angle(°) 120
Working mode Steady burning
Operation Mode 24hours operation
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage 110-240VAC, 48VDC, 24VDC or others
Power(W) 30W/60W/90W
Physical Characteristics
Body Material Aluminum alloy
Overall size(mm) 154×108×104(30W), 309×108×104(60W)
462×108×104(90W)
Installation size(mm) 125×Φ8(30W), 253×Φ8(60W),
380×Φ8(90W)
Weight(kg) 0.85kgs(30W), 2kgs(60W), 3kgs(90W)
Product Life Expectancy

Average 5 years
Waterproof IP66
Compliance
ICAO ICAO Annex 14 Volume ǁ Heliports 5.3
Options Available
Fragile coupling base

Packaging & Delivery

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.

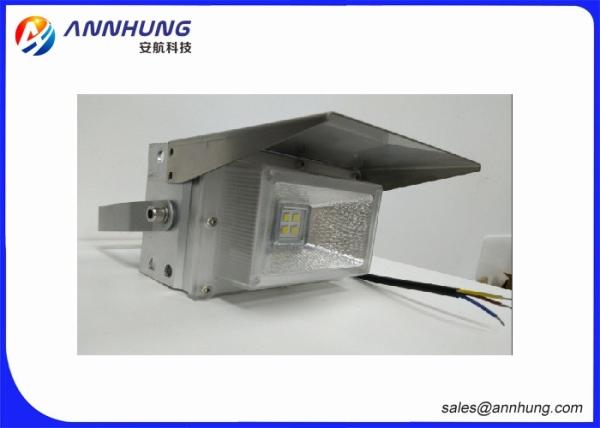

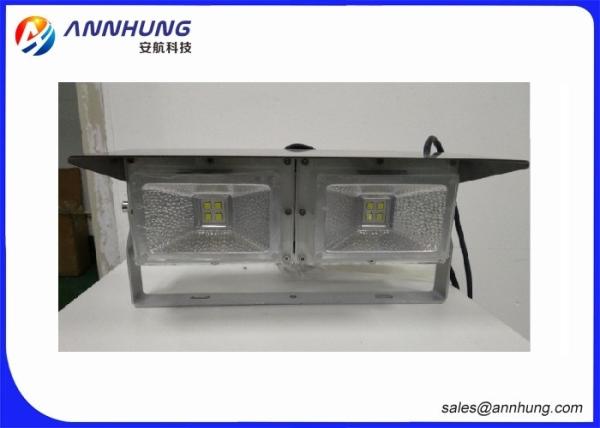

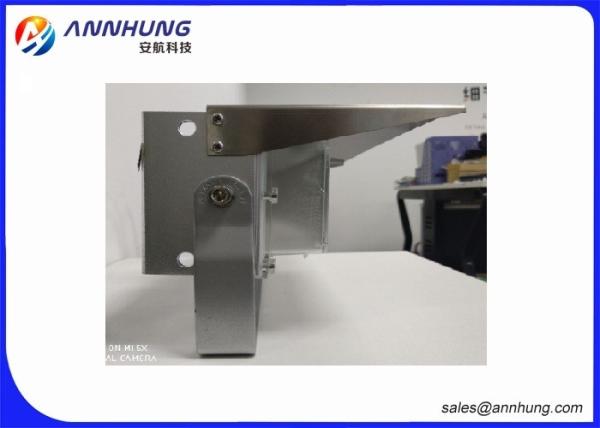

Product Picture

Steading Burning Illuminating Helipad Landing Lights , External Way FAA Flood Light

Steading Burning Illuminating Helipad Landing Lights , External Way FAA Flood Light
