3W Power Solar Obstruction Light Recyclable Batteries For Towers / High Building
3W Power Solar Obstruction Light Recyclable Batteries For Towers / High Building
3W Power Solar Obstruction Light Recyclable Batteries For Towers / High Building
3W Power Solar Obstruction Light Recyclable Batteries For Towers / High Building
Specifications
Brand Name :
Annhung
Model Number :
AH-LS/B
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pieces per month
Delivery Time :
2-50 days
Packaging Details :
Plastic bag with Paper Carton
Type :
LED Aviation Obstruction Lights
Input Voltage(V) :
DC6.4V(Solar powered Way),recyclable batteries with the lightest environmental and long life.
Lamp Power(W) :
3
Lamp Body Material :
die casting aluminum
Emitting Color :
Red
Working mode: :
Steady-burning mode or Flash mode(20-60times/minute)
Description

LED Low-intensity Solar Powered Aviation Obstruction light for Towers and High building

Standard : ICAO,FAA,MH-T 6012-1999 Aviation Obstruction Light Technical Standards for Airfield Area of Civil Airports International Standard and Construction of Airports

Details

1.Clean, renewable, green and reliable energy source
2.Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
3. At least 5 days autonomy (optional 20days).
4. Recyclable batteries with the lightest environmental.

5.Working mode: Steady-burning mode or Flash mode(20-60times/minute)
6.Light source:LED,100,000hours service life
7.Operating voltage:DC6.4V(Solar powered Way),recyclable batteries with the lightest environmental and long life.

8.Overall Size(mm): Φ220 by 233
9.Installation Size(mm): Φ190 by M10

FAims

To set the highest point and edge point of tall buildings for marking it to air traffic.

Product Application

-large-scale port machinery

-large engineer machinery

-wind turbines

-Tall Buildings

Product Descripton

Description Parameter
Intensity ≥32.5cd
Standard ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810
Light source LED
IP rating IP65
LED color aviation red
Working mode Steady-burning mode or Flash mode(20-60times/minute)
LED life-span ≥100,000h
Power rating 3W

Packaging & Delivery time

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.

Dimension Drawing

3W Power Solar Obstruction Light Recyclable Batteries For Towers / High Building

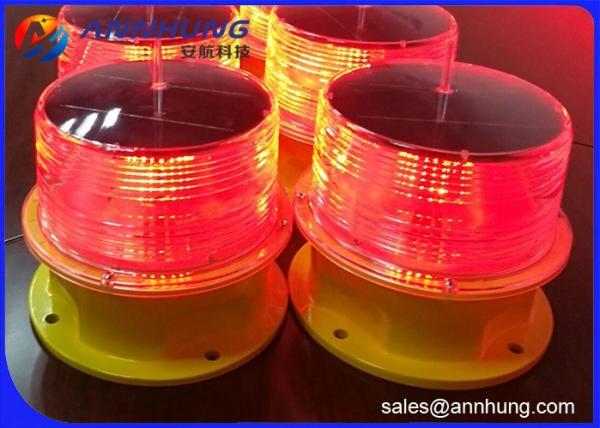

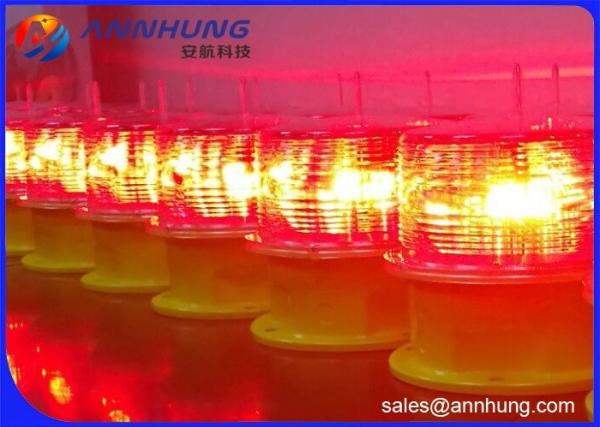

Product Picture

3W Power Solar Obstruction Light Recyclable Batteries For Towers / High Building

3W Power Solar Obstruction Light Recyclable Batteries For Towers / High Building

Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.


All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).

Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf
