Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard
Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard
Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard
Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard
Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard
Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard
Specifications
Brand Name :
Annhung
Model Number :
AH-MS/B
Certification :
CE,UL,RoHS, FDA
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pieces per month
Delivery Time :
2-50 days
Packaging Details :
Plastic bag with Paper Carton
Input Voltage(V) :
DC12V(Solar powered Way)
Lamp Power(W) :
20W
IP Rating :
IP67
Lamp Body Material :
die casting aluminum
Emitting Color :
Red
Working mode: :
Flash mode (20-60times/minute)
Description

Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard

Details

1. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
2. Low power consumption profession flash switch.
3. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4. Strong impact lamp shape with PC material.
5. Strong corrosion resistance and UV protection.

6.Overall Size(mm):260 by 260 by 440
7.Installation Size(mm):Φ 220 by M12
8. Weight: 7Kg
9.Emitting Color: Red
10.Ambient Temperature:-40℃~+60℃

Product Application

-High Chimney

-marking towers (Telecom, GSM, Microwave & TV)

-High-rise Building

-High Pole

-Tower Crane

-Wind Turbinebridge

-large-scale port machinery

Packaging & Delivery

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.

After-sales service

1. 2 years full warranty, 5 years maintenance since the purchasing date.

2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.

Product Descripton

Description Parameter
Standard ICAO (Aerodromes Annex 14) Medium-intensity Type B, FAA L-864
Light source LED
Emitting color aviation red
Working mode Flash mode (20-60times/minute)
Operating voltage DC12V(Solar powered Way),recyclable batteries with the lightest environmental and long life.
Sevice life ≥100,000h
Power rating 20W
Intensity 2,000cd ±25%
IP Protection IP67
Material Base:die casting aluminum , housing: PC

Dimension Drawing

Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard

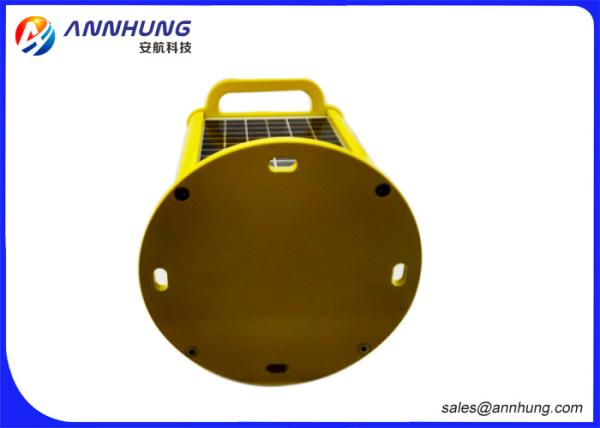

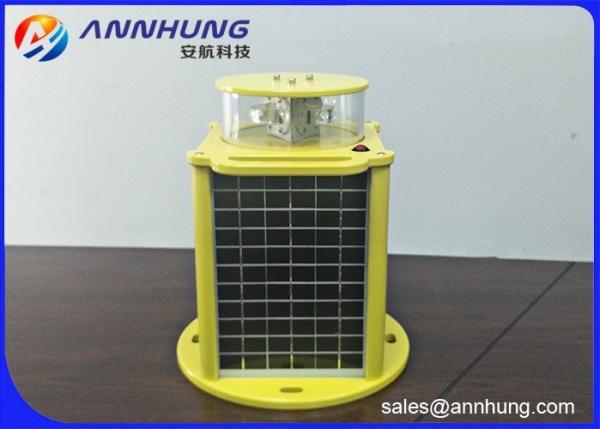

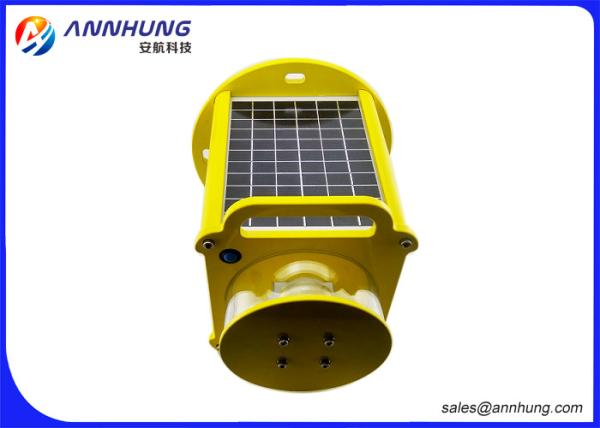

Product Picture

Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard

Red Solar Obstruction Light With Die Casting Aluminum ICAO FAA Standard
