ICAO Standard Low-intensity LED Aircraft Warning Light with Built-in Solar Panel

Application

AH-LS/B Low-intensity Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.

Details

1.Light source:LED,100,000hours service life
2.Operating voltage:DC6.4V(Solar powered Way),recyclable batteries with the lightest environmental and long life.

3. Material:

-Housing: PC

-Base: die casting aluminum

4.Autonomy(without sunlight):at least 5 days(Option 20days)

5.International advanced solar panel reaching more than 10 years service life.
6. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.

7.Built-in Solar Panel.
8. Strong anticorrosion, Rain and Snow, seismic resistance protection and UV protection.
9. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.

Main Parameter

1.Mode:AH-LS/B

2.Standard:ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810
3.Light intensity:≥32.5cd
4.Working mode: Steady-burning mode or Flash mode(20-60times/minute)

5.Power Consumption:3W
6.Overall Size(mm): Φ220 by 233
7.Installation Size(mm): Φ190 by M10
8.Weight:2Kg
9.Emitting Color: Red
10.Ambient Temperature:-40℃~+60℃

Product Descripton

Packaging & Delivery

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.

1. 2 years full warranty, 5 years maintenance since the purchasing date.

2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.

Dimension Drawing

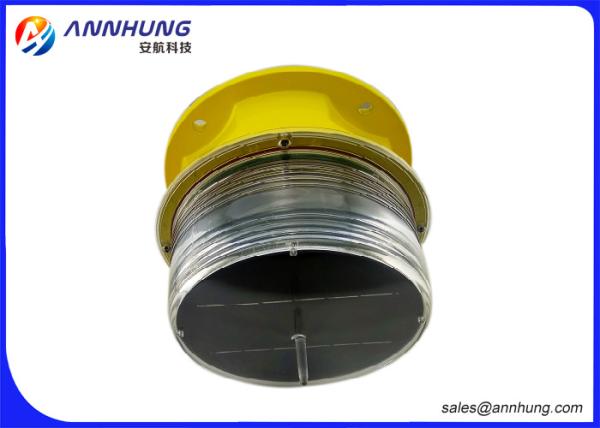

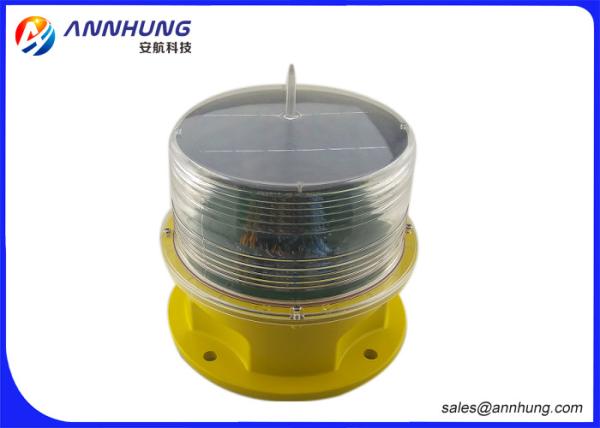

Product Picture
