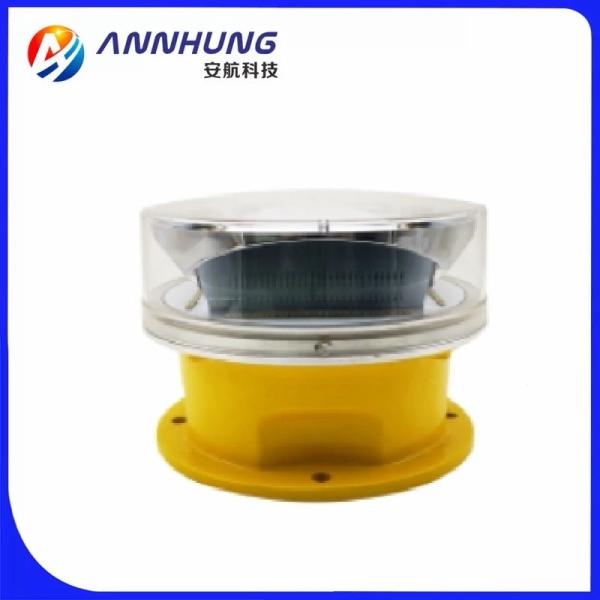

IP66 Waterproof LED Aviation Obstruction Light 20W Medium Intensity Type A L865
IP66 Waterproof LED Aviation Obstruction Light 20W Medium Intensity Type A L865
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-MI-A2
Certification :
ICAO, ISO9001, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
2000pcs per month
Delivery Time :
5-15days
Color :
White
Intensity(cd) :
≥20000cd (Daytime) ≥2000cd(Night)
Flash Characteristics :
20-60 flashes per minute(factory setting: 40fpm)
LED Life Experience(hours) :
>100,000
Operating Voltage :
DC(12V, 24V, 36V, 48V) or AC(110-240VAC)
Power(W) :
≤20W(40fpm)
Mounting :
190×190×θ12
Dimension(mm) :
229×229×168
Weight(kg) :
4
Product Life Expectancy :
5 years Plus
Waterproof :
IP66
Name :
LED Medium-intensity Type A L865 Aviation Obstruction Light
Description

This LED Medium-intensity Type A L865 Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105-150 meters.

Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.

Compliance

  • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light

  • FAA L-865

    Features

    Electrical

  • CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

  • Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)

    Physical

  • < >nique design and UV protected polycarbonate reflector for converging light

    UV protection Powder coated bright yellow color base make better visibility

  • Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

  • Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high

    System design

  • Built-in photocell for day/night operation(dusk to dawn operation)

  • Surge and lightning protection

    Optional

  • Dry contact Alarm output for remote monitoring

  • GPS synchronization

  • Infrared LED for pilot using NVG

    Application

  • AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is between 105-150 meters, and most time work with low intensity lights & medium intensity type B light installed on the lower place.

SPECIFICATIONS AH-MI-A2 LED Medium-intensity Type A L865 Aviation Obstruction Light
Light Characteristics
Light Source CREE high intensity LED
Available Colors White
Intensity(cd) ≥20000cd (Daytime)
≥2000cd(Night)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) 3
Flash Characteristics 20-60 flashes per minute(factory setting: 40fpm)
Operation Mode Dusk-to-dawn Automatically as standard.
24hours operation as option
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage DC(12V, 24V, 36V, 48V) or AC(110-240VAC)
Power(W) ≤20W(40fpm)
Circuit Protection Integrated
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 190×190×θ12
Dimension(mm) 229×229×168
Weight(kg)

4
Product Life Expectancy 5 years Plus
Environmental Factors
Humidity 0%-100%
Wind Speed 80m/s
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
Operations’ Seventh edition 2016, table 6.3
Medium-intensity Type A White Obstacle Light
FAA L-865
Options Available
GPS sync flashing
Infrared LED compatible for NVG (Night
Vision Goggles)
Dry contact alarm output
RS485 communication
Bird deterrent spike
