Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-LI-B2
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-15 work days
Packaging Details :
carton
Flash Characteristics :
Steady-burning
Available Colors :
Red
Working mode :
Main & stand by
Operation Mode :
Dusk-to-dawn Automatically as standard.
Mounting() :
3/4 inch pipe thread
Dimension(mm) :
254×90×210
Description

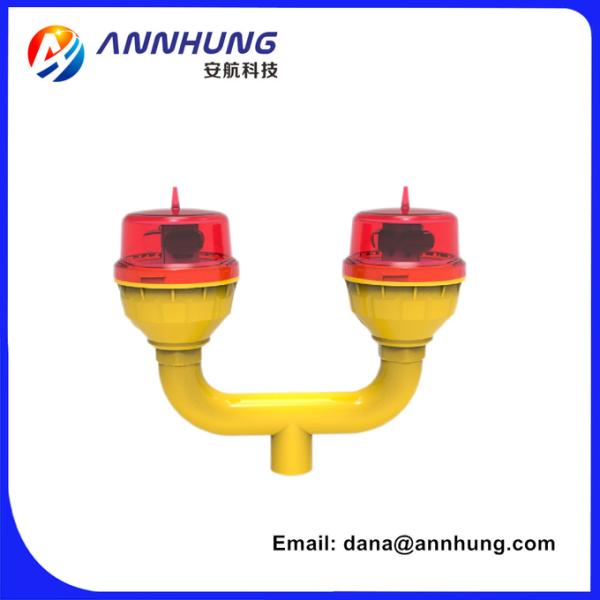

AH-LI-B2 LED Low-intensity L810 Double Aviation Obstruction Light
Application
AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
Main-standby mode ensure the obstacle is always marked even one light fail.
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B /E Obstruction Light
FAA L-810
Electrical
CREE LED, make sure LED keep bright while use for long time
Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC
Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency
High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
3/4inch thread hole make pole installation easy
System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
Steady/20FPM/30FPM/60FPM DIP switches on PCB
Main-standby mode, when the main light fail, the standby light automatically switch on to ensure the obstacle is always clearly marked.
Optional
Alarm contact output (Dry contact- NO COM NC), When power failed alarm generate & also when LED fails alarm generated
Solar power system
Description Parameter
Light Source LED
Flash Characteristics
Steady-burning/20/30/60 adjustable
Operation Mode
Dusk-to-dawn Automatically as standard.
LED Life Experience(hours) >100,000
Instantaneous power(W) 110-240VAC, 48VDC, or others
Power(W) 5
Mounting
3/4 inch pipe thread
Dimension(mm)
254×90×210
Weight(kg) 1.5
Ambient Temperature(℃) -55~70
Humidity 10%-95%RH(No condensation)
Wind Speed 240Km/h
Waterproof IP66
Options Available
GPS sync flashing



Led double obstruction light

Led red obstruction light

Building aviation warning light

Twin aviation obstruction light
