PC Shockproof IALA Solar Marine Lanterns GPS Sync Solar Aviation Light
PC Shockproof IALA Solar Marine Lanterns GPS Sync Solar Aviation Light
PC Shockproof IALA Solar Marine Lanterns GPS Sync Solar Aviation Light
PC Shockproof IALA Solar Marine Lanterns GPS Sync Solar Aviation Light
Specifications
Brand Name :
Annhung
Model Number :
AH-LS-C
Certification :
IALA, CE, ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000pieces for one month
Delivery Time :
7-15work days
Packaging Details :
Carton
Product Name :
Solar Powered Marine Lanterns
Light Source :
LED
Available Colors :
Red, Green, Yellow, White, Blue
Visible Range(NM) :
1-3NM
Horizontal Output(degrees) :
360
Flash Characteristics :
FL3S(0.2,2.8) (others are optional)
Operation Mode :
Dusk-to-dawn Automatically (Built-in photocell)
LED Life Experience(hours) :
>100,000
Battery type :
Lithium ion battery(Ni-MH is optional)
Humidity :
0~100%
Wind Speed :
80m/s
Weight(kg) :
1
Description

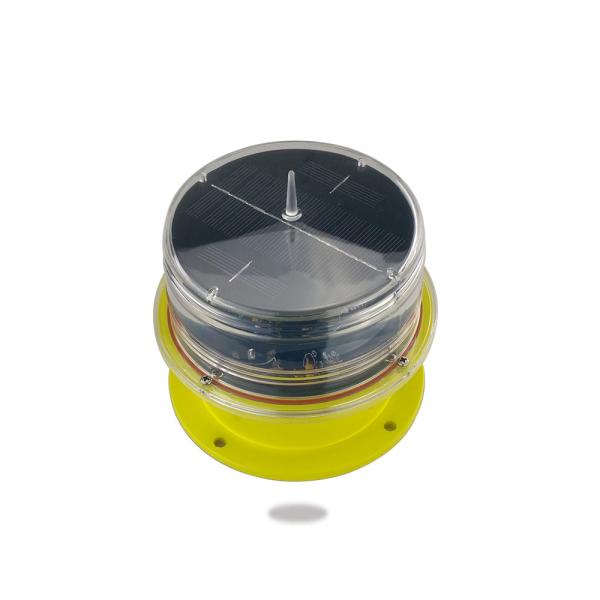

Factory Supply IALA Standard Solar Marine Lanterns 1 - 3 NM

This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.

Application

AH-LS-C Solar Marine Lantern is used on buoy, light house and any other off shore site.

Compliance

IALA E-200-1

Features

Electrical

Based on LED technology, and its color complies to IALA Recommendations E-200-1.

LED technology reduces maintenance time & costs

Physical

Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).

PC housing,UV resistance, shockproof and corrosion proof.

Bird deterrent spike

Powder coated die casting aluminum base

Built-in mono-crystalline silicon solar panel, conversion efficiency is better than poly-crystalline silicon

System design

Built-in photocell for day/night operation(dusk to dawn operation)

Flashing rate: 20FPM(Other flashes is optional)

ON/OFF button interface located under base

Optional

External battery charger

Flashing rate optional

IR Program

GPS sync flashing

IALA 366 light characters adjustable

PC Shockproof IALA Solar Marine Lanterns GPS Sync Solar Aviation Light

SPECIFICATIONS AH-LS-C LED Solar Powered Marine Lanterns
Light Characteristics
Light Source LED
Available Colors Red, Green, Yellow, White, Blue
Visible Range(NM) 1-3 (AT@0.74)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) 7
Flash Characteristics FL3S(0.2,2.8) (others are optional)
Operation Mode Dusk-to-dawn Automatically (Built-in photocell)
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage 3.7Vdc
Circuit Protection Integrated
Solar Characteristics
Solar Module Type Mono-crystalline Silicon
Output(watts) 1.8
Charging Regulation Microprocessor controlled
Battery Characteristics
Battery type Lithium ion battery
Nominal Voltage (V) 3.7
Battery Service Life Average 3 years
Autonomy (hours) Steady: 60 Flashing: 150(duty cycle:12%)
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting(mm)

140×140-4×M6
Dimension(mm) 162×162×160
Weight(kg) 1
Product Life Expectancy Average 5 years
Environmental Factors
Humidity 0~100%
Wind Speed 80m/s
Waterproof IP68
Compliance
IALA Signal colors complying to IALA E-200-1

Product datasheet download: download AH-LS-C LED Solar Powered Marine Lanterns...

Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.


All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).

Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf
