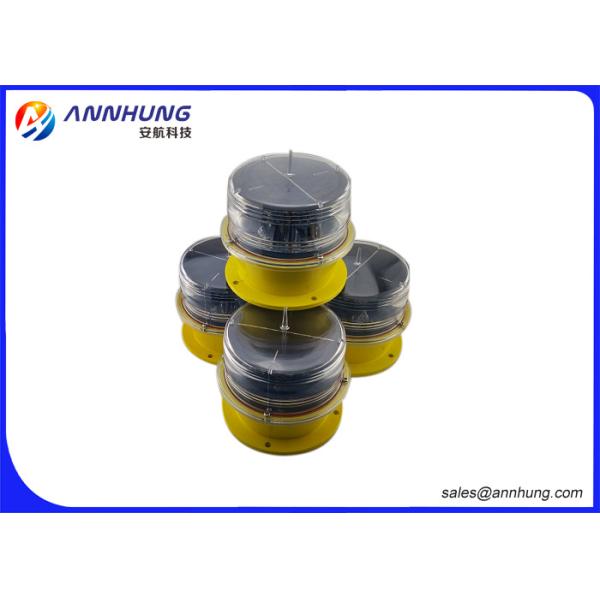

TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S
TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S
TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S
TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-SA-B
Certification :
ICAO CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
2000Pieces for one month
Delivery Time :
7-15 work days
Packaging Details :
carton
Available Colors :
Red, Green, Yellow, White, Blue
Intensity(cd) :
12cd
Horizontal Output(degrees) :
360
Vertical Divergence(degrees) :
≥8
Flash Characteristics :
Steady
Operation Mode :
24hours working after switched ON
Weight(kg) :
1
Description

FATO Taxiway lighting Runway edge lighting TLOF Solar Airfield Light

AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance,95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
ON/OFF button interface located under base
Optional
External battery charger for 110-240vac charging
Wireless remote control
NVG - compatible infrared (IR) LED
Installation bracket
Application
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting,
Portable or expedited airfield lighting, Threshold lighting
Helipad taxiway
Emergency operations
Description Parameter
Light Source LED
Available Colors
Red, Green, Yellow, White, Blue
Flash Characteristics Steady
LED Life Experience(hours) >100,000
Operation Mode
24hours working after switched ON
Lamb Body Material
Aluminum Alloy
Base Material
Powder-coated Die-casting aluminum
Weight(kg) 1
Product Life Expectancy ≥10 years
Storage temperature(℃) -55~70
Humidity 0~100%
Wind Speed 80m/s
Waterproof IP68
ICAO
Annex 14 Volume ǁ Heliports 5.3

Product datasheet download: download AH-SA-B Solar Airfied Light.pdf

TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S

Company Information

Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
