500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-AWS
Certification :
ICAO CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1000Pieces for one month
Delivery Time :
15-30 work days
Packaging Details :
carton
Diameter :
θ600mm (Other diameter is available if request)
Color :
Bright Orange , Red or White
Material :
Fiberglass reinforced polyester resin
Weight of Sphere :
6. 3Kg
Sphere thickness :
2. 3mm
Conductor size :
10mm- 35mm(others are customized)
Description
AH-AWS Aircraft Warning Sphere

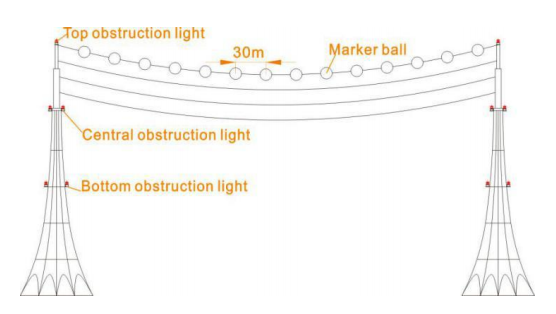

AH-AWS Aircraft Warning Sphere Designed to use for high-rise transmission lines, eg.110KV, 220KV, 500KV, Transmission cables, river-crossing transmission lines to provide the warning marks.
Compliance
ICAO (Aerodromes Annex 14)
Features
Diameter of Aircraft Warning Sphere: θ600mm (Other diameter is available if request)
Color: Bright Orange , Red or White
Material: Fiberglass reinforced polyester resin
Reflective efficiency: 0.34-0.8
Character of fiber glass:
- Tensile strength≥128Mpa
- Bending strength≥230Mpa
- Temperature resistant: -40℃~+90℃
Fastener: Aluminum material, M10 by 35, M10 by 40
There are rainwater drainage holes on sphere avoid the water stayinside the ball
The uniformity of the sphere thickness make sure it’s table under aeolian vibration
Weight of Sphere: 6. 3Kg
Armor rod: aluminium alloy, 800mm
Material of bolts nuts & washer: stainless steel
Sphere thickness: 2. 3mm
Conductor size: 10mm- 35mm(others are customized)
500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
