High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display
High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display
High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display
High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display
High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display
High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display
Specifications
Brand Name :
CW
Model Number :
P4-8S
Certification :
CE
Place of Origin :
MADE IN CHINA
MOQ :
1sqm
Price :
Quotation will be provided upon inquiry.
Payment Terms :
T/T, Western Union
Supply Ability :
2000sqms per month
Delivery Time :
7-15 work days (Depends on Order quantity)
Packaging Details :
Flight case
Module size :
256mm*128mm
Cabinet size :
512*512mm
Tube Chip Color :
Full Color
Cabinet Material :
Die-casting Aluminum
Pixel resolution :
62500 dots/m2
Net Weight :
10kg
Flight Case(8in1) :
Size:92*75*60cm; G.W.:115kg
Description

High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display​

TECHNICAL PARAMETERS

Unit Module Item Parameter
Model Number P4-8S
Module size 256mm*128mm
Cabinet size 512mm*512mm
Pixel pitch 4mm
Pixels Density 62500 dots/m2
Pixel configuration 1R1G1B
Package mode SMD2727
Pixel resolution 64dots(W)*32 dots(H)
Drive type Constant drive
Scan mode 1/8 scan
Port type HUB75
Brightness of white balance ≥7500cd/m2
PCB 2.0mm
IP rate 66
Input Voltage AC220V/110V,50HZ/60HZ (±10%)
Output Voltage 5V,60A
Best Viewing Distance 5-6m
Refresh rate 2000Hz
Grey scale levels R(256bit) x G(256bit) x B(256bit)
Display Colors R(1024) x G(1024) x B(1024)
Working Temperature -20~50℃/10~90%RH
Malfunction dot rate < 0.0001
Life-span 100,000 hours
Warranty 2 years
Net weight 10kg
Package Flight Case(8in1) size: 92*75*60cm; G.W.:115kg

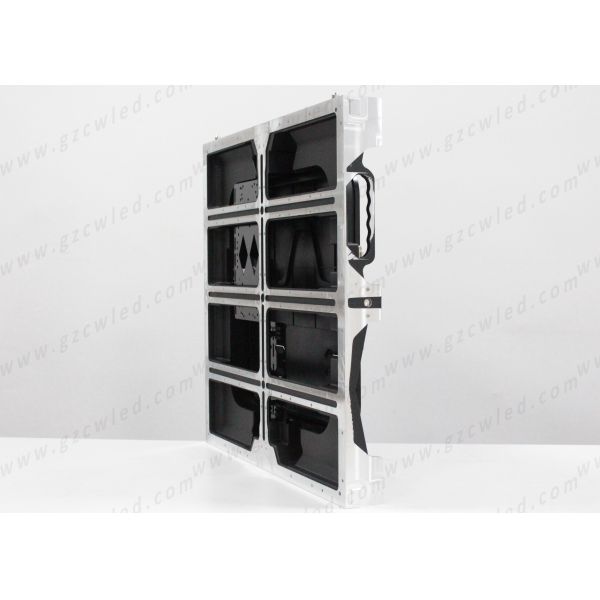

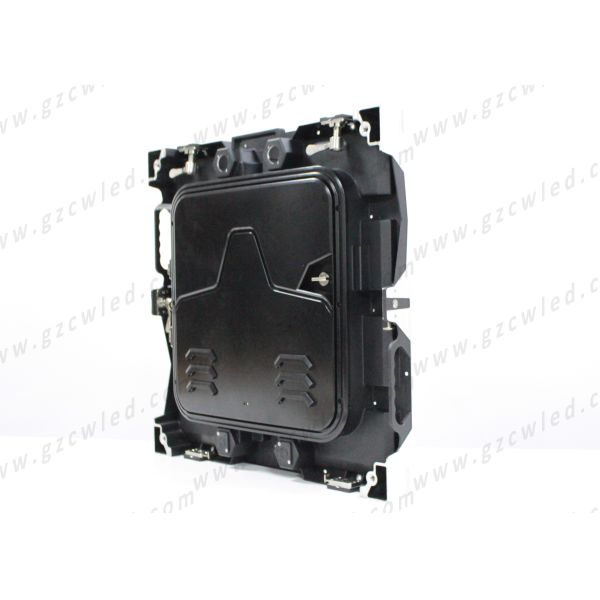

Product Show


High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display

High Resolution Outdoor Rental P4 512*512mm Led Wall Panel SMD Full Color Display

Our Service

1.Reply your inquiry within 24 working hours.
2. Well-trained, experienced staffs answer all your questions.
3.Can offer technique sharing with you by videos or photos.
4.Special discount are offered based on order quantity.
5.Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
6.Your sales area, design and all your private information will be protected.

FAQ

Q1. Are you a factory or trading company?
A:We are a factory.

Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3. What about the lead time?
A:Sample needs 3-5 days, mass production time needs more than 1-2 weeks

Q4. What's the shipping way, shipping time?
A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.

Q5. How to place an order?
A: Please send us your purchase order by Email, Fax, Skype, Whats App, Facebook or making a call, and we will send you PI as your approval. Please let us know the following information for your order.

  • Product information: Quantity, Specification (Item , logo and Packing requirement)
  • Delivery time required
  • Shipping information: Company name, Detailed shipping address with zip code and Phone number.


Q6. Can I use my own forwarder to transport the products for me?
A: Yes, of course you ca use your own forwarder. If you have your own forwarder in Guangzhou area, we can contact him to arrange the shipment without extra delivery cost from you.


Q7. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
