Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves
Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves
Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves
Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves
Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves
Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves
Specifications
Brand Name :
Cheng Wen
Model Number :
CW-W3615
Certification :
CE , RoHs
Place of Origin :
Guangzhou , China
MOQ :
1-2 PCS
Price :
Quotation will be provided upon inquiry.
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000PCS
Delivery Time :
3-5 Days
Packaging Details :
12 in 1 carton or 16 in 1 flight case
Light Source: :
LED, 36pcs 15w 6in1 RGBWA+ UV LED
Item Type :
Wall Washers
Input Voltage(V): :
100-240V
Lamp Power(W): :
540W
Signal Connector: :
DMX in&out
Housing: :
Silver OR Black Aluminium Alloy
Description

IP65 Outdoor Waterproof Slim Bar PRO LED Wash 6in1 RGBWA + UV 36pcs 15W DMX Linear LED Wall Washer Light

Product Specifications

  • Voltage: 100-240 VAC, 50-60 Hz (auto-ranging)
  • Power: 540W
  • DMX Channels: 10CH
  • Light Source: 36*15W RGBWAUV+6in1 LEDs,100,000 hours life expectancy
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: 25°(15/45/60°optional)
  • Housing: Silver OR Black aluminum housing
  • Color Temperature (range): 2000 to 10000 K
  • Data Connectors: 3-pin XLR(5-pin optional)
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 Gore® valve
  • Power Cable Length: 1.5m total(0.75m input+0.75m output),customer designed optional
  • Single Line Length: 1.5m total(0.75m input+0.75m output),customer designed optional
  • Weight: 6kg

DMX Channel

CH Values Function
CH1 0-255 Total Dimming
CH2 0-255 Total Strobe Speed
CH3 0-50 Operate Dimming Modes
51-100 Jump Change
101-150 Gradual Change
151-200 Pulse Change
201-225 Sound Active
CH4 0-255 Function Speed
CH5 0-255 Red Dimming
CH6 0-255 Green Dimming
CH7 0-255 Blue Dimming
CH8 0-255 White Dimming
CH9 0-255 Yellow(Amber) Dimming
CH10 0-255 UV Dimming

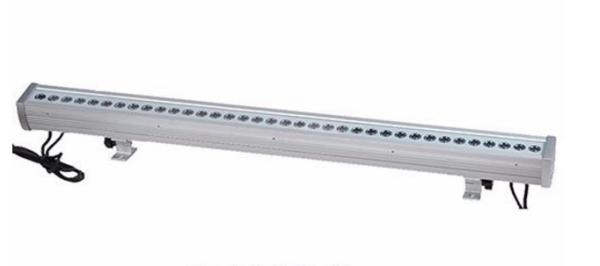

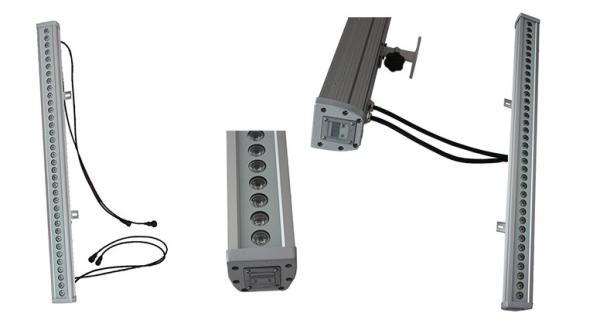

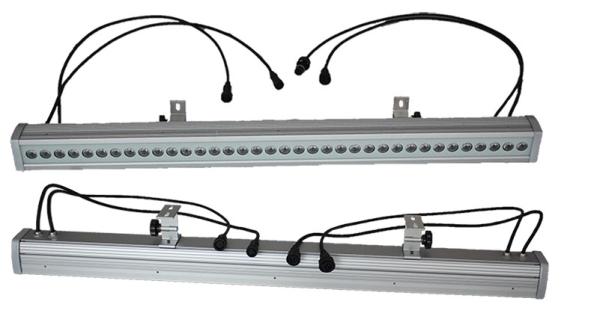

Pictures Show

Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves

Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves

Waterproof Slim Bar PRO LED Linear Wall Washer Lighting With Smooth Dimming Curves

Product Features

  • Built-in auto and custom programs recalled via DMX and Master/Slave
  • RGBWA+UV color mixing via DMX or manually
  • Color temperature presets, from 2000K to 10000K
  • 3-pin DMX input/output connections(5-pin optional)
  • 16-bit dimming of master dimmer and individual colors
  • Selectable, smooth dimming curves for programming versatility
  • LED display with password protection
  • IP66 rated for outdoor water and dust protection
  • Simple and complex DMX channel profiles for programming versatility
  • Double-bracket yoke doubles as floor stand
  • RGBWA+UV 6in1 LEDs

Our Service

1. Reply your inquiry in 10 hours

2. Well-trained and experienced staff will answer all your questions timely

3. Customized design is available, OEM & ODM are welcomed

4. Deliver the goods to customers all over the world with speed and precision

5. Offer customer lowest price with high quality stage lighting products

FAQ:

Q: Are we a factory or Trading company?
A: We are a facory.
Q:Do you offer a sample?
A:Yes, we do. The samples cost will be charged firstly but it will be refund in your
mass order.
Q: What is the delivery time?
A: Usually : Sample order ---in about 3-15days.
20" container----In about 20-30days
40" container----in about 25-45days
Q: How can I order?
A: After the quotation confirmed , ther proforma invoice will be made for you to confirm and make the deposit.
Q:What kind of services do you offer?
A:We supply ODM, OEM service and also welcome you become one of our products agent
below "bluesea" brand.
Q:What is the payment terms?
A:TT, Western Union or Paypal( 30% -50% deposit ,balance before shipping )
Q: How can I inspect the goods?
A: Ask your inspection agent to check or we give you a test report by our QC with photos.
Q: What is your after-service?
A: Usually 2 year warranty, during this period, we will provide you spare parts for free.
