Specifications
Brand Name :
CHENG WEN
Model Number :
Outdoor P6
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 Square Meter
Price :
USD Dollars
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200 Square Meters
Delivery Time :
7-9 Days
Packaging Details :
Flight Case or Wooden Case
LED Module :
192mm*192mm
Pixel Pitch :
Outdoor P6
LED Cabinet :
576mm*576mm
Pixel Density :
27777 dots/m ²
Pixel Resolution :
32dots(W)* 32 dots(H)
Scan Mode :
1/8 Scan
Package Mode :
SMD 1921
Refresh Fluency :
1920Hz
Package :
SMD 3535
Description

Product Description

Pixel pitch 6 (mm)
Pixel configuration 1R1G1B 3in1
Pixel density 27777 pixels/sq.m.
Brightness ≥5000cd/m²
Weight 25-30kg/sqm
Module pixel 32*32dots
Module dimensions (W×H) 192*192 (mm)
Module dimensions (W×H) 7.7*7.7(Inch)
Cabinet Resolution 160*160dot
Cabinet dimension 960*960mm
Refresh rate ≥2000 Hz
Gray scale 65536
Colors 281 trillion
Viewing angle (H/V) 120/80 (deg)
IP rating (Front/Rear) IP65/IP54
Power consumption (max/avg) 600/300 (W/sq.m.)
Drive mode 1/4 constant current static
Input voltage (AC) 100V ~ 240V
Operating temperature -20°C ~+ 40°C
Operating humidity 10% ~ 85%
Source compatibility (with video processor) VGA, DVI, HDMI, SDI
Control distance Network Cable≤100m, Multimode optical fiber≤500m, Single mode optical fiber≤20 kilomete

Application of LED Screen

LED Lamppost Screen is installed on the road poles on the display, suitable for highways, streets on both sides of the road, shopping malls on the road poles installed. Lamppost screen appears, mainly to replace the market light pole light box advertising.

1, Multiple delivery
Currently on the market light box advertising, double-sided advertising, can discharge up to two ads, and customer groups to change a few months, the number of ads placed limited, and Lamppost screen can be unlimited advertising emissions, and Lamppost screen can be placed at the same time dozens of ads, so that the utilization of light pole advertising on the corresponding increase.

2, The video playback effect is good
Relative light box advertising advertising, Lamppost screen can display dynamic video ads, from the delivery of the form is also more attractive. In contrast, there are stories of dynamic advertising story, no matter whether there is no one to see, as long as the broadcast, there will always be concerned about. And static advertising is a picture, one or two words often can not express the meaning of a good expression, so that the eye can attract less, especially in the hurry of the road, the audience glimpse, may also Did not have time to pay attention to the existence of advertising. Therefore, compared to the advantages of outdoor street poles LED display is obviou

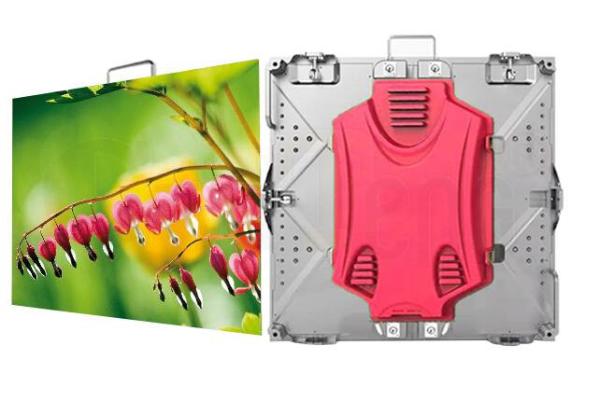

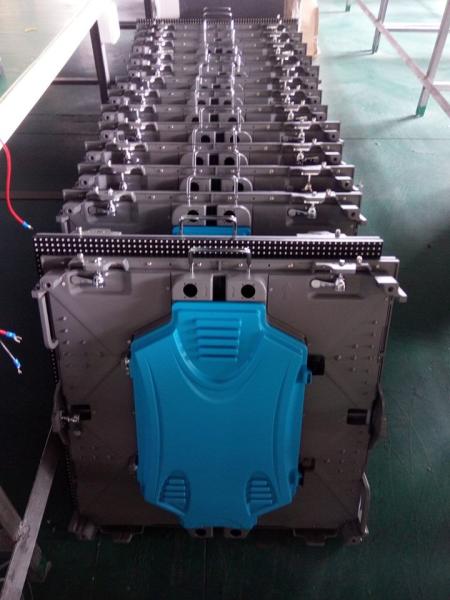

Product Images


Extra Solid Outdoor Led Video Display , SMD Led Display Board For AdvertisingExtra Solid Outdoor Led Video Display , SMD Led Display Board For Advertising






Extra Solid Outdoor Led Video Display , SMD Led Display Board For Advertising

Payment Terms


1.All product have two years warranty, we take all cost during warranty.
30percent deposit will be paid before produce.
and the balance will be paid before shipping.

2.How to payment?
You can transfer payment by TT,West union, recommand Alibaba Trade Assurance.

Our Service


1.We provide the best service to our every clients. before the order,send all the information to our clients. to help him make the decision. include the size. color. pictures,pack way and shipping way.

2.During the order, we need update the orders and feedback to him. keep him update with his order. such as how is his order,when will be finished,and also take the aging test pictures for his reference. at the same time. provide the packing pictures .after the goods delivery out. provide the tracking number. so that the clients can track his goods at any time.

3.The after-sale service: provide the one year warranty.during this year.the clients can obtain maintain service in free. and also will provide some accessories to the customers.

4.Some products we can provide the certifications. such as CE certification. UL

FAQ

1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
other choose P3.91/P4/P4.81/P5/P6/P8/P10.

If you need to know more details about smd outdoor P5 rental led board display advertising or our other products, please send inquiry to us . You also can talk to me via WhatsApp +86-132-2679-6065 or Email:gzcsled05@163.com.
Have a nice day!
