Part A: Product Features
1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2) Good heat emission, water proof and stable performance
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting
signal
4) High resolution and definition of screen image, clear and non-flash screen image.
5) Supports video and radio frequency input, special structure can be freely assembled.
Part B: Specification
item | Technical Specification |
Pixel | Pixel pitch: 6mm |
Pixel configuration: 1R1G1B | |
Brightness: Red: 600mcd Green: 2300mcd Blue: 500mcd | |
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm | |
Module | Module size: 192mmx192mm |
Module resolution:32x32pixels | |
Cabinet | Cabinet resolution:16384 pixels |
Cabinet material: Steel | |
Gross weight: 20kg | |
Module quantity: 16pcs= 4(w) x 4(h) | |
Cabinet size: 768mm×768mm×100mm | |
Power consumption : Max.:1000W/m² Average: 400W/m² | |
Screen parameter | Drive method: 1/16 scan |
Brightness: 1800cd/m² | |
IC driver: MBI 5024 | |
Density: 27777pixel/m² | |
Whole display flatness: ≤ 1mm juncture | |
Best view distance: ≥ 3m | |
Viewing angle: Horizontal: 120° Vertical: 120° | |
Humidity(RH): ≤ 90~95% | |
Working temperature: from -20°C~ +50°C | |
Working voltage: AC220V/110V±20% | |
Refresh frequency: ≥ 300Hz(Linsn) | |
Frame rate: ≥ 540Hz | |
Protection grade: IP54 | |
MTBF: More than 10000hrs | |
Life time: 100,000 hrs | |
Control system | Control system: Linsn |
Signal interface: DVI | |
Communication distance: The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
Systems operating platforms :XP,WINDOWS(WIN95,WIN98,WIN2000) | |
Input Signal:RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
Image adjustment:contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc | |
Life span:100,000 hours | |
Out-of Control rate:0.0001 | |
Control system:Synchronized | |
Operating Environment Temperature :-20℃—65℃ Optional |
Part C: Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Part D: Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Part E: Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course,
1) Guidance service: We can guide on line if customers have questions about the installation and usage. For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, our company will be responsible for the equipment. If there is any failure in product quality, our company will maintain and change the components for free. After Maintenance period, only charge the material costs fees free of manual work fees.
Outdoor LED Display series :
1.Automatic brightness control,super processing ability,strong colour restoration.
2.Support various interfaces and signal sources.
3.Advanced digital control technology, excellent effect.
4.High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5.Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, HJY outdoor led display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.
Indoor LED Display series :
The indoor uses high-quality LED, which has high efficiency luminescence,decreased attenuation of brightness,high stability and reliability. Super uniformity in color. Low-budget, high pixel density,more vivid and stable pictures(No Flickering). The ultra-slim and ultra-light weight structure of indoor full color led display ,increased design opportunities and lower transportation costs. SMD technology takes super wide viewing angle for the LED display; better color performance,higher contrast ratio and higher refresh rate. The super thin rental indoor led display features low weight,special rigging system for simplified service,hassle-free mounting, easy configuration and maintenance,and several other enhancements that are unmatched in the industry.
Packaging & Shipping
1.Package: Our goods are packed with wooden case, flight case or according customer's request
2.Delivery Time: Within 15-25 days after receiving deposit.
3.Shipping Way: By air or by sea.

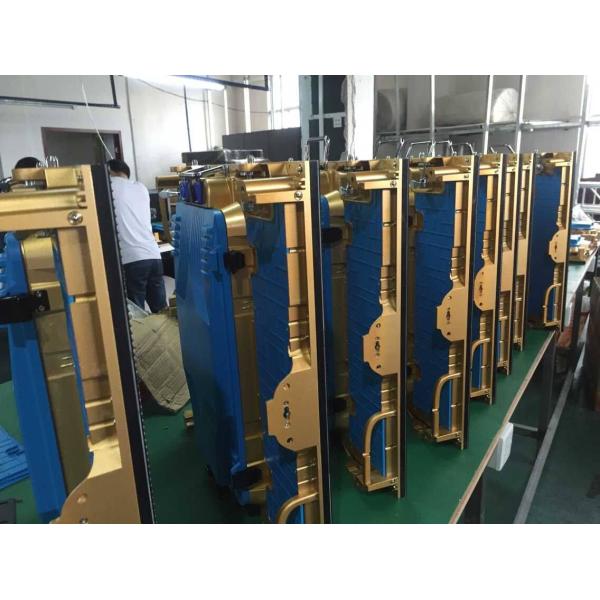

Product Pictures
Our company owns a group of high-quality professional and technical personnel and advanced modern sophisticated production equipment. We implement strict quality management, making every LED module,LED display cabinet,LED display into competitive products. Our products have passed European CE& American FCC Certificates. Several items reach the international advanced level in the similar products. Rely on raw materials suppliers and distributors who is from domestic and orverseas as well as ourselves are build strategic alliances advantages,fully realized resource sharing,share out the work and cooperate,complement each other's strengths and efficient cooperation. Nowadays, we are specilized in LED Display, which widely in industries of advertisement, pub, airport, station, harbor, gym, banks, school, factory, post office, department store, hospital, revenue office, customer, supervising centre, etc. All the products are exported to America, Russia, Great Britain, France, Austrilia, Greece, Italy, Japan, South Korea, Taiwan, Kazakhstan, etc.
Depending on abundant fund, professional strength and stable quality , we support fast & thorough service and the most competitive products to each of our clients. Our company have clear high quality positioning,trying our best to improve technology,making neck and neck of international advanced management to provide service for clients all over the world.
FAQ
Q1: Do you have other indoor LED display series?
A: Yes. We also provide 2.5, 3, 4, 5, 6, 7.62, 10,12.5,16...
Q2:Do you have other outdoor series?
A:Yes.We also provide ourdoor LED display series: 6, 8, 10, 16,20...
Q3: I have special requiests?
A: We will do our best to make the best solution for you.
Q4: I want to know more?
A: Contact us right now is the fastest way.
