4inch 36W Quad Row Off road Led Light Bar With Unbreakable Lens Sealed Die Cast Aluminum Housing
4inch 36W Quad Row Off road Led Light Bar With Unbreakable Lens Sealed Die Cast Aluminum Housing
Specifications
Brand Name :
Prima Or Unbranded
Model Number :
PR-F1036
Certification :
Ce, RoHs, IP67, Emark, EMC
Place of Origin :
China
MOQ :
1 carton
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000pcs per day
Delivery Time :
1-15 work days upon the quantity
Packaging Details :
Kraftpaper box
Product Name :
4" 36W Quad Row Led Light Bar
Led Type :
12pcs 3W Cree
Work Voltage :
DC 9V- 32V Fit 12V 24V Vehicles
Work Teperature :
-40℃-80℃
Color Teperature :
Cool White 6000K
Housing :
Die cast Aluminum Housing
Lens :
Abrasion Resistant PC
Mount Bracket :
adjustable single-bolt mounting bracket
Size :
4inch
Beam Angel :
Spot / Flood
Life Span :
Over 50000hrs
Waterproof :
IP67
Warranty :
Lifetime
After Service :
Lifetime
Description

4inch 36W Quad Row Off road Led Light Bar With Unbreakable Lens Sealed Die Cast Aluminum Housing


1. Product Parameters

Product Name 4inch 36W Quad Row Offroad Led Light Bar
Item No. PR-F1036
Led Power: 36W
Led Type: 12pcs High Intensity 3 watt Cree Leds
Lens material Hard Polycarbonate (PC)
Mounting Bracket adjustable single-bolt mounting bracket
Operating voltage DC 10V-30V Fits 12V 24V Vehicles
Waterproof rate IP 67
Beam Type Flood beam Spot beam
Lumen 3240lm
Color Temperature Cool White 6000K
Size 4inch
Lifespan Over 50000Hrs
Working Temperature -40℃-80℃
Technical Support Lifetime
After- Service Lifetime
Warranty Lifetime

2. Product Features:

1) Lifetime Warranty On all led work lights and off road light bars

2) This LED light bar is great for off-road driving lights, daytime running lights, or fog lights on your truck, ATV, or UTV and can also be used for industrial lighting, marine lighting, and tractor lighting.

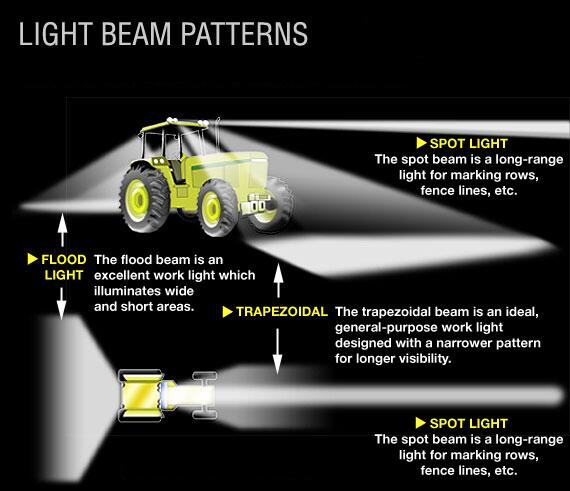

3) The 4" work light bar has 12 powerful Cree LEDs in a quad row design that produce up to 3240 lumens of cool white light. LEDs emit a 30° narrow spot beam pattern and a 60° wide flood beam pattern for long- or short-range illumination. Spot and flood beam patterns can be individually activated or combined for maximum light intensity and spread.

4) The durable LED work light is waterproof and shock resistant.

5) A black-painted aluminum housing and polycarbonate lens protect internal components, and an integral heat sink allows LEDs to run cool, which leads to an incredibly long life span.

6) The light has an adjustable single-bolt mounting bracket and operates within a wide 9-32V DC range

4inch 36W Quad Row Off road Led Light Bar With Unbreakable Lens Sealed Die Cast Aluminum Housing

3. Same Series Details:

Item No. Size Watt Light Beam LED Type Work Voltage Color Lumens
PR-F1036 4" 36W Spot 12PCS 3W CREE DC 9V-32V 6000K 3240lm
PR-F1072 6.6" 72W Spot/Flood 24PCS 3W CREE DC 9V-32V 6000K 6480lm
PR-F10108 9.3" 108W Spot/Flood/Combo 36PCS 3W CREE DC 9V-32V 6000K 9720lm
PR-F10144 12" 144W Spot/Flood/Combo 48PCS 3W CREE DC 9V-32V 6000K 12960lm
PR-F10180 15" 180W Spot/Flood/Combo 60PCS 3W CREE DC 9V-32V 6000K 16200lm
PR-F10216 17" 216W Spot/Flood/Combo 72PCS 3W CREE DC 9V-32V 6000K 19440lm
PR-F10252 20" 252W Spot/Flood/Combo 84PCS 3W CREE DC 9V-32V 6000K 22680lm
PR-F10288 23" 288W Spot/Flood/Combo 96PCS 3W CREE DC 9V-32V 6000K 25920lm
PR-F10324 25.5" 324W Spot/Flood/Combo 108PCS 3W CREE DC 9V-32V 6000K 29160lm
PR-F10360 28" 360W Spot/Flood/Combo 120PCS 3W CREE DC 9V-32V 6000K 32400lm

4. Product Applications:

Off road vehicle LED lighting
Daytime running lights
Industrial lighting
Emergency & Rescue LED Lights
ATV, UTV, & Golf cart lights
Boat & marine LED lighting
Agriculture LED lighting
Dune Buggy Lights
Heavy equipment lights
Tractor lighting

4inch 36W Quad Row Off road Led Light Bar With Unbreakable Lens Sealed Die Cast Aluminum Housing

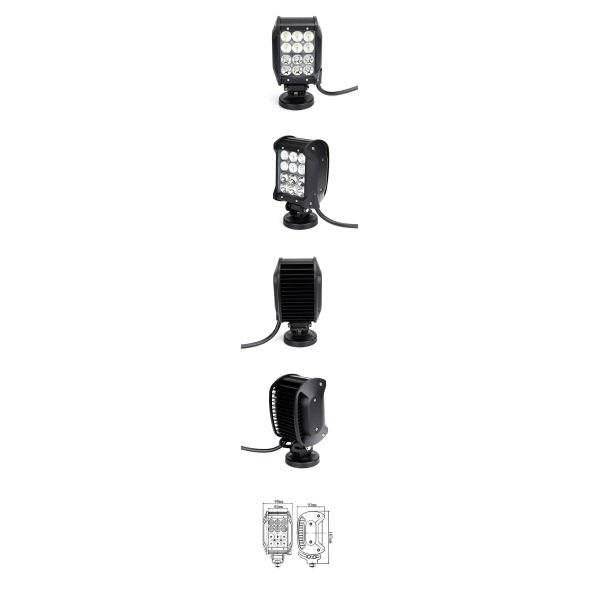

5. 36W Quad Row Led Light Bar Display:

4inch 36W Quad Row Off road Led Light Bar With Unbreakable Lens Sealed Die Cast Aluminum Housing
