50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
50000 Hours Downlight 2.8v 3.2V 0.2W 120lm SMD LED Chip
Specifications
Brand Name :
XUANCAI
Model Number :
SMD 2835
Certification :
CE ROHS LM-80
Place of Origin :
China
MOQ :
4000 PCS
Price :
$0.0025-$ 0.001/ PCS
Payment Terms :
T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :
30000000 PCS/ Month
Delivery Time :
4-7 days
Packaging Details :
Blister box packaging
Model :
SMD 2835
Power :
0.2W
Current :
60mA
Voltage :
2.8-3.2V
Luminous Flux :
26-28LM
Chip Brand :
Sanan
Wire :
Pure gold wire
Viewing Angle :
120 degree
Spanlife :
50,000 Hours
Warranty :
3 Years
Description

Hot Selling 0.2W, 0.5W, 1W 2835 smd led chip good Quality High LM 120-130lm CE ROHS 3 Years' Warranty for Downlight

Product Parameters

Product Information
Item
 SMD 2835
Watt
0.2w
Current
 60mA
Voltage
2.8-3.2 V
Color Temperature
 3000k / 4000k / 6000k
Chip Brand
Sanan
Quantity/ Reel
4000pcs
Life Span
50000 hours
Luminous 26-28LM

Features

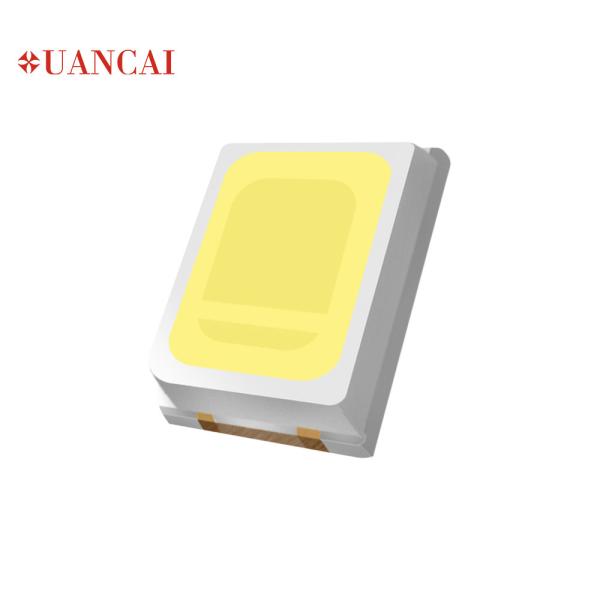

1. Package size: 4.0(L)*1.45(W)*0.65(T)mm

2. Silicone Packed

3. Suitable for different working environment

4. Anti UV

5. White colors are available in (2600K-7000K)

6. Wide viewing angle

Applications

1. Indoor lighting: Fluorescent lamp, tube

2. Commercial illumination and displays: Adversing words, light box

3. Decorative lighting: Light strip

4. Automative Interior auxillary lighting

5. Other illumination and displays

　　　　　　　　　　　　　

Absolute Maximum Ratings (At TA=25℃)

Parameter

Symbol

Rating

Unit
Forward Current　 IF 60 mA
Peak Pulsed forward current IFP 120 mA
Operating ambient temperature Topr -40 to +85 ℃
Storage Temperature Tstg -40 to +85 ℃
Junction Temperature　 Tj 115 ℃
ESD (HBM)　 / 1000 V
Power Dissipation Pd 200 mW

Electro-Optical Characteristics (Ta=25℃)

Parameter

Symbol

Conditions

Min.

Typ.

Max.

Unit

Viewing angle

℃

 2θ1/2 IF=60mA -- 120 -- deg
Thermal Resistance ( Junction to solder point Rthj-s IF=60mA -- 50 -- ℃/W

Tapping specifications (Units: mm)

Tape Dimensions: Loaded Quantity 4000pcs per reel

Handling Precautions

1. Operating

Silicone is softer and flexible, Although its characteristics significantly reduces thermal stree, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated LED products. Failure to comply might leads to damage and premature failure of the led

2. Soldering

SMD LED encapsulation gumwater is flexible, and external force easily damages radiant surface and plastic shell.So when soldering , Please handle with care!

A. Reflow soldering shall be not more than two times and is suggested to be taken under reflow curve conditions with No-clean Flux, .The radiant surface shall be clean and unclean surface may influence the emitting color.

B. Manual soldering is only used for reparing. Anti-static iron (25W) is recommended and tweezer or iron should not touch the radiant surface and plastic parts. The soldering time should be not more than 3 seconds.

C. Don’t twist LED in course of manual soldering and testing, which may cause LED failure.

D. Please select the LED devices in the same BIN on the same PCB, otherwise may cause chromatic aberration.

3. Cleaning

A. Ultrasonic cleaning is not allowed. We recommend isopropyl alcohol or pure alcohol to for cleaning or dipping within 1 minute and reuse after 15 minutes in room temperature. LThe radiant surface shall be clean after cleaning and other wisemayh influence radiant color.

B. Isoamyl acetate, trichloroethylene, acetone, sulfide, nitride, acid, alkali and salt shall be avoided from LED, which may cause damage to LED.

4. Encapsulation

A. Encapsulation glue containing sodium ion or sulfide shall be avoided, which may cause fading fluorescence powder (poisoning).

B. When using normal encapsulation glue, trial testing is recommended for 168-hour operation before mass production.
