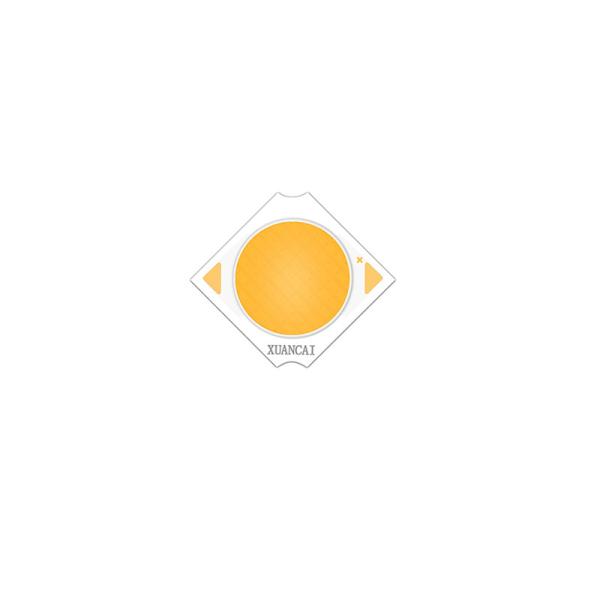

Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip
Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip
Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip
Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip
Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip
Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip
Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip
Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip
Specifications
Brand Name :
XUANCAI
Model Number :
XL-19*19/17MM LED COB CHIP
Certification :
CE ROHS LM-80
Place of Origin :
China
MOQ :
50
Price :
$1.3-$ 2.3/ PCS
Payment Terms :
T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :
100000M / Month
Delivery Time :
3-5 days
Packaging Details :
Blister box packaging
Product Name :
XL-19*19/17MM LED COB CHIP
Size :
19*19/17MM
Power :
30W
Current :
750mA/ 600mA
Voltage :
36-39V/ 30-32V
CCT :
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
CRI :
80
Chip Brand :
Bridgelux Chip
Certificate :
CE ROHS LM-80
Application :
High-end Shopping mall/ Supermarket/ Project Light
Warranty :
3 Years
Spanlife :
50,000 Hours
Description

19*19/17MM 30W 160-170LM/W Good Price High Brightness COB LED Chip for High-end Shopping mall/ Supermarket/ Project Light

Product Description

Product Information
Size
 XL-19*19/17MM
Product name
30W LED COB CHIP
Power
 30W
Voltage
 30- 33V/ 36-39V
Current
750mA / 600mA
Chip Brand
US Bridgelux
CRI

80
Luminous efficacy
160-170LM/W

Mechanical Dimensions

Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip

Features

◆ Mechanical Dimensions : 19*19*1.7(mm)

◆ Package Structure : Mirror Aluminium Base Chip on Board

◆ CRI(Ra) :Min.80,Min90, Min95

◆ Nominal CCT :2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K

◆ Chromaticity Range : 3-step MacAdam Ellipse/ 2-step MacAdam Ellipse

◆ RoHS compliant

◆ Better die arrangement for optics

◆ Wide range of luminous fluxand high efficacy

Electro Optical Characteristics

Product Code

Nominal CCT

 CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W )

Forward

Current

(mA)

Voltage

(V)
Ra R9
Min. Min. Min. Typ. Typ. Min. Typ. Max.
XC1917-H1205-A2780-E31 2700K 80 0 3398 3577 132 750 35 36 37
XC1917-H1205-A3080-E31 3000K 80 0 3540 3726 138 750 35 36 37
XC1917-H1205-A3580-F31 3500K 80 0 3646 3838 142 750 35 36 37
XC1917-H1205-A4080-F31 4000K 80 0 3681 3875 144 750 35 36 37
XC1917-H1205-A5080-F31 5000K 80 0 3610 3801 141 750 35 36 37
XC1917-H1205-A6080-E31 6000K 80 0 3575 3763 139 750 35 36 37

Absolute Maximum Ratings

Parameter Symbol Rating
Forward Current IF 1200mA
Reverse Current IR 1mA
Operating Temperature TOPR -30℃ To +75℃
Storage Temperature Tst -30℃ To +75℃
Case Temperature Tc 85℃
Junction Temperature TJ 125℃
Soldering Temperature TSOL 350℃± 10℃ For 5 Seconds
ESD Sensitivity ESD 2000V HBM

Features:

1. Using standrad CRI index to design color points of light

2. Using thermoelectric separation of substrate. The heat dissipating performance is good. Thermal resistance<2.5

3. Small size of the COB to achieve high power efficacy. Easy to use for customers.

4. The reliability is further improved, and double lumens output 160-170LM/W can be achieve more than the same size.

Application

Project light High Brightness 170LM 30W 6500K US Bridgelux LED ChipProject light High Brightness 170LM 30W 6500K US Bridgelux LED Chip

Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip

Trade Show

Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip

Project light High Brightness 170LM 30W 6500K US Bridgelux LED Chip

Customers feedback

1. These are much better when used as under cabinet lighting than the standard chip style. Especially with reflective countertops. It's much more uniform and clean looking in the reflection. I install many strips through my electrical business. These were very great.

2. My customer is so happy with this lighting. The leds are bright and dimmable and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.

3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24v transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light

4. These lights are excellent! Very well made and stick very well. The look behind my tv is freaking awesome! I cant tell you how much better my living room looks now! Definitely a great choice, will buy more!

5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
