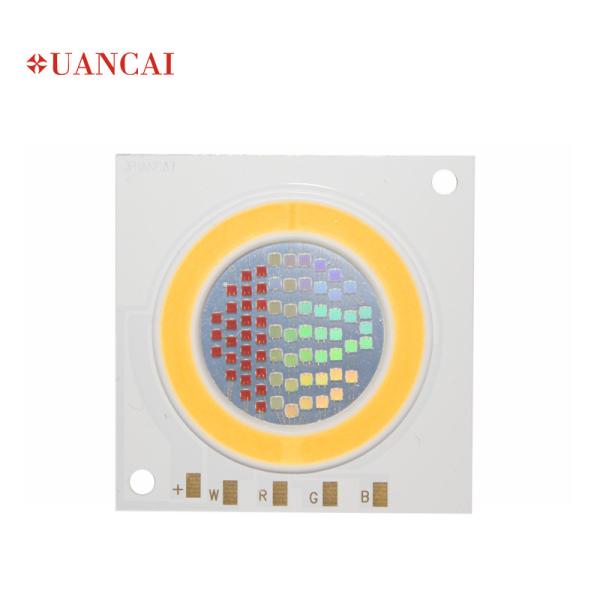

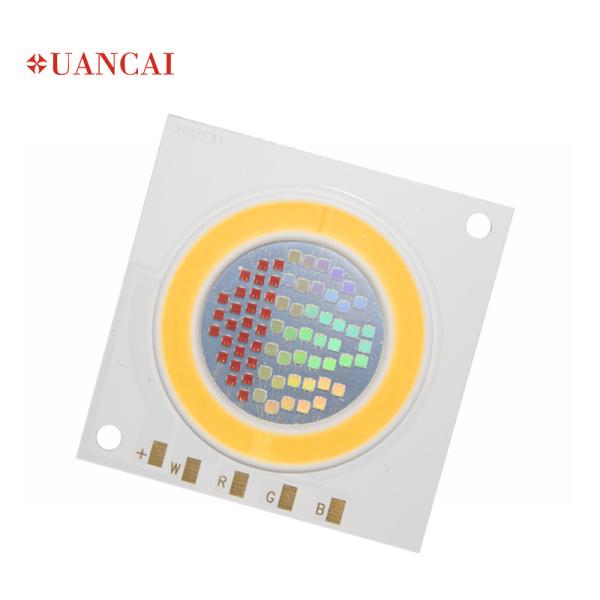

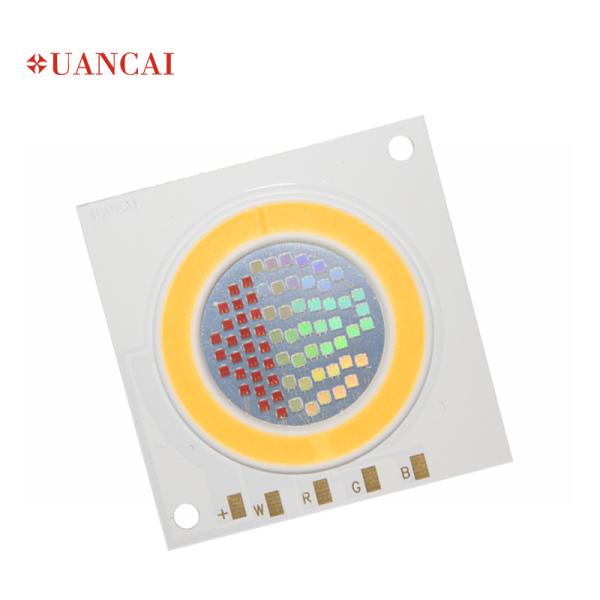

High Power 200W CRI>90 Epileds Chip RGBW Led Cob Chip for Stage Lighting/KTV Disco Party/ Wedding Party

Characteristics

Absolute Maximum Ratings

• LEDs Type: High CRI LED COB CHIP
• Size: XC-38*38/30MM
• Wattage: 200W
• Current: 1500mA
• Max Forward Current: 1920mA
• Reverse Current: 1mA
• CRI: >90
• Luminous efficacy: 110-120LM/W
• Color Temperature: Red/ Blue/ Green/ White
• Operation temperature: -30℃-+75℃
• Storage temperature: -30℃-+ 75℃
• Case Temperature: 85℃
• Junction Temperature: 125℃
• Soldering Temperature: 350℃± 10℃ For 5 Seconds
• ESD Sensitivity: 2000V HBM

The Citizen CLU058 Size Studio LED is optimized for motion picture, studio and photography applications, delivering high quality light that meets the film industry's color spectrum requirements combined with high lumen output and high optical control. Available in 3-step EasyWhite® bins, the CLU058 Size Studio LED delivers high lumen output, high light quality and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering, enabling lighting manufacturers to deliver the benefits of traditional tungsten and HMI lighting without any of the disadvantages.

Product Introduction

1-1 Features

◆ Mechanical Dimensions : 37.5x37.5x1.7(mm)

◆ Package Structure :Aluminium Base Chip on Board

◆ CRI(Ra): Min.95

◆ Nominal CCT : 3000K

◆ Chromaticity Range : 3-step MacAdam Ellipse

◆ RoHS compliant

◆ Better die arrangement for optics

◆ Wide range of luminous flux and high efficacy

1-2 ,Applications

Stage Lighting

Electro Optical Characteristics

Chromaticity Characteristics

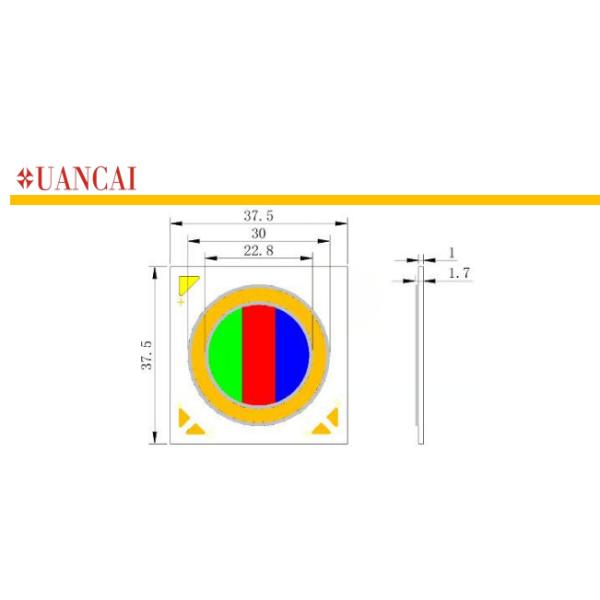

Mechanical Dimensions

Application

Features:

*.Color region stay within MacAdam 3-step ellipse from the chromaticity center.
*.The chromaticity center refers to ANSI C78.377:2011. Please refer to ANSI C78. 377 for the chromaticity center.
*.θ is the angle between the major axis of the ellipse and the x-axis, and a and b are the major and minor semi-axes of an ellipse. (Ref. IEC 60081:1997 AnnexD)

User Manuel

1. Storage

To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.

2. The soldering precautions

Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.

3. Anti-static measures

Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.

4. Temperature control

Recommended temperature conditions for enhanced product life: Be sure to TS point (negative pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.

5. The drive control

Drive this product at constant current. Output current range specifications should be ac-cording to the operational and other conditions, as mentioned in data sheet. Before using a constant voltage source or altered specifications other than recommended, please consider risk factors.
