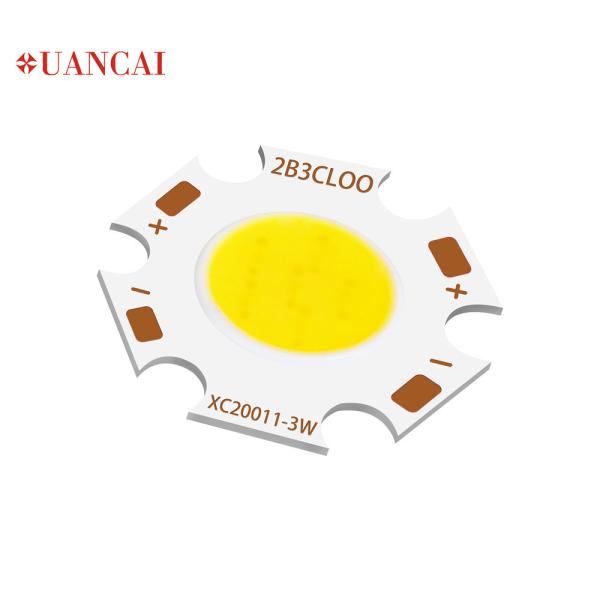

5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led
Specifications
Brand Name :
XUANCAI
Model Number :
DL-20/11MM
Certification :
CE ROHS LM-80
Place of Origin :
China
MOQ :
100
Price :
$0.2-$0.4/PCS
Payment Terms :
T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :
10000PCS / Month
Delivery Time :
3-5 days
Packaging Details :
Blister box packaging
Product Name :
DL-20/11 LED COB Chip
Power :
7W
Voltage :
21-24V
Current :
300mA
Luminous Efficacy :
130-140LM/W
CRI :
70/80
Color Temperature :
Warm White/ Natural White/ Cool White
Viewing angle(°) :
120
Application :
Downlight/ Tracklight/ Spotlight/ Miner Light
Chip Material :
US Bridgelux
Description

Distributor 5W 7W 10W LED COB Chip Round Shape Bridgelux Chip 2700K 3000K 4000K 6000K For Downlight/ Spotlight

Products details

Item

 DL-20/11MM LED COB CHIP

Size

DL-20/11MM

Power

 5W / 7W/ 9W

Current

 300mA

Voltage

21-24V

Luminous Efficacy

120-140LM/W

CRI

80/70

Parameters

Size Power Temperature
(CCT)		 CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W ) Current
(mA)		 Voltage
(V)
Min. Typ. Typ. Typ. Min. Typ. Max.
20/11MM 7W 2700K 80 621 653 104 300 20 21 22
20/11MM 7W 3000K 80 646 680 108 300 20 21 22
20/11MM 7W 3500K 80 666 701 111 300 20 21 22
20/11MM 7W 4000K 80 672 708 112 300 20 21 22
20/11MM 7W 5000K 80 659 694 110 300 20 21 22

Absolute Maximum Ratings

Parameter Symbol Rating
Forward Current IF 370mA
Reverse Current IR 1mA
Operating Temperature TOPR -30℃ To +75℃
Storage Temperature Tst -30℃ To +75℃
Case Temperature Tc 85℃
Junction Temperature TJ 125℃
Soldering Temperature TSOL 350℃± 10℃ For 5 Seconds

Package Dimensions

5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led

Applications

5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led5W 7W 2700K 3000K 21v 24V Downlight Spotlight Flip Chip Led

Reliability Test

No.

Test Item

Test Condition

Test Cycle
1

Continuous Operation Test

Tc=85℃

IF=300mA

 1000H
2

Low/High Temperature Storage Test

-40℃/30min~

+100℃/30min

 100 Cycles
3

High Temperature Storage Test

 Ta=100℃ 1000H
4

Low Temperature Storage Test

 Ta=-40℃ 1000H
5

Moisture-proof Test

 Tc=60℃ ,95%RH 1000H
