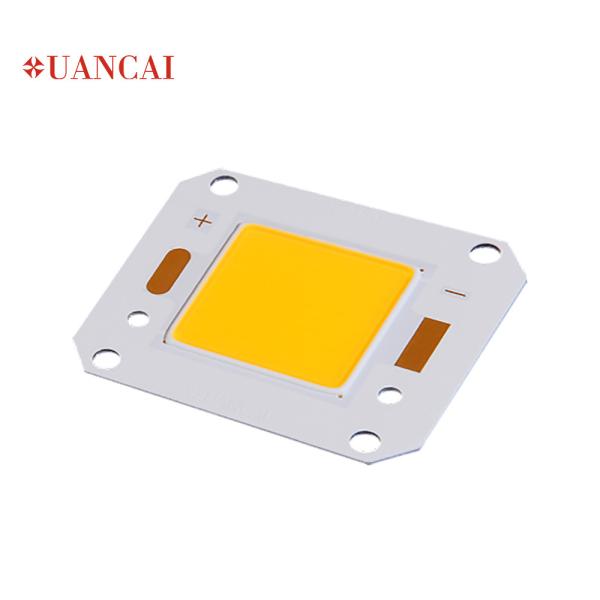

100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
Specifications
Brand Name :
XUANCAI
Model Number :
TL-40*46/24*24MM LED COB CHIP
Certification :
CE ROHS LM-80
Place of Origin :
China
MOQ :
50
Price :
$3-$5/ PCS
Payment Terms :
T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :
100000M / Month
Delivery Time :
3-5 days
Packaging Details :
Blister box packaging
Product Name :
TL-40*46/24*24MM LED COB CHIP
Size :
TL-40*46/24*24MM
Power :
100W
Current :
3000mA
Voltage :
30-33V
CCT :
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
Warranty :
3 Years
Life span :
50000 Hours
Certificate :
CE ROHS LM-80
Application :
Street light/ Floodlight/ Project light
Description

100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip 3 Years Warranty

Product Description

Product Information
Size
 TL-40*46/24*24MM
Product name
100W LED COB CHIP
Power
 100W
Voltage
 30- 33V
CCT
2700K/ 3000K/ 4000K/ 6000K
Chip Material
US Bridgelux
CRI

80/70
Luminous efficacy
Warranty
130-140LM/W
3 Years

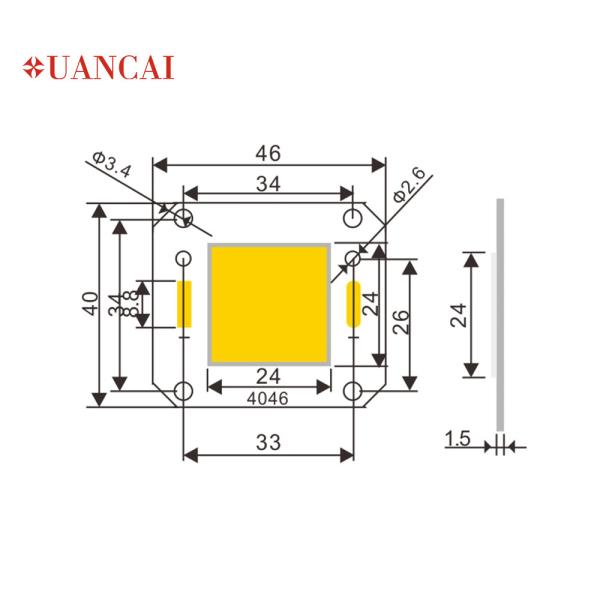

Mechanical Dimensions

100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip

Features

◆ Mechanical Dimensions : 46*40*2.2(mm)

◆ Package Structure : Copper Base Chip on Board

◆ CRI(Ra) :Min.80,Min90

◆ Nominal CCT :2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K

◆ Chromaticity Range : 3-step MacAdam Ellipse

◆ RoHS compliant

◆ Better die arrangement for optics

◆ Wide range of luminous fluxand high efficacy

Electro Optical Characteristics

Product Code

Nominal CCT

 CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W )

Forward Current (mA)

 Voltage (V)
Ra R9
Min. Min. Min. Typ. Typ. Min. Typ. Max.

XC4624-M1020

-A2780-E31

2700K

 80 0 12418 13072 135 3000 30 32.3 34

XC4624-M1020

-A2790-C31

 2700K

90

50

10458

11008

114

3000

30

32.3

34

XC4624-M1020

-A3080-F31

3000K

80

0

12962

13644

141

3000

30

32.3

34

XC4624-M1020

-A3090-C31

 3000K

90

50

10784

11352

117

3000

30

32.3

34

XC4624-M1020

-A3580-F31

3500K

80

0

13290

13988

144

3000

30

32.3

34

XC4624-M1020

-A3590-D31

 3500K

90

50

11438

12040

124

3000

30

32.3

34

XC4624-M1020

-A4080-F31

4000K

80

0

13398

14104

146

3000

30

32.3

34

XC4624-M1020

-A4090-D31

 4000K

90

50

11764

12384

128

3000

30

32.3

34

XC4624-M1020

-A5080-F31

5000K

80

0

13072

13760

142

3000

30

32.3

34

XC4624-M1020

-A5090-D31

 5000K

90

50

11656

12268

127

3000

30

32.3

34

XC4624-M1020

-A6080-F31

6000K

80

0

13072

13760

142

3000

30

32.3

34

XC4624-M1020

-A6090-D31

 6000K

90

50

11328

11924

123

3000

30

32.3

34

Absolute Maximum Ratings

Parameter Symbol Rating
Forward Current IF 3400mA
Reverse Current IR 1mA
Operating Temperature TOPR -30℃ To +75℃
Storage Temperature Tst -30℃ To +75℃
Case Temperature Tc 85℃
Junction Temperature TJ 125℃
Soldering Temperature TSOL 340℃± 20℃ For 3 Seconds
ESD Sensitivity ESD 2000V HBM

Features:

1. Copper base will have a good heat dissipation, Copper base is suitable for high temperature areas, such as Egypt, Kuwait, Libya....

2. Aluminium base has relatively high light efficiency

3. This type led cob chip mainly used in Flood light/ Street Light/ project Light

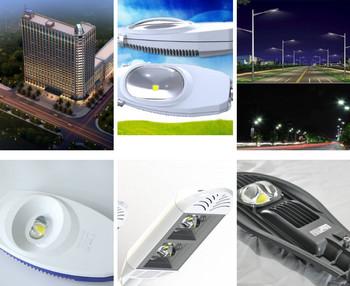

Application

100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip

100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip

Trade Show

100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip

100W Copper Base US Bridgelux High Lumens 150Lumens Floodlight COB Chip
