5W/M 4mm Narrow COB LED Strip 180 Beam Angle IP20 For Car / Room
5W/M 4mm Narrow COB LED Strip 180 Beam Angle IP20 For Car / Room
5W/M 4mm Narrow COB LED Strip 180 Beam Angle IP20 For Car / Room
5W/M 4mm Narrow COB LED Strip 180 Beam Angle IP20 For Car / Room
Specifications
Brand Name :
XUANCAI
Model Number :
4MM Flexible COB LED Strip
Certification :
CE ROHS LM-80
Place of Origin :
China
MOQ :
5 meter
Price :
$ 2.9-$ 3.5/meter
Payment Terms :
T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :
100000Meter / Month
Delivery Time :
3-5 days
Packaging Details :
Blister box packaging
Type :
Flexible COB LED Strip
Power :
5W/Meter
Voltage :
DC24V/DC12V
CRI :
90
Lumens :
110-120LM/W
Color temperature :
2700K/3000k/4000k/6500K
LED Quantity :
480 Leds
Beam Angle :
180
Step Length :
25MM/50MM
Application :
Bedroom Kitchen Home Indoor Lighting
Description

4MM Narrow COB LED Strip Light For Car Light Room Decoration 5W/M 12V 24V LED COB Strip Light

Specification
Product Information
Product Item
480Chips/m 4MM PCB COB LED STRIP
Dimension
5000mm*4mm
Chip Density
480chips/M
PCB Width
4mm
Voltage(V)
DC12V/ DC24V
Beam Angle
180°
Step Length
25MM/ 50MM
IP Grade
IP20

COB Strip Parameters

1. Working Voltage: DC12V /24V optional
2. 2 Pin Wire, Red line(Live), black line(Neutral)
3. Support dimmer to control brightness :Yes with extra controller, available in store
4. Wattage: 5W/m. 0.5m=2.5W; 1m=5W; 2m=10W; 5m=25W
5. Strip Width: 4mm, Super Slim
6. LED quantity: 480 LEDs per Meter
7. Mix cut length: DC12V- every 25mm, DC24V-every 50mm
8. Color Rendering Index: Ra＞90
9. Operation temperature: -10℃-+60℃
10. Storage temperature: -10℃-+60℃
11. Beam angle: 180°
12. Waterproof Level: IP20, not waterproof.
Lumen: 583LM/m for 3000K; 634LM/m for 4000K; 608LM/m for 6500K
Product Description

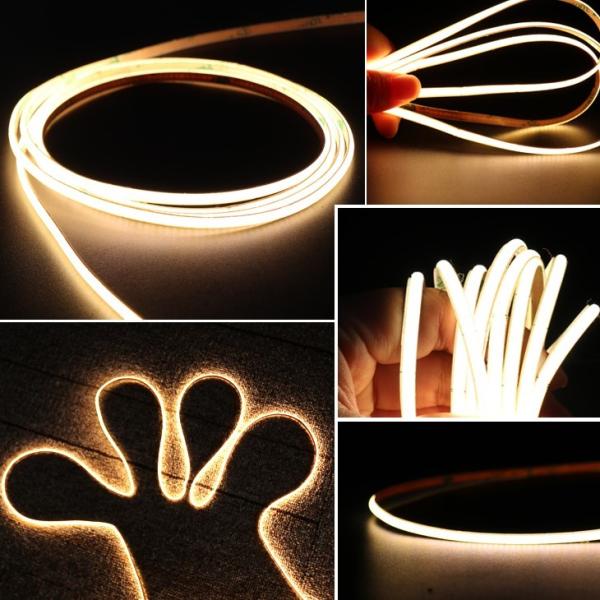

It is Flexible COB Strip light, you can change the shape of the light bar and install it according to your decoration design
Advantages as below:
1. Uniform illumination, dot free
2. better light decay
3. better heat-dissipation
4. High color efficiency
5. Waterproof: IP20-IP67
6. can be built-in aluminum profile with PC cover
Related Products
Application

1.Lighting the city skyline,such as building,advertising walls,signs,christmas decorations......
2.Decoration of irregular design body,such as polygonal wall,water drop and ceiling groove design of hotel/night club/KTV ......
3.Home dark groove edge,such as door frame,bar,wine cabinet,wardrobe,TV cabinet......
4.Car beauty,such as body and underside......
How To Install

The advantages of FOB COB LED STRIP

Genuine 3M Adhesive

  • Easy to Install, Use high-quality 3M adhesive backing with heat resistance, strong viscosity and integration

Easy to CUT ( 1.78ft /cut)

  • NOTE : Total wattage of the LED strip should not exceed the maximum wattage of the power adapter

Customers feedback

1. These are much better when used as under cabinet lighting than the standard chip style. Especially with reflective countertops. It's much more uniform and clean looking in the reflection. I install many strips through my electrical business. These were very great.

2. My customer is so happy with this lighting. The leds are bright and dimmable and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.

3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24v transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light

4. Great tape lighting...such an upgrade from the "dotted" style. Would HIGHLY recommend this product for under cabinet, under counter, around mirrors in bathrooms, etc.

5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
