Specifications
Brand Name :
XUANCAI
Model Number :
XC-FOB500080832
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
$2.9- $ 4.5
Payment Terms :
T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :
10000M / Month
Delivery Time :
3-5 days
Packaging Details :
Blister box packaging
Product Name :
FOB COB Strip
Voltage :
12v /24v
Watts :
5w / 10w / 15w /M
Lumens :
100-110lm
CRI :
90
Width :
4MM / 8MM /10MM
Lamp Body Material :
Aluminium
Warranty :
3 years
Application :
Landscape, Residential Office Road Garden Theme Park
Color temperature :
2700k / 3000K / 4000k / 6000K
Description
Product Information
Level
IP 65 / IP 67
Type
FOB LED STRIP
Voltage
12V / 24V
Rolls
5M/Roll
Luminous intensity
110LM/W
Chip Material
InGaN
CRI
>90
Color Temperature(K)
2000-6500K

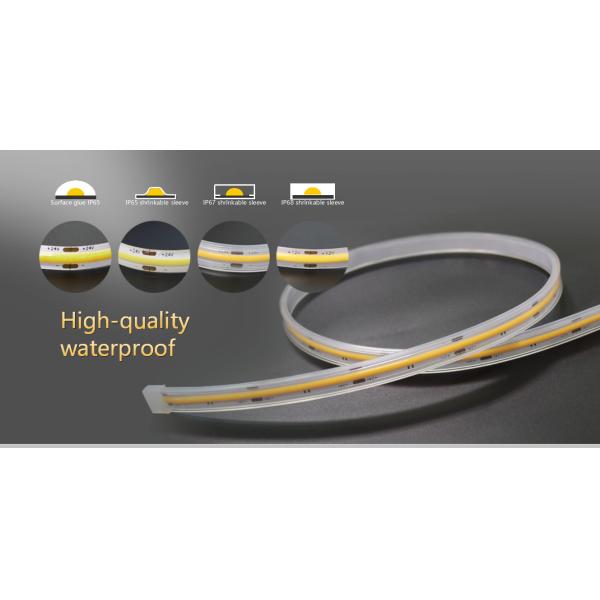

Waterproof Fob Light Strip
4000k 10W 15W flexible led light strip in Jewelry Cabinet Lights

Product Description

XC --08 ---24 --- 0830---P7---J10 ---27 ---90 ---A---B2

② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

① :Company abbreviation

② :product size

③ :input voltage

④ : series-parallel

⑤ : Half a meter power

⑥ : Half-meter shear group number

⑦ :CT(K)

⑧ :CRI

⑨ :Photosynthetic efficiency level

⑩ :package standard

Product Characteristic Parameters

Company abbreviation

product size

(mm)

input voltage

(V)

 series-parallel Half a meter powe (W) Half-meter shear group number emitting color CRI

Photosynthetic efficiency level

(lm/w)

 package standard color tolerance
XC 08 24 0830 P7 J10 27 90 A B2 S3
(xuancai) 500*08mm DC24V

08-C

30-B

 7.5W 10 2700K ＞90 95-100 (Blister box) ≤3
XC 08 24 0830 P7 J10 30 90 B B2 S3
(xuancai) 500*08mm DC24V

08-C

30-B

 7.5W 10 3000K ＞90 100-105 (Blister box) ≤3
XC 08 24 0830 P7 J10 40 90 C B2 S3
(xuancai) 500*08mm DC24V

08-C

30-B

 7.5W 10 4000K ＞90 110-115 (Blister box) ≤3
XC 08 24 0830 P7 J10 65 90 C B2 S3
(xuancai) 500*08mm DC24V

08-C

30-B

 7.5W 10 6500K ＞90 115-120 (Blister box) ≤3

Reliability Test Standards

(A pilot project) (Number of test) (Test conditions) (Decision criteria) (Test Vequipment)
Cold and hot shock 10pcs -40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. No glue crack/dead light Cold and heat shock chamber
The normal temperature aging 10pcs Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once.

1.Droop 10% or less

2.No glue crack/dead light

 Normal temperature aging block
High temperature and high humidity 10pcs Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once.

1.Droop 10% or less

2.No glue crack/dead light

 High temperature and high humidity aging tank

Application
4000k 10W 15W flexible led light strip in Jewelry Cabinet Lights
4000k 10W 15W flexible led light strip in Jewelry Cabinet Lights
