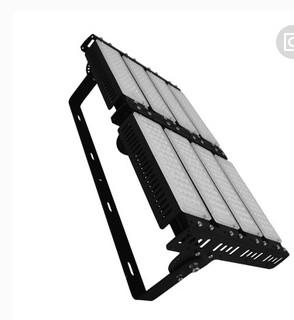

400W External LED Tunnel Light , 26000 LM / 39000 LM Led Roadway Lighting IP66
400W External LED Tunnel Light , 26000 LM / 39000 LM Led Roadway Lighting IP66
Specifications
Brand Name :
GUOHUI LIGHTING
Model Number :
GH-SF-400W
Certification :
CE ROHS CB
Place of Origin :
CHINA
MOQ :
1pcs
Price :
232 USD/pcs
Payment Terms :
T/T , paypal , L/C
Supply Ability :
20000-30000pcs / Month
Delivery Time :
3-5days for samples ,12-15days for mass qty
Packaging Details :
1pcs /CTN
Power :
400W
Imput voltage :
AC 85-265V
CRI :
>80
IP rating :
IP66
warranty :
5 years
LED qty & SMD type :
384pcs 3030 SMD
beam angle :
60 90 120 degree
Driver :
CE Driver
Description

400W LED tunnel light with IP65 rating 5 years

warranty 130lm/W 5000K

Other wattage comparisons:
Model No. GH-SF-50W GH-SF-100W GH-SF-150W GH-SF-200W GH-SF-300W GH-SF-400W GH-SF-500W
Power 50W 100W 150W 200W 300W 400W 500W
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
CRI >80 >80 >80 >80 >80 >80 >80
CCT 2700-6500K 2700-6500K 2700-6500K 2700-6500K 2700-6500K 2700-6500K 2700-6500K
Lumen 6500 LM 13000 LM 19500 LM 26000 LM 39000 LM 52000 LM 65000 LM
Led chips 48 pcs SMD LUMILEDS 96pcs SMD LUMILEDS 144 pcs SMD LUMILEDS 192 pcs SMD LUMILEDS 288 pcs SMD LUMILEDS 384 pcs SMD LUMILEDS 480pcs SMD LUMILEDS
Sizes 315*W:93*H130 315*W:238*H130mm 315*W:283*H130mm 315*W:373*H130mm 615*W:283*H130 mm 615*W:373*H130mm 615*W:463*H130 mm
Beam Angle 60 ° 90 ° 120° Lens 60 ° 90 ° 120° Lens 60 ° 90 ° 120° Lens 60 ° 90 ° 120° Lens 60 ° 90 ° 120° Lens 60 ° 90 ° 120° Lens 60 ° 90 ° 120° Lens
Material Die-cast Aluminium +PC Die-cast Aluminium +PC Die-cast Aluminium +PC Die-cast Aluminium +PC Die-cast Aluminium +PC Die-cast Aluminium +PC Die-cast Aluminium +PC
Warranty 5 years 5 years 5 years 5 years 5 years 5 years 5 years

power:400W

PF≥0.98
Size:615*W:373*H130mm
NW:10.85kg
Packing :1pcs /CTN
Packing size:635*430*180mm
GW:11.5 kg

400W External LED Tunnel Light , 26000 LM / 39000 LM Led Roadway Lighting IP66400W External LED Tunnel Light , 26000 LM / 39000 LM Led Roadway Lighting IP66400W External LED Tunnel Light , 26000 LM / 39000 LM Led Roadway Lighting IP66400W External LED Tunnel Light , 26000 LM / 39000 LM Led Roadway Lighting IP66400W External LED Tunnel Light , 26000 LM / 39000 LM Led Roadway Lighting IP66400W External LED Tunnel Light , 26000 LM / 39000 LM Led Roadway Lighting IP66

Products Name 400W LED tunnel light with IP65 rating 5 years warranty 130lm/W 5000K AC85-265V voltage imput
Model GH-SF-400W
Dirver model UL ETL DLC Listed IP65 Meanwell ELG series
Led chips qty 384 pcs LUMILEDS brand led chips
Total Lumens 52000LMS
Input Voltage AC90-305V/AC100-277V/AC85-265V 50/60Hz
Light Efficiency 130 lm/w
Mounting Height Up to 30-60ft
Color temperature 2700-6500k
Beam Angle 60/90/120 degree
Operating Temperature -20℃ To 45℃
Operating Humidity 20%-90% RH
Storage Temperature 30℃ TO 80℃
Storage Humidity 10%-95%
Application Indoor /outdoor
Warranty Time 5 Years
