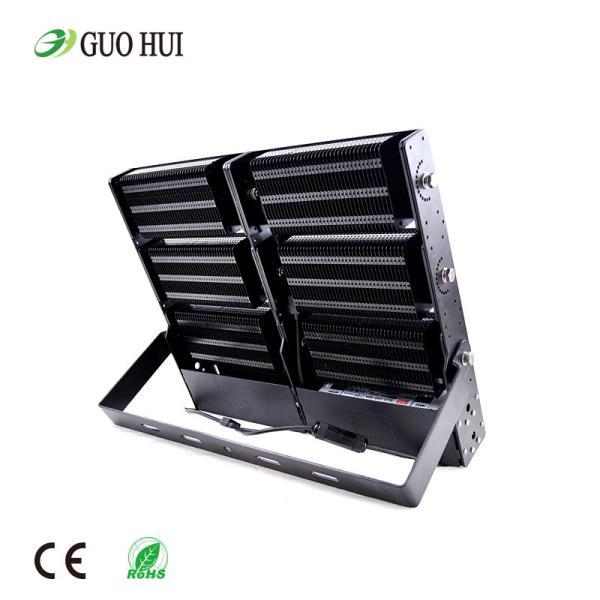

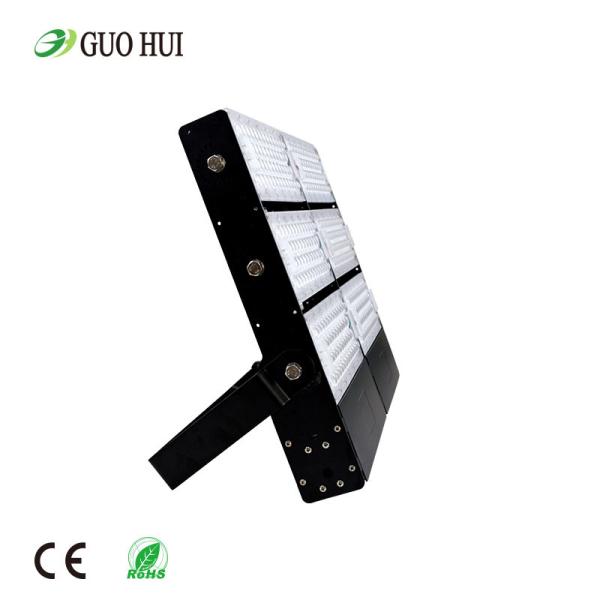

900w high mast Flood lights For Stadium Sports airport lighting
900w high mast Flood lights For Stadium Sports airport lighting
900w high mast Flood lights For Stadium Sports airport lighting
900w high mast Flood lights For Stadium Sports airport lighting
900w high mast Flood lights For Stadium Sports airport lighting
900w high mast Flood lights For Stadium Sports airport lighting
Specifications
Brand Name :
Guohui
Model Number :
GH-TFD-900w
Certification :
CE/ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Supply Ability :
5000pcs/per month
Delivery Time :
samples only need 3-4 days, Big qty delivery time: 8-12 days
Packaging Details :
Package size:632*560*108mm; Gross weight: 18.25KG
Item Type :
High mast Led Flood lights
Input Voltage(V) :
AC90-305V
Watts :
900W
Driver :
Meanwell driver
Optics lens :
20°/40°/60° 90°140*100° 100° 140*70°
Led :
sss smd 5050
CRI :
>70
Luminous flux :
148500lm
Luminaire efficacy :
165lm/w
IK rating :
IK08
Description

Product technical details:

900w high mast Flood lights For Stadium Sports airport lighting

900w high mast Flood lights For Stadium Sports airport lighting

Products Description

900w high mast Flood lights For Stadium Sports airport lighting

900w high mast Flood lights For Stadium Sports airport lighting

900w high mast Flood lights For Stadium Sports airport lighting

1. Single module adjustment angle light distribution, 8°/20°/40°/60° /90°/140*100° angleless PC cover;

2. Import ssssss LED lamp beads, Light efficiency>165LM/W;
3. Using fins 1060 pure aluminum heat , air convection design, Better heat dissipation, heat sink 0.5mm;
4. Use 304 stainless steel screws;
5. Internal wiring is waterproof, safe,Convenient;
6. Refined iron phosphide bracket;
7. MeanwellELG or HLG driver;
8. Independent power box design to support more power, which is beneficial to Light body heat dissipation, reducing light decay and prolonging service life.
Installation Instructions

1. The mounting rood or mounting surface can be directly screwed through the mounting hole one the product bracket;

2. After fixing the product, you can loosen the screws on both sides of the bracket and then change the angle of the bracket, which is equivalent to adjusting the installation angle of the fixture;

3. Working environment temperature -30℃-+55℃ storage;

4. When installing the luminaire, the wiring and wiring are closed to prevent leakage;

5. When the external power cord is connected, the corresponding waterproof and water leakage measures must be taken;

6. Anti-glare design, uniform light distribution;

7. Independent power supply box design is beneficial to heat dissipation of the lamp body, reducing light decay and prolonging the service life of the light source;

8. Support light sensor installation, which can realize intelligent control of lamps and improve energy saving benefits.

Applications

Used in shiopping mall, exhibition hall, parking lot, playground,gymnasium, billboards, park, sculpture, national green lighting project, bulding facede and public corridor, stair corridor and other indoor and outdoor lighting.

900w high mast Flood lights For Stadium Sports airport lighting

900w high mast Flood lights For Stadium Sports airport lighting

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
OEM and ODM is high welcome! Our factory also can customize with client's requirments.
Welcome send inquiry to us!
