Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Specifications
Brand Name :
Guohui
Model Number :
GH-TFD-1500W
Certification :
UL,DLC,SAA,CE,ROHS
Place of Origin :
China (Mainland)
MOQ :
1pcs
Price :
$542.86/pcs-$578.57/pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000pcs/per month
Delivery Time :
samples delivery time: 5days, normal order delivery time: 7-10days
Packaging Details :
G.W.: 30KG Carton:64*86*12CM
Power :
1500W(10 modules)
Meanwell driver :
Meanwell ELG/HLG
Luminous Efficiency(lm/w) :
>145-165lm/w
Light source :
3030/5050
Beam Angle(°) :
20°/40°/60° /90°/140*100°
IP Rating :
IP67
Warranty :
5-7 Years
Application :
Sports Stadiums, Square, Warehouse, baseball/basketball/football/soccer/tennis/hockey rink
Certifications :
CE, ROHS, IP67,LM80
Color :
Black
Description

Goverment Project Modules adjustable Beam AC100-305V 1500W Led Stadium Light Sports Outdoor Lighting


Products Description

Product Number
GH-TFD-1500w / Goverment Project Modules adjustable Beam AC100-305V 1500W Led Stadium Light Sports Outdoor Lighting
Input Power
1500W
Led Chips
SMD 3030 1840PCS
SMD 5050 460PCS
Light Effiency
145LM/W
165LM/W
Input Voltage
AC100-305V
Frequency
50/60HZ
Power Factory
PF>0.95
CCT
2700-6500k or customized
Power Supply
Meanwell ELG/HLG 300W*5pcs
CRI
>70
Production Sizes
625*855*88 mm
Packing Sizes
640*855*105 mm
Net Weight
28.45 KG
Gross weight
30KG
Lamp Boady Color
Black/Silver
Power Cable
Brown L firewire
Yellow Green G ground
Blue N zero Line
Beam Angle
20/40/60/90/140*100 degree
IP grade
IP67 waterproof
Material
Fin 1060 pure Aluminum
Lifetime
50000 hours
Temperature
-30-+55 degree
Certificate
CE ROHS LM80
Warranty
5/7years
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules

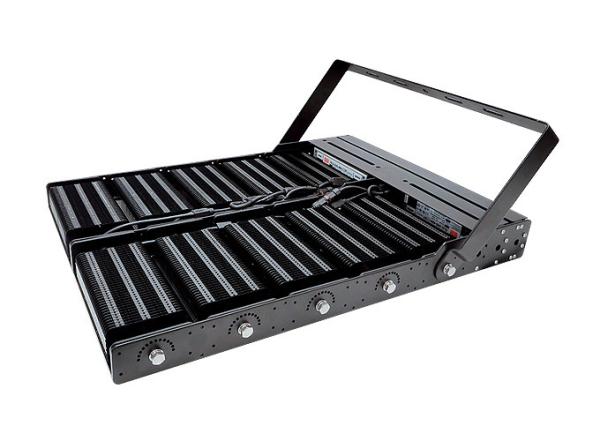

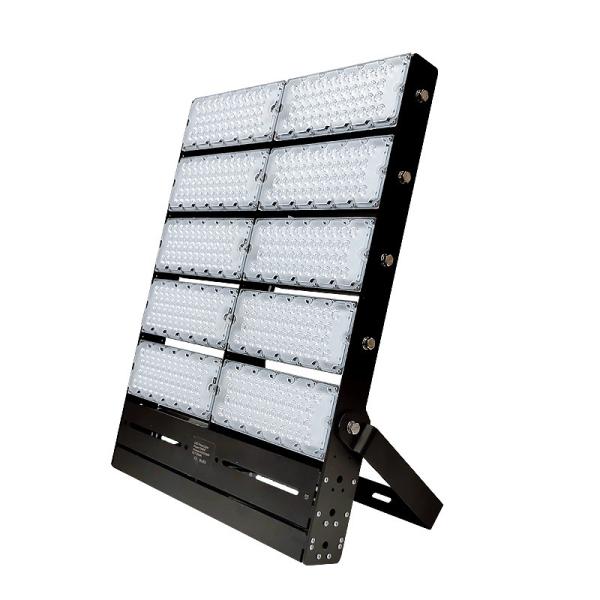

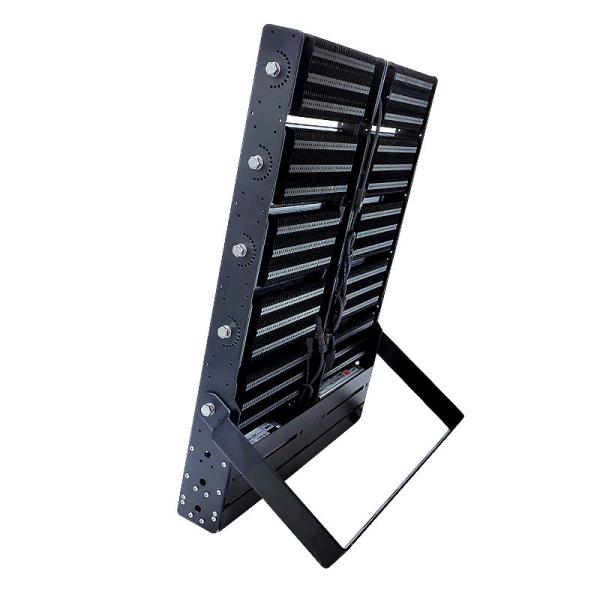

Physical pictures:
Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules
Installation Instructions

1. The mounting rood or mounting surface can be directly screwed through the mounting hole one the product bracket;
2. After fixing the product, you can loosen the screws on both sides of the bracket and then change the angle of the bracket, which is equivalent to adjusting the installation angle of the fixture;
3. Working environment temperature -30℃-+55℃ storage;
4. When installing the luminaire, the wiring and wiring are closed to prevent leakage;
5. When the external power cord is connected, the corresponding waterproof and water leakage measures must be taken;
6. Anti-glare design, uniform light distribution;
7. Independent power supply box design is beneficial to heat dissipation of the lamp body, reducing light decay and prolonging the service life of the light source;
8. Support light sensor installation, which can realize intelligent control of lamps and improve energy saving benefits.



Applications

LED manufacturer SMD high lumen 165lm/W Meanwell driver 2700-6500K 500w 600w 900w 1200w outdoor led flood light, led stadium light, led tunnel light, led flood lamp

Used for square lighting, stadium lighting, sports area lighting, high way road, tower cranes and other ourdoor big area lighting.

Sports Led Stadium Light Adjustable Beam AC100-305V 1500W Goverment Project Modules




FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity, depends on the qty.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 5pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express, Airline and Sea.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Our factory also can customize with client's requirements.
