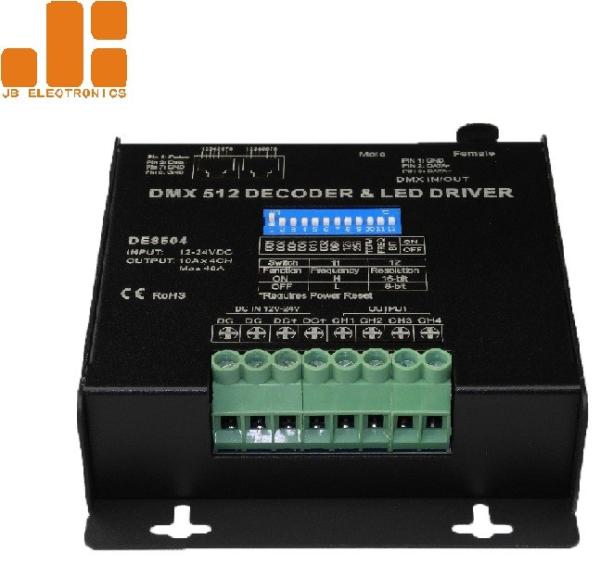

RGBW 10A*4CH Constant Voltage LED DMX512 Decoder

Model : DE8358 Manual Download: DE8504 .pdf

SUMMARIZE:

The DMX512 Decoder series adopt the advanced micro-computer control technology. It can convert the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.

The DE8359 can output 1~6 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It has been widelyly used in Landscaping and buildings lighting.

Product Features:

1, Meets DMX512/1990,with RJ45 interface and XLR to choose.

2, Can realize 256-levels brightness adjustment by the buttons.

3, Power without ashing, smooth at low.

4, Four ways of output channel, single channel maximum 10A output drive, total output is less than 40A.

5, Can achieve asynchronous color changes effect under working with controller.

6, With the light color selected mechanism, and be able to control the light with up to 4 colors.

7, Setting the DMX address freely by dip switch.

8. Customized available and 3 years warranty.

Product Size :

Operation Instructions:

1, DMX Signal IN/OUT interface: RJ45/3 Pin screws/5 Pin XLR connector. Specially 3 Pin screws interface with signal amplifier function.

2, DMX address encode with Dip-Switch(NO.1 to NO.9),comply to universal DMX512 dial code.

3, Dip-Switch NO.10 is termination for whole signal circle.

4, Dip-Switch NO.11 for Frequency option: ON 5000HZ(H), OFF 500Hz(L).

5, Dip-Switch NO.12 for Bit option: ON 16bit ,OFF 8bit.

NOTE: NO.11 and NO.12 change, come into operation when Re-Power on.

6, POWER IN DC12-24V, common anode constant voltage output, can meet all kinds of full color module andmonochrome module and automatically according to the lamps module load adjust output current, each channelmaximum current not more than 4 amps.

7, SELF-TESTING: put all Dip-Switch NO.1 to NO.9 off, full channels output 3 seconds, then each color gradient.

Instructions about Connection:

1, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output signal positive,signal nagative,signal ground with DE8504 input interface corresponding connection.

2, The DMX5000 output and DE8504's transmission lines can't be over 300 meters.

3, The DMX5000 each interface can connect with no more than 170 pieces of DE8504. Eight output interface. Through the JBLED FLASH light making software,it can realize infinite connectting the DMX lights with computer on-line controlling.

4, When contacting 32 pieces of DE8504, DMX signal must add a signal amplifier such as RE2000,cascade can't more than 4 PCS.

5, At the end of the connection, we should connect a DMX signal termination when putting on the the NO.10 dip switch of DE8504.
