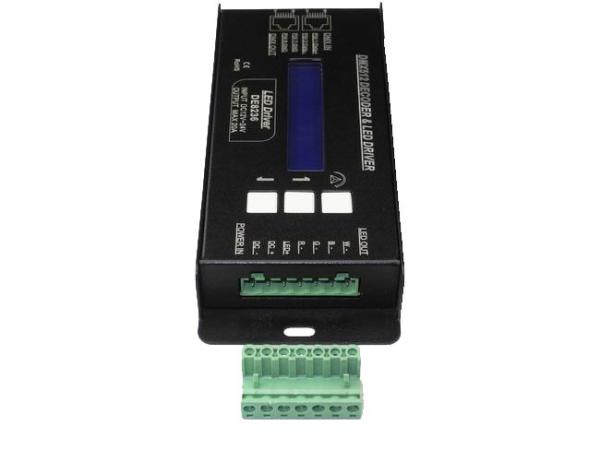

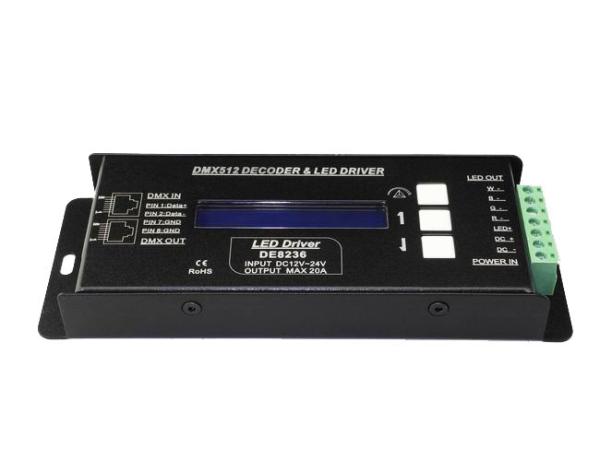

4 Channels dmx decoder Constant Voltage RGBW DMX512 RJ45 Pheonix Plug termials

Model : DE8236

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~4 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Product Features:

◆Meets DMX512/1990.
◆256-levels brightness,full-color with driver controls.
◆Power without flashing, low jitter free.

◆4 output channels, single channel maximum 5A output drive, total output is less than 20A.

◆Can achieve asynchronous color changes effect under working with controller.
◆With the light color selected mechanism, and be able to control the light with 1~4 colors.
◆Setting the DMX address freely.
◆Modularizing and can be matched with different LED module neatly.
◆Through the LCD1602 screen display menu.

Product Size :

Size:L170*W65*H24mm

Weight :200g

Product instructions:

Diagram:

Note :

DMX-512 control signal connection

◆DMX signal cable with three core belt shielding line (signal special wire), DMX signal positive, negative terminal crimping, in DMX signal line plug should be paid special attention to the polarity. The input interface and corresponding signal output from the DMX512 controller,signal is negative, and the connection of DE8236 signal.

◆The DMX5000 output and DE8236 transmission line can't exceed 300 meters.

◆Most DMX5000 each port connected 128 DE8236, the JBLED FLASH light system software can realize control and computer on-line, realize unlimited expansion cascade with DMX lamp.

◆Every connected 32 DE8236 control, DMX signal must be combined with a signal amplifier (such as: RE2000), cascade cannot be more than 4PCS.
