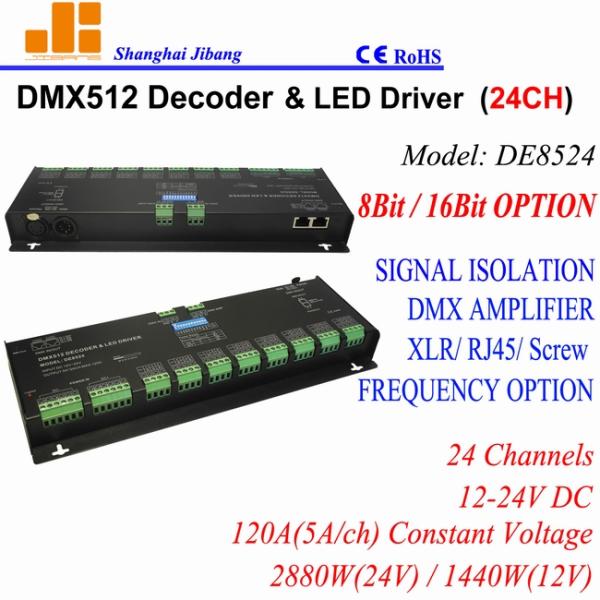

16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller
Specifications
Brand Name :
JIBANG
Model Number :
DE8524
Certification :
CE ROHS
Place of Origin :
SHANGHAI , CHINA
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
50000 pieces per week
Delivery Time :
7-10 work days
Packaging Details :
1pc / poly bag & inner box , 10pcs / carton
Input Signal :
DMX512 (1990)
Input Voltage :
12-24V
Output Voltage :
constant voltage
Output Current :
5A / CH x 24 channels
Dimension :
L290 x W122 x H33 mm
Weight :
910g
Warranty :
3 years
OEM :
Accepted
Description

DMX512 decoder 24CH RGBW for constant votlage LED fixture 8/16bit option H/L frequency option

Model : DE8524

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology , it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~24 Channels for option and each channel able to achieve 8bit/16bit levels of brightness , and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED .

Product Features:

◆Meets DMX512/1990 , with RJ45 interface and XLR to choose.

◆8bit/16bit option , High/Low frequency option , Signal isolation , DMX signal amplifier, full-color with driver control .

◆Power without flashing , smooth at low .

◆24 ways of output channel , single channel maximum 5A output drive , total output is less than 120A .

◆Can achieve asynchronous color changes effect under working with controller .

◆Setting the DMX address freely with Dip Switch .

◆Strong anti - interference ability ,humanized terminal design .

◆Custom-made available .

Control channels: 24CH

Input:: DC12-24V

Output: 5A/CH, MAX 112A

MAX Power:2688W(24V)/1344W(12V)

Frequency: 500Hz(L)/5000HZ(H)

Signal Isolation: > 1000V

Signal Input: DMX512/1990

The light gray level: 8bit/16bit

Protection Class: IP40

Gross Weight:: 920g

Product size: L290*W122*H33(mm)

Work Temp.: 0~70℃

16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller

Product Size :

Size:L290*W122*H33mm

Weight :910g

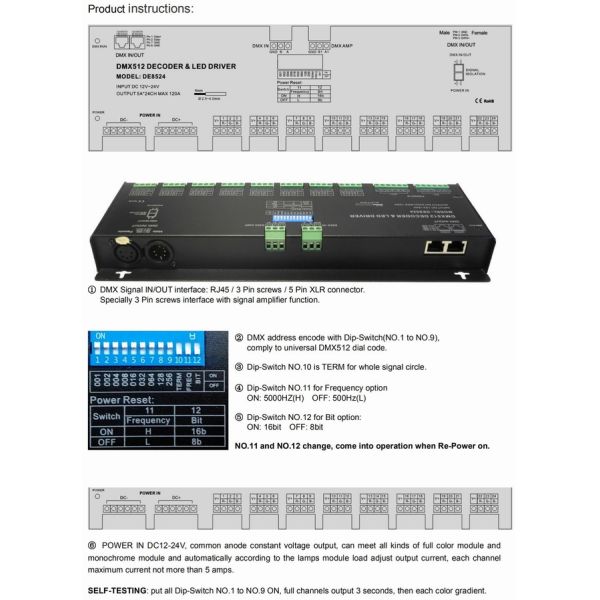

Product instructions:

16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller

Diagram:

16bit 12V - 24V RGWB DMX Controller , Constant Voltage DMX512 LED Driver Controller

Note :

DMX-512 control signal connection

◆ DMX signal cable is made of twisted pair ( line ) , DMX signal includes positive and negative end , in pressure welding DMX signal line plug should pay special attention to polarity . DMX512 controller output signal positive , signal negative , signal ground with DE8524 input interface corresponding connection .

◆ DMX5000 output and DE8524's transmission lines can't be over 300 meters .

◆ DMX5000 each interface can with not more than 16 pieces of DE8524. eight output interface . Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights .

◆ When connected 32 pieces of DE8524 , DMX signal must add a signal amplifier RE2000 . RE2000 Cascade can't more than 4 PCS.

FAQ

Why choose us ?
(1)We are a manufacturer specializing in the R&D of LED Controllers over 8 years in Shanghai .
(2)All our products got the CE , ROHS certificates .
(3)Three years warranty for all products .
(4)OEM/ODM are available for us .

How could I pay for it ?
T/T , Western Union ,Paypal and Credit Card are available for payment .


How fast can I get these products ?
Usually , samples order within 2-3 working days. Batch order within 5-7working days .


What should we do if having problems after receiving your goods ?
Quality is our culture.Strictly inspected before shipping . Once you receivedissatisfied products , please contact us freely in time,we will do our best to deal with .
