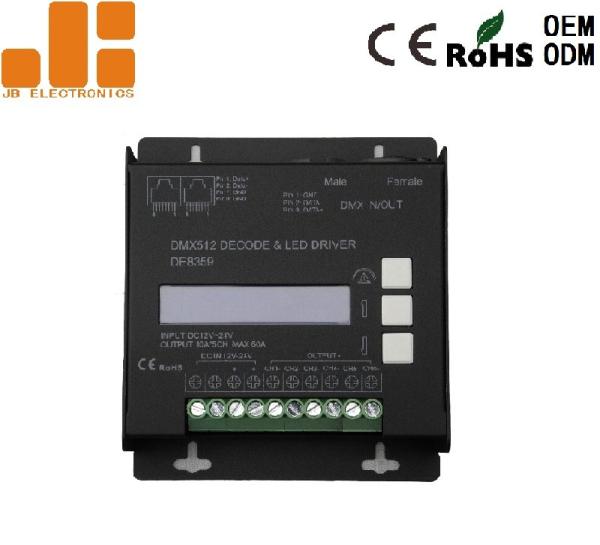

Self-dimming 10A*6CH Constant Voltage DMX512 Decoder

Model No. : DE8359 Manual Download: DE8359 EN.pdf

SUMMARIZE:

The DMX512 Decoder series adopt the advanced micro-computer control technology. It can convert the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.

The DE8359 can output 1~6 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It has been widelyly used in Landscaping and buildings lighting.

Product Features:

1, Meets DMX512/1990,with RJ45 interface and XLR to choose.

2, Can realize 256-levels brightness adjustment by the buttons.

3, Power without ashing, smooth at low.

4, 6 ways of output channel, single channel maximum 10A output drive, total output is less than 60A.

5, Can achieve asynchronous color changes effect under working with controller.

6, With the light color selected mechanism, and be able to control the light with up to 6 colors.

7, Setting the DMX address freely by LCD screen display.

8. Customized available and 3 years warranty.

Technical Parameters:

Operating instructions:

1. Through LCD screen display to show the program, switching menu options through mechanical buttons.

2, Press the top MENU button,recall the first program menu,

3, Through buttons UP and DOWN to choose the function.Press the MENU key to confirm.

4, Settingthe DMX address and dimming the lighting can press UP and DOWN to adjust.

5, If there is no operating within 5s, the LCD screen will be locked. Then please press the MENU button to
unlock it.

Product Wiring Diagram:
