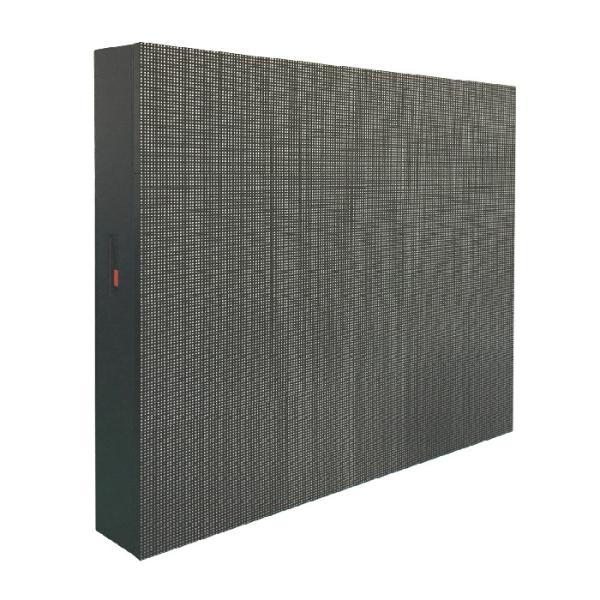

P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
Specifications
Brand Name :
VW
Model Number :
P4
Certification :
CE, ROHS
Place of Origin :
CN
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
3000sqm/month
Delivery Time :
15 work days
Packaging Details :
Plywood case
Chip Color :
RGB full color
Usage :
Outdoor fixed led video wall
Pixel Density :
65536 dots/sqm
Function :
popup pictures, zoom in/out, text in pictures
Application :
Hotel advertising billboard, outdoor led signs
Module Connection :
Locks
Warranty :
2 years
Lifespan :
100000 hours
Description

P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard

Product Description:

100% full front access fixed LED Display / 1000*1000mm Aluminum profile LED Panel / Wall-mounted outdoor LED screen / Waterproof LED Video wall / Outdoor LED screen without fan

P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway BillboardP4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard

Features:​

  • High brightness:the brightness can be over 6000nits, even 8000nits.
  • Flanless design:Good heat dissipation without fans
  • Front access:100% full front service, led module and power box all can be took out from front side.
  • Aluminum module:Aluminum bottom base of module, more stable and good heat dissipation.

Technical Parameters:

Product Model: P2.5 P3 P3.076 P3.33 P3.33 P4 P4
Pixel Pitch: 2.5mm 3mm 3.076mm 3.33mm 3.33mm 4mm 4mm
LED Type: SMD1415 SMD1415 SMD1415 SMD1921 SMD1921 SMD1921 SMD1921
Cabinet Dimension: 960x960mm 960x960mm 960x960mm 960x960mm 960x960mm 1024x1024mm 960x960mm
Module Size: 160×160mm 192×192mm 192×192mm 160×160mm 320×160mm 256×128mm 320×160mm
Maintenance Rear service Rear service Rear service Rear service Rear service Rear service Rear service
Cabinet Weight: 38 kg 38 kg 38 kg 38 kg 38 kg 38 kg 38 kg
Cabinet Material: Steel Steel Steel Steel Steel Steel Steel
Driving Type: 1/16 1/16 1/13 1/12 1/12 1/8 1/10
Brightness: 5500 nits 5500 nits 5000 nits 5500 nits 5500 nits 6500 nits 5500 nits
Max/Avg Power: 800/280 W/m2 800/280 W/m2 800/280 W/m2 800/280 W/m2 800/280 W/m2 800/280 W/m2 800/280 W/m2
Environment: Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor
IP Rating: IP65 IP65 IP65 IP65 IP65 IP65 IP65
Refresh Rate: >1920 Hz >1920 Hz >1920 Hz >1920 Hz >1920 Hz >1920 Hz >1920 Hz
Installation Type:

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging
Gray Scale: 14 bit 14 bit 14 bit 14 bit 14 bit 14 bit 14 bit
Viewing Angle: H:140°；V:120° H:140°；V:120° H:140°；V:120° H:140°；V:120° H:140°；V:120° H:140°；V:120° H:140°；V:120°
Operational Temp: -20℃~+60℃ Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor
Operational Humidity: 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH

Product Model: P5 P5 P5.926 P6 P6.67 P8 P8
Pixel Pitch: 5mm 5mm 5.926mm 6mm 6.67mm 8mm 8mm
LED Type: SMD1921 SMD1921 SMD2727 SMD2727 SMD3535 SMD3535 SMD3535
Cabinet Dimension: 960x960mm 960x960mm 960x960mm 960x960mm 960x960mm 960x960mm 960x960mm
Module Size: 160×160mm 320×160mm 320×160mm 192×192mm 320×160mm 256×128mm 320×160mm
Maintenance Rear service Rear service Rear service Rear service Rear service Rear service Rear service
Cabinet Weight: 38 kg 38 kg 38 kg 38 kg 38 kg 38 kg 38 kg
Cabinet Material: Steel Steel Steel Steel Steel Steel Steel
Driving Type: 1/8 1/8 1/7 1/8 1/6 1/4 1/5
Brightness: 5200 nits 5200 nits 5800 nits 5000 nits 5500 nits 5500 nits 5800 nits
Max/Avg Power: 800/280 W/m2 800/280 W/m2 800/280 W/m2 800/280 W/m2 800/280 W/m2 800/280 W/m2 800/280 W/m2
Environment: Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor
IP Rating: IP65 IP65 IP65 IP65 IP65 IP65 IP65
Refresh Rate: >1920 Hz >1920 Hz >1920 Hz >1920 Hz >1920 Hz >1920 Hz >1920 Hz
Installation Type:

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging

Mounting

/Hanging
Gray Scale: 14 bit 14 bit 14 bit 14 bit 14 bit 14 bit 14 bit
Viewing Angle: H:140°；V:120° H:140°；V:120° H:140°；V:120° H:140°；V:120° H:140°；V:120° H:140°；V:120° H:140°；V:120°
Operational Temp: Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor
Operational Humidity: 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH

Product Model: P10 P16
Pixel Pitch: 10mm 16mm
LED Type: SMD3535 SMD3535
Cabinet Dimension: 960x960mm 1024x1024mm
Module Size: 320×160mm 256×256mm
Maintenance Rear service Rear service
Cabinet Weight: 38 kg 38 kg
Cabinet Material: Steel Steel
Driving Type: 1/2 Static
Brightness: 6000 nits 6500 nits
Max/Avg Power: 800/280 W/m2 800/280 W/m2
Environment: Outdoor Outdoor
IP Rating: IP65 IP65
Refresh Rate: >1920 Hz >1920 Hz
Installation Type: Mounting/Hanging Mounting/Hanging
Gray Scale: 14 bit 14 bit
Viewing Angle: H:140°；V:120° H:140°；V:120°
Operational Temp: Outdoor Outdoor
Operational Humidity: 10%~90% RH 10%~90% RH

Application:

  • Wharf Mall
  • Train station
  • Theme Park
  • Outdoor activity area
  • Building exterior wall
  • creative modeling
  • Park entrance

P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard

FAQ

Q1: How fast can I get reply from your company?
A1: during working days, usually within 30 minutes, you will get reply from our professional sales team

Q2:What pixel pitch can you provide? And what product do you have?
A2 :Indoor Series from P1.25 to P10, outdoor from P2.5 to 100. Matrix Displays offers a wide range of LED displays, manufacturing,sales, and exportation of indoor and outdoor rental led display, LED Sphere, LED cube, LED transparent window glass display, and customized led projects etc.

Q3;What kind of sending/receiving cards are used in this system?
A3: Nova/Colorlight/Linsn; mostly, NOVA STAR used

Q4:What is the operating power of the system?
A4:Global working voltage, from 90V to 264V

Q5:What is the frame update frequency?
A5:50HZ // 60HZ

Q6: Why do you recommend to use OFR die casting aluminum cabinet?
A4: Because OFR die casting aluminum cabinet is light and thin, the screen will looks beautiful, meantime easily for installation. And if you need to use the screen for rental in the future, OFR can do that, too.

Q7: Are you trading company or manufacturer?
A5: VISUAL WORLD is a professional LED display manufacturer, having been enrolled in led display industry with professional
R&D team and skilled QC team for 10 years.
