Specifications
Brand Name :
VW
Model Number :
P2.85
Certification :
EMC,CE,FCC,ROHS
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1000sqm per month
Delivery Time :
3-6 work days
Packaging Details :
Plywood case, export carton box
Product Name :
P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show
Pixel Pitch :
2.85mm,4mm, 6.67mm
IP Level: :
IP67
Module Size :
320x320x37mm
Maintenance :
Front service
Cabinet Material :
Die-casting Aluminum
Cabinet Weight :
15kg/sqm
Brightness :
5000nits
Description

P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show

Product Description:

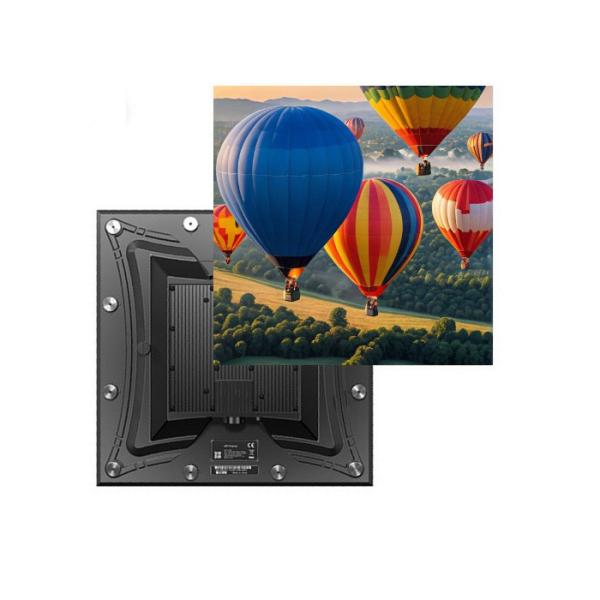

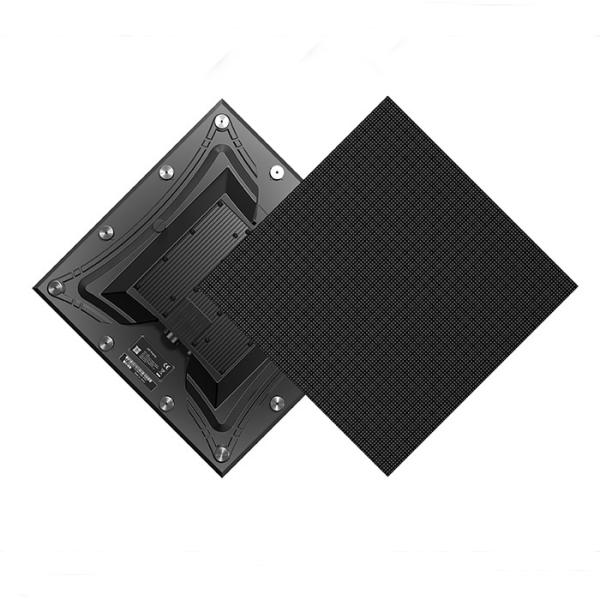

320x320mm Smart LED module / Modular Design / less weight, high protection, easy to rig / IP67 protection level, waterproof and anti-salt / Easy to assemble, install, and maintain / Signal and power cable all in one.

P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show

Technical Parameters:

Product Model: P2.85 P4 P6.67
Pixel Pitch: 2.85 mm 4 mm 6.67 mm
LED Type: SMD1921 SMD1921 SMD2727
Cabinet Dimension: 320×320x37 mm 320×320x37 mm 320×320x37 mm
Module Size: 320x320 mm 320x320 mm 320x320 mm
Cabinet Weight: 15 kg 15 kg 15 kg
Cabinet Material: Aluminum Aluminum Aluminum
Driving Type: 1/16 1/16 1/6
Brightness: >4500 nits >5000 nits >5000 nits
Max/Avg Power: 800/200 W/m2 800/200 W/m2 800/200 W/m2
Maintenance: Front service Front service Front service
Environment: Outdoor Use Outdoor Use Outdoor Use
IP Rating: F: IP67, R: IP67 F: IP67, R: IP67 F: IP67, R: IP67
Refresh Rate: >3840 Hz >3840 Hz >3840 Hz
Installation Type: Mounting/Hanging Mounting/Hanging Mounting/Hanging
Gray Scale: 14 bit 14 bit 14 bit
Viewing Angle: H:140°；V:160° H:140°；V:160° H:140°；V:160°
Operational Temp: -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Operational Humidity: 10%~90% RH 10%~90% RH 10%~90% RH

Features:

P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show

  • LIGHT WEIGHT

​Die-casting aluminum material, only 15kg/sqm, save shipping cost.

P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show

  • INTEGRATED DESIGN

Integrate power supply, receiving card and module into one cabinet.

P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show

  • Waterproof IP67
High protection level, Waterproof and dustproof, VO grade fireproof material is used, Safe and reliable

P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show

  • 45° BEVELEDGE DESIGN

45° Beveledge design, various shapes splicing

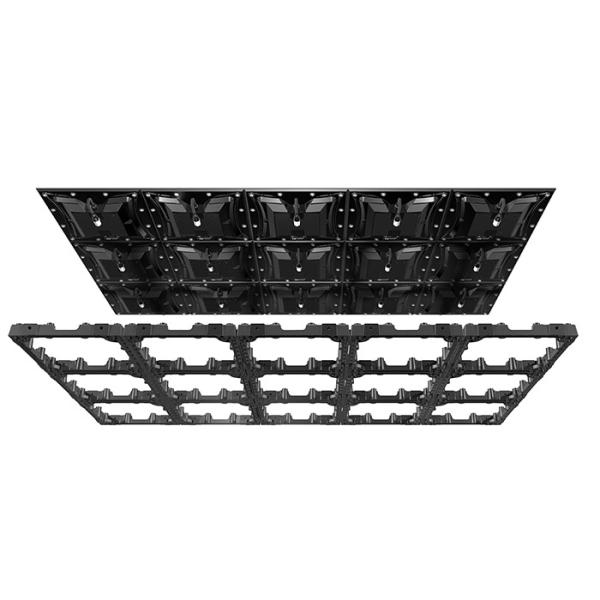

Installation Method
Wall mounted
Cabinet type
Floor standing
Arc-shaped installation
hoisting

P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show

Application:

  • Shop guide desk
  • Park entrance
  • Gallery showcase
  • Outlets storefront
  • Arc video wall

P2.85 Smart Outdoor Fixed LED Screen 320x320mm Perfect Visual Performance For Show

Service and support:

Our comprehensive service system is designed to cater to your needs at every stage.

Pre-sale services include prompt responses to inquiries within 24 hours, market research and forecasts, customized solutions tailored to your requirements, and the provision of data sheets and samples. We also offer additional services such as custom packing and arranging factory visits.

In-sale process, we ensure continuous monitoring of production, provide photos and videos upon request, and include free spare parts to enhance your experience.

After-sales support, we address complaints within 24 hours and offer maintenance guidance and solutions within 48 hours. A 24-month warranty, free technician training, and a complete set of documents, including an installation guide, software manual, maintenance guide, and control system software CD back our services.

FAQ:

Q1: Can you accept the sample orders?

A1: Yes, we accept sample orders for quality verification and market testing.

Q2: Does there have any warranty?

A2: Yes, a two-year warranty for all products.

Q3: Can I have my logo printed on the product?

A3: Absolutely. Please inform us beforehand and confirm the design based on our sample before production begins.

Q4: What is your delivery time?
A4: Typically, delivery takes 7-15 days after the deposit is received. However, the exact time depends on the order size and items.

Q5: What is your warranty policy?
A5: We offer a 2-year warranty. We also provide full support for structure design, installation issues, system troubleshooting, and screen usage. Our professional after-sales team, along with your dedicated sales engineer, will assist with any questions you may have after your order.
