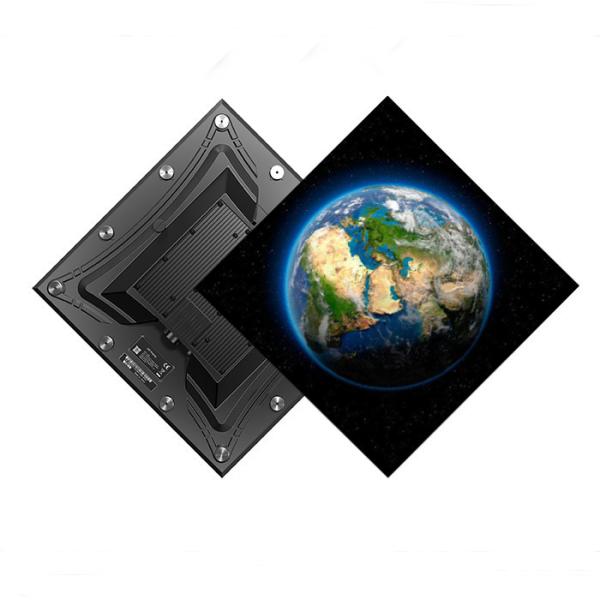

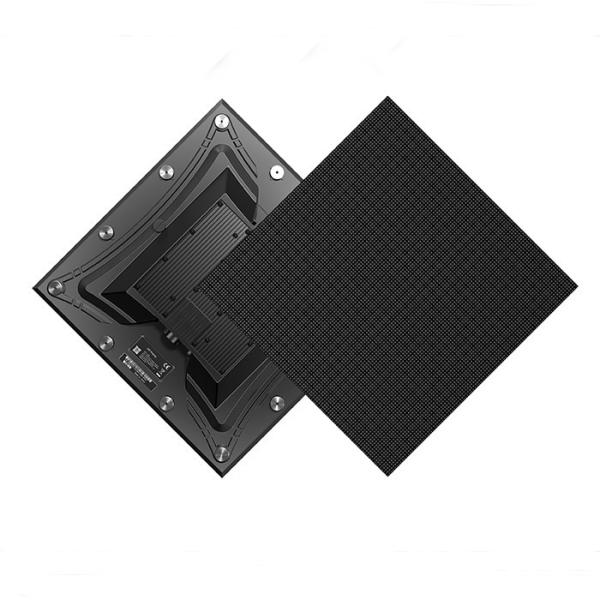

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
Specifications
Brand Name :
VW
Model Number :
P4
Certification :
EMC,CE,FCC,ROHS
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1000sqm per month
Delivery Time :
3-6 work days
Packaging Details :
Plywood case, export carton box
Product Name :
P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits
Pixel Pitch :
2.85mm,4mm, 6.67mm
IP Level: :
IP67
Module Size :
320x320x37mm
Maintenance :
Front service
Cabinet Material :
Die-casting Aluminum
Cabinet Weight :
15kg/sqm
Brightness :
5000nits
Description

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits

Product Description:

320x320mm Smart LED module / Modular Design / less weight, high protection, easy to rig / IP67 protection level, waterproof and anti-salt / Easy to assemble, install, and maintain / Signal and power cable all in one.

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits

Technical Parameters:

Product Model: P2.85 P4 P6.67
Pixel Pitch: 2.85 mm 4 mm 6.67 mm
LED Type: SMD1921 SMD1921 SMD2727
Cabinet Dimension: 320×320x37 mm 320×320x37 mm 320×320x37 mm
Module Size: 320x320 mm 320x320 mm 320x320 mm
Cabinet Weight: 15 kg 15 kg 15 kg
Cabinet Material: Aluminum Aluminum Aluminum
Driving Type: 1/16 1/16 1/6
Brightness: >4500 nits >5000 nits >5000 nits
Max/Avg Power: 800/200 W/m2 800/200 W/m2 800/200 W/m2
Maintenance: Front service Front service Front service
Environment: Outdoor Use Outdoor Use Outdoor Use
IP Rating: F: IP67, R: IP67 F: IP67, R: IP67 F: IP67, R: IP67
Refresh Rate: >3840 Hz >3840 Hz >3840 Hz
Installation Type: Mounting/Hanging Mounting/Hanging Mounting/Hanging
Gray Scale: 14 bit 14 bit 14 bit
Viewing Angle: H:140°；V:160° H:140°；V:160° H:140°；V:160°
Operational Temp: -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Operational Humidity: 10%~90% RH 10%~90% RH 10%~90% RH

Features:

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits

  • LIGHTWEIGHT

​Die-casting aluminum material, only 15kg/sqm, saving shipping costs.

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits

  • INTEGRATED DESIGN

Integrate power supply, receiving card, and module into one cabinet.

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits

  • Waterproof IP67
High protection level, Waterproof and dustproof, VO grade fireproof material is used, Safe and reliable.

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits

  • 45° BEVELEDGE DESIGN

45° Beveledge design, various shapes splicing

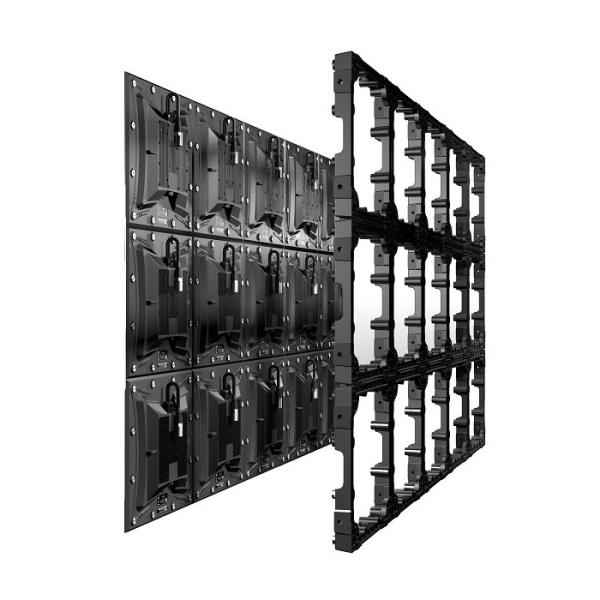

Installation Method
Wall mounted
Cabinet type
Floor standing
Arc-shaped installation
Hoisting

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits

Application:

  • Shopping Mall
  • Park entrance
  • Gallery and exhibition
  • Outlets storefront
  • Arc video wall

P4 Smart Outdoor Fixed LED Screen 320x320x37mm Cabinet High Brightness 5000nits

Service and support:
  • Pre-Sale Service

We prioritize timely responses, addressing inquiries within 24 hours. Our team provides customized market research and forecasts tailored to your unique needs, offering professional, personalized solutions. Datasheets and samples are available upon request. Additional services, such as custom packaging design and factory tours, can also be arranged to meet your preferences.

  • In-Sale Service

Throughout the production process, we maintain transparent communication, offering updates via photos and videos upon request. Spare parts are included at no additional cost, ensuring seamless support during the sale.

  • After-Sale Service

We address complaints within 24 hours and provide maintenance guidance or problem resolution within 48 hours. All products come with a 24-month warranty. We offer free technician training to enhance your team’s expertise. A comprehensive set of documents is included at no cost, featuring installation instructions, software operation manuals, maintenance guides, and control system software CDs.

FAQ:

Q1: Can you accept sample orders?

A1: Yes, we accept sample orders for quality verification and market testing purposes.

Q2: Do your products come with a warranty?

A2: Yes, all our products are backed by a two-year warranty.

Q3: What is the freight cost?
A3: The shipping cost varies based on the weight of the order. We will select the most cost-effective and secure shipping method according to your specific quantities.

Q4: How does your factory ensure quality control?
A4: Quality is our top priority. Each product is fully assembled and undergoes rigorous testing before being packed and shipped.

Q5: Can the product be customized with a logo?
A5: Yes, we offer logo customization. Please share and confirm the logo design details with our team before production begins.
