Specifications
Brand Name :
VW
Model Number :
P1.25
Certification :
EMC,CE,FCC,ROHS
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
2000sqm per month
Delivery Time :
3-6 work days
Packaging Details :
Plywood case, export carton box
Product Name :
P1.25 Flexible LED Display Screen 240*120mm Magnets Front Service Creative Designs
Pixel Pitch :
P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4
Module Size :
240*120mm
Curved Angle :
110°-180°
Cabinet Material :
Steel cabinet with painting
Module Weight :
0.2kg
Brightness :
600-1000 nits
Maintenance :
Magnets front service
Description

P1.25 Flexible LED Display Screen 240*120mm Magnets Front Service Creative Designs

Product Description:

The P1.25 Flexible LED Display Screen features a unique design with stable, advanced functionality. Its high flexibility and superior HD performance make it a better choice for outdoor LED displays compared to traditional models.

P1.25 Flexible LED Display Screen 240*120mm Magnets Front Service Creative Designs

Features:

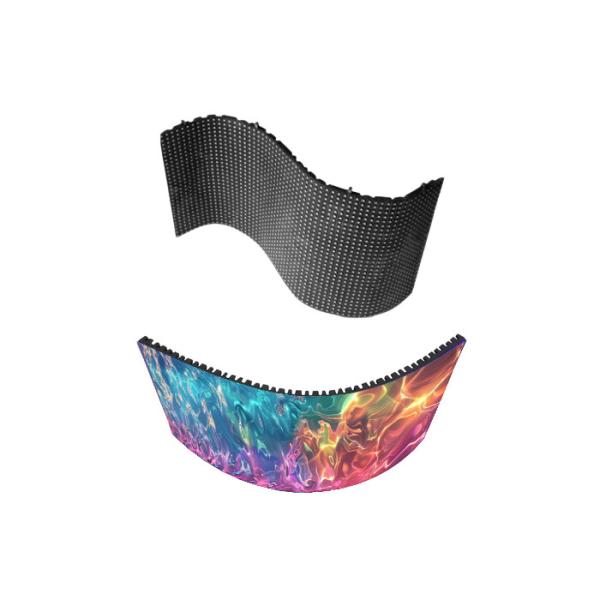

  • Flexible Design

Soft PCB allows bending for versatile installations.

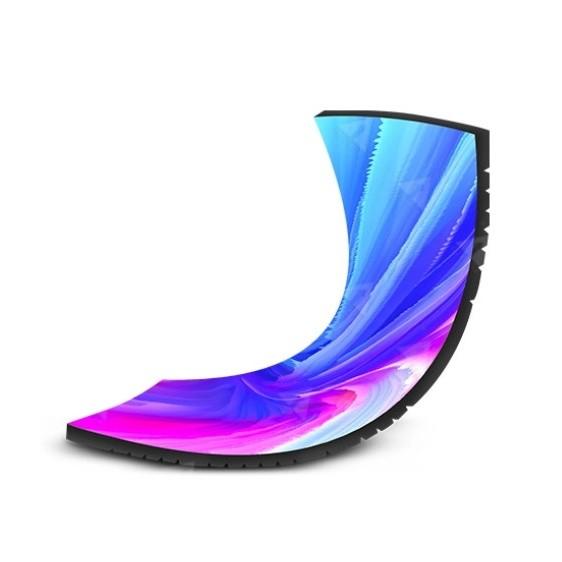

  • Curved Display

Supports angles from 110° to 180°, both inner and outer curves.

  • Multiple Shapes

Adapts to round, convex, concave, S-shaped, and other irregular designs.

  • Magnetic Front Service

Easy front maintenance with magnetic modules; optional safety rope for secure high-position installations.

Technical Parameters:

Product Model: P1.25 P1.579 P1.667 P1.875
Pixel Pitch: 1.25 mm 1.579 mm 1.667 mm 1.875 mm
LED Type: SMD1010

SMD1212

SMD1212 SMD1515
Module Resolution: 192*96 pixels 152*76 pixels 144*72 pixels 128*64 pixels
Module Size: 240*120mm 240*120mm 240*120mm 240*120mm
Module Weight: 0.215 kg 0.203 kg 0.195 kg 0.216 kg
Cabinet Material: Iron with painting Iron with painting Iron with painting Iron with painting
Driving Type: 1/48 1/38 1/36 1/32
Brightness: 600-1000 nits 600-1000 nits 600-1000 nits 600-1000 nits
Max Power: 19 w/pcs 19 w/pcs 19 w/pcs 19 w/pcs
Maintenance: Front & Rear service Front & Rear service Front & Rear service Front & Rear service
Environment: Indoor Use Indoor Use Indoor Use Indoor Use
IP Rating: F: IP20, R: IP20 F: IP20, R: IP20 F: IP20, R: IP20 F: IP20, R: IP20
Refresh Rate: >3840 Hz >3840 Hz >3840 Hz >3840 Hz
Installation Type: Mounting / Hanging Mounting / Hanging Mounting / Hanging Mounting / Hanging
Gray Scale: 14 bit 14 bit 14 bit 14 bit
Viewing Angle: H:140°;V:140° H:140°;V:140° H:140°;V:140° H:140°;V:140°
Operational Temp: -40℃~+60℃ -40℃~+60℃ -40℃~+60℃ -40℃~+60℃
Operational Humidity: 10%~90% RH 10%~90% RH 10%~90% RH 10%~90% RH

Application:

  • Creative Designs: Adaptable for unique shapes (cubes, spheres, ribbons) and customizable angles.

  • Outdoor Advertising: Scalable, durable, excellent heat dissipation, long lifespan, low maintenance.

  • 360° Displays: Ultra-thin, lightweight, bendable up to 180°, versatile shapes (cylinders, ribbons).

P1.25 Flexible LED Display Screen 240*120mm Magnets Front Service Creative Designs

P1.25 Flexible LED Display Screen 240*120mm Magnets Front Service Creative Designs

Service and support:

Pre-Sale Services

  • Quick Responses: Inquiries addressed within 24 hours.

  • Market Analysis: Research and forecasts for better decision-making.

  • Customized Solutions: Tailored proposals to fit specific needs.

  • Samples Available: Datasheets and sample units for evaluation.

  • Extra Services: Custom packaging and factory visits upon request.

In-Sale Services

  • Production Updates: Regular progress reports.

  • Visual Tracking: Photos/videos are provided upon request.

  • Free Spare Parts: Complimentary extras for reliability.

After-Sales Support

  • Fast Issue Resolution: Complaints are handled within 24 hours, and solutions within 48 hours.

  • Warranty Coverage: 24-month product warranty.

  • Technical Training: Free training sessions for technicians.

  • Complete Documentation: Includes installation, software, and maintenance guides, plus control system software CD.

FAQ:

Q1. How about your delivery time?
A1: Cenerally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q2. Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. What is your sample policy?
A3: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test for 72hrs before delivery.

Q5: How do you make our business long-term and good relationship?
A5: First. We keep good quality and competitive price to ensure our customers benefit ;
Second. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come.
