P1.25 Flexible LED Display Screen SMD1010 600-1000nits14bit IP20 For S-shaped
Product Description:
The P1.25 Flexible LED Display Screen features a unique design with stable, advanced functionality. Its high flexibility and superior HD performance make it a better choice for outdoor LED displays compared to traditional models.
Features:

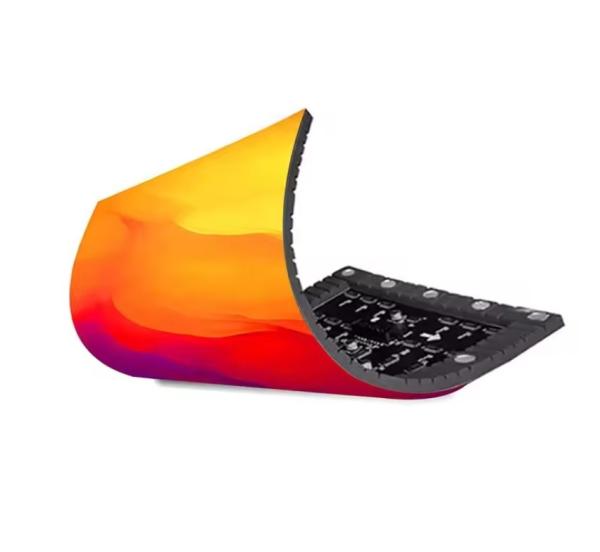

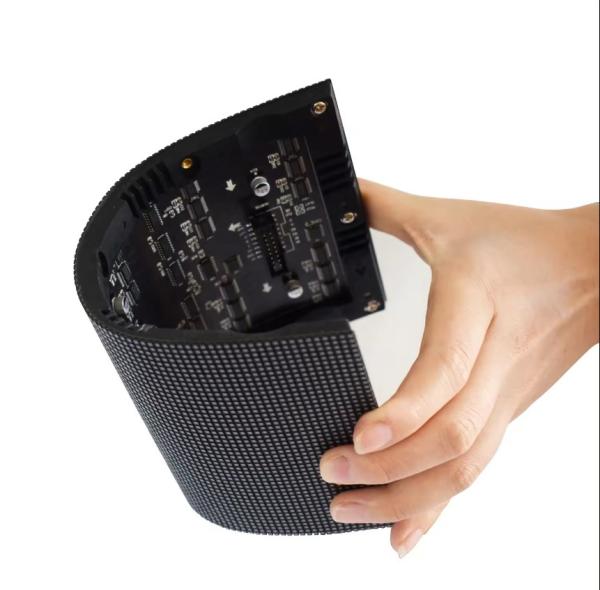

Soft PCB allows bending for versatile installations.

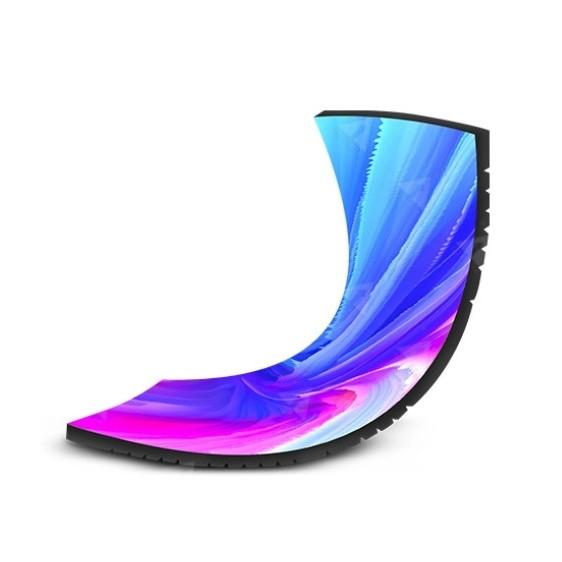

Supports angles from 110° to 180°, both inner and outer curves.

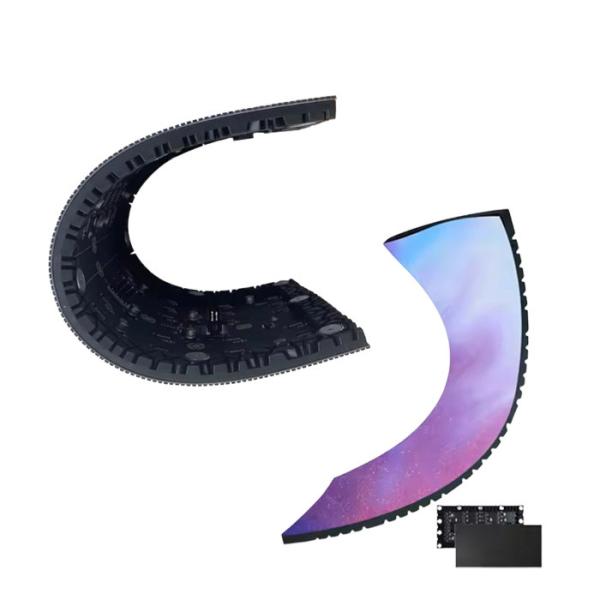

Adapts to round, convex, concave, S-shaped, and other irregular designs.
Easy front maintenance with magnetic modules; optional safety rope for secure high-position installations.
Technical Parameters:
Product Model: | P1.25 | P1.579 | P1.667 | P1.875 |
Pixel Pitch: | 1.25 mm | 1.579 mm | 1.667 mm | 1.875 mm |
LED Type: | SMD1010 | SMD1212 | SMD1212 | SMD1515 |
Module Resolution: | 192*96 pixels | 152*76 pixels | 144*72 pixels | 128*64 pixels |
Module Size: | 240*120mm | 240*120mm | 240*120mm | 240*120mm |
Module Weight: | 0.215 kg | 0.203 kg | 0.195 kg | 0.216 kg |
Cabinet Material: | Iron with painting | Iron with painting | Iron with painting | Iron with painting |
Driving Type: | 1/48 | 1/38 | 1/36 | 1/32 |
Brightness: | 600-1000 nits | 600-1000 nits | 600-1000 nits | 600-1000 nits |
Max Power: | 19 w/pcs | 19 w/pcs | 19 w/pcs | 19 w/pcs |
Maintenance: | Front & Rear service | Front & Rear service | Front & Rear service | Front & Rear service |
Environment: | Indoor Use | Indoor Use | Indoor Use | Indoor Use |
IP Rating: | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 |
Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
Installation Type: | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging |
Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit |
Viewing Angle: | H:140°;V:140° | H:140°;V:140° | H:140°;V:140° | H:140°;V:140° |
Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Application:
Creative Designs: Adaptable for unique shapes (cubes, spheres, ribbons) and customizable angles.
Outdoor Advertising: Scalable, durable, excellent heat dissipation, long lifespan, low maintenance.
360° Displays: Ultra-thin, lightweight, bendable up to 180°, versatile shapes (cylinders, ribbons).
Service and support:
Quick Responses: Inquiries addressed within 24 hours.
Market Analysis: Research and forecasts for better decision-making.
Customized Solutions: Tailored proposals to fit specific needs.
Samples Available: Datasheets and sample units for evaluation.
Extra Services: Custom packaging and factory visits upon request.
Production Updates: Regular progress reports.
Visual Tracking: Photos/videos are provided upon request.
Free Spare Parts: Complimentary extras for reliability.
Fast Issue Resolution: Complaints are handled within 24 hours, and solutions within 48 hours.
Warranty Coverage: 24-month product warranty.
Technical Training: Free training sessions for technicians.
Complete Documentation: Includes installation, software, and maintenance guides, plus control system software CD.
FAQ:
Q1: Is there a warranty for your LED display products?
A1: Yes, we offer a two-year warranty on all our products.
Q2: Can I order a sample of the Adhesive Transparent LED display?
A2: Absolutely! We accept sample orders for quality verification and market evaluation.
Q3: How do you ensure quality control at your factory?
A3: Quality is our priority. Each product undergoes complete assembly and strict testing before packaging and shipment.
Q4: Do you provide custom designs for unique LED display shapes?
A4: Yes, we specialize in creating custom LED displays tailored to specific shapes and design requirements.
Q5: How are shipping costs determined?
A5: Shipping costs depend on weight and destination. We choose the most cost-effective and secure shipping method based on your order size.
