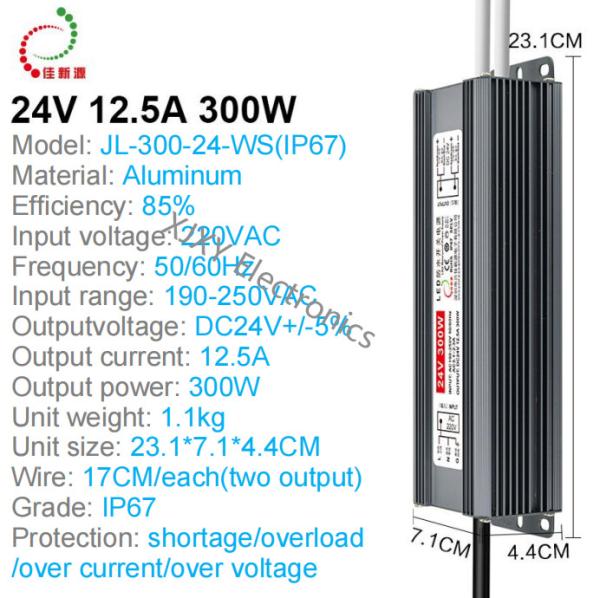

IP67 LED Driver Ultra Thin 24V 300W 12.5A Light Strips Module Light Power Supply
IP67 Waterproof LED Driver ultra thin 24V 300W 12.5A wall light box signboard light module led power supply transformer

Quick Detail:

• Ultra thin body, U hook shape, All silence design, Pure copper wires
• AC/DC switching 24V 300W 12.5A single-switch LED driver
• 1600V High voltage test, full loading test and old aging test
• Application in LED light strip, light box, module, signboard light, line light, wall wash light, underground light, led tube and so on
• IP67 grade
• CE & RoHS, CCC approvals

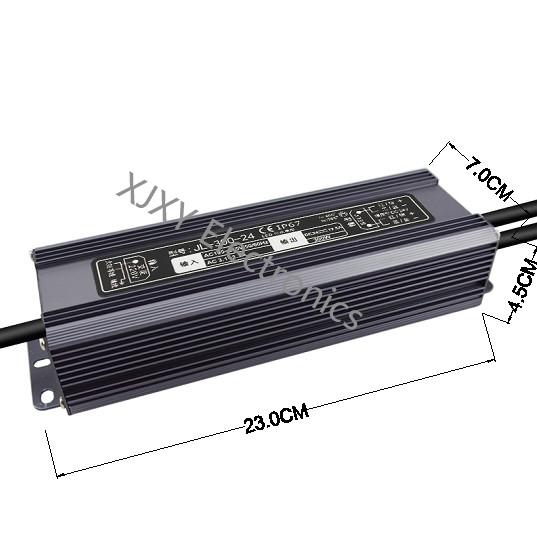

• Unit Size: 23.0*7.0*4.5CM &
• Unit Weight: 1000g

Description:
All these products adopt PWM high-frequency pulse width modulation technology, mature standardized production, strict 100% load-carrying aging, high and low voltage impact experiments and complete test records for development & production of LED driver through strictly quality control system and highly responsible attitude, thus have a good quality feedback during application.



Specifications:

Related models list as below:
Waterproof series for line light, signboard light and lamp house:

Applications:
Widely used in LED Lighting, LED display, LED strips, LED advertisement screen, LED sign, LED night light, LED lamp house, LED decoration, LED wall light, LED street light , LED wall light, LED backlight, LED tube, offices , hospital , schools , factories , plants, shopping malls, supermarkets, kitchen, fair cabinet and so on.

Usage instruction

1. Under normal conditions of use, it will be one year warranty based on date of flag, product fails during the warranty period, and test by the company are quality problems , which means free warranty.

2. The following conditions are not within the scope of warranty

(1) Not follow the specification required and damaged.

(2) Users remove internal components which caused damaged unit.

(3) Water deep into the box;

(4) The serious damage or deformation of shape;

(5) The body dates being erased or altered;

(6) Terminal block burned;

3. Maximum responsibility for defectives products is a replacement of the same model and the same number of products
