5V LED Driver 300W 60A Punch Light LED Module LED Display Aluminum Power Supply

5V LED Driver 300W 60A punch light LED module aluminum 50/60Hz LED transformer

Quick Detail:

• Indoor type aluminum shell
• AC/DC switching 5V 300W 60A single-switch LED driver
• AC input voltage: 90-130V or 170-250V
• 1600V High voltage test, over loading test and old aging test

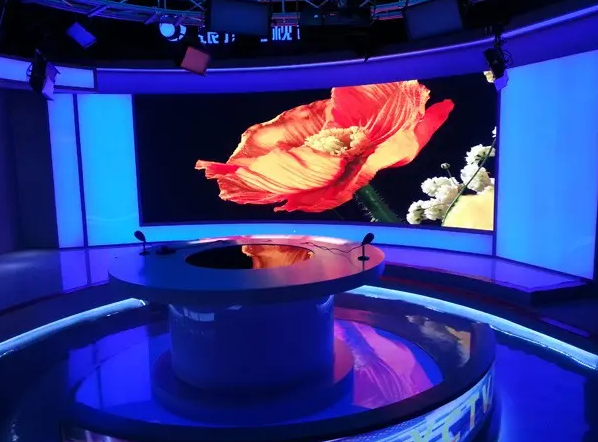

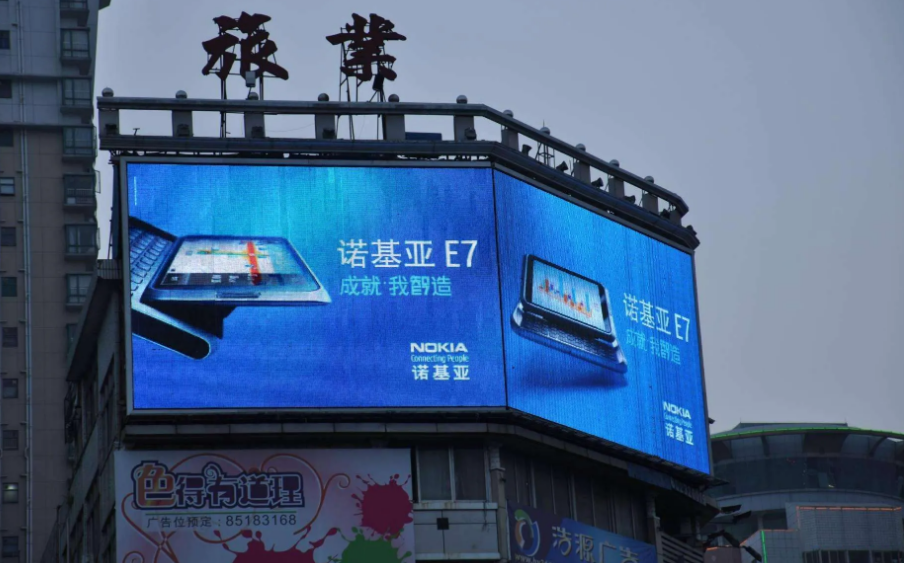

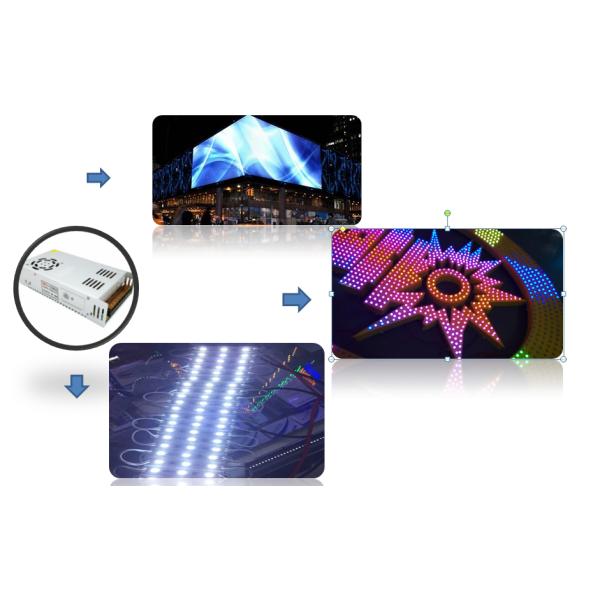

• Constant voltage driver apply for LED module, LED display and punch light
• Size: 21.4*11.4*5.0CM
• Weight: 810g

Specifications:

Notices:

1. Input voltage should be within the specified voltage range (for examples: input voltage 220VAC).

2. Prohibited to be used in the high temperature environment, power port is the thermal vents, wind 50CM range, please do not place other objects, make sure that the power should have good thermal dissipation space environment.

3. Prohibited to install power supply in the presence of flammable materials (such as wood products, flammable plastic, etc), to stay away from petrol stations or where prohibited Fireworks.

4. Accurate calculation of load power, peak use, suggested user to use power supply based on power 80% load, do not overload.

5. Power supply have built-in short circuit protection function, when output short circuit, the power will automatically enter the status. Power off after 1 minute and then power on.

6. For safety, properly grounded, the output power cable must be ≥2.5mm²

7. Strictly in accordance with the position indicated by the output terminals of the power supply. It must be firm, check the output line and prohibited to be reversed (input "220VAC" main line, output "+" loaded for positive cathode, output "-" load for negative cathode).

5V Indoor types list:

S-300W-60A 5V 300W 60A Input voltage:90-130V or 170-250V 810g 21.4*11.4*5.0cm

S-350W-70A 5V 350W 70A Input voltage:90-130V or 170-250V 825g 21.4*11.4*5.0cm

FAQ

1. How many models you produce for indoor 5V series?

A: There are three models----5V 200W 40A, 5V 300W 60A and 5V 350W 70A etc.

2. Do you have CE, ETL approval?

A: we don’t have such approvals for 5V series, but we can supply CE and ETL approvals if you require.

3. Can I place a sample order?

A: Yes, sample order is available

4. What about lead time?

A: 3-5 days for sample, 8-15 working days for mass production orders

5. Which tests do you carry out in your factory?

A: We do over load test, 1600V high voltage test and 100% old age test.

6. What is MOQ for led driver?

A: MOQ usually is 200-500pcs except sample order.

7. How do you ship the goods and how long does it take to arrive?

A: We ship by sea, by railway, by air and by express. It all depends on requirements from customers

8. How about payment terms?

A: We usually use T/T as popular payment terms, but we can discuss with each other.

9. OEM and ODM is acceptable?

A: Yes, OEM or ODM is acceptable.

10: How to deal with the defectives?

A:

Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.3%.

Secondly, during the warranty period, we will send new goods together with new order for small quantity.

Thirdly, for defective batches, we will investigate into the true problems happened, find the real reasons and discuss the suitable solution including recall them based on real situation.

The overview of Switching power supply

Switching power supply is a device which use modern power electronics technology to control time ratio of switching tube open and off and maintain a stable output voltage of power supply, switching power supply is generally composed of IC and MOSFET which is controlled through pulse width modulation (PWM) compared with linear power. The cost of switching power supply increases with the increase of output power, but the growth rate is different. Linear power cost is higher than switching power supply at a certain output power point, which is called cost reversal point. With the development and innovation of power electronics technology and switching power supply technology constantly innovating, this cost reversal point is increasingly moving to low output power end, which provides a broad development space for switching power supply.

Switching power high-frequency is the direction of its development, high-frequency will make switching power miniaturization and make switching power into a wider range of applications, especially in the field of high-tech applications, promoting high-tech products miniaturization and portability.

In addition, the development and application of switching power supply are of great significance in energy saving, resource saving and environmental protection.The main power electronic devices used in switching power supply are diode, IGBT and MOSFET.

SCR has a small number of applications in switching power supply inputting rectifier circuit and soft start circuit, GTR is difficult to drive with low switching frequency and gradually replaced by IGBT and MOSFET.

Three conditions of switching power supply

1. Switching: power electronic devices work in the switching state rather than linear state

2. High frequency: power electronic devices work at high frequency rather than low frequency close to power frequency

3. DC: switching power supply output is DC rather than AC
