6 Digits Digital Clock Countdown Timer , Bus Station Digital Countdown Clock For Wall
6 Digits Digital Clock Countdown Timer , Bus Station Digital Countdown Clock For Wall
Specifications
Brand Name :
Linger
Model Number :
LG-LCT6D300R-3
Certification :
CE / ROHS
Place of Origin :
Jiaxing ,Zhejiang ,China (Mainland)
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100Units/ Per Month
Delivery Time :
7 - 10 Days
Packaging Details :
1unit in 1 Carton / 10 units in 1 Wooden Case
Tube Chip Color :
Red
Digit Height :
12'' 300mm
Format :
88 : 88 : 88
Sign Size mm :
370*1500*100
Controller :
IR Remote / PVC Buttons Box / Windows Software
Display Function :
Time
Cabinet :
Aluminium Frame / Iron Cabinet
Usage :
Outdoor
Description

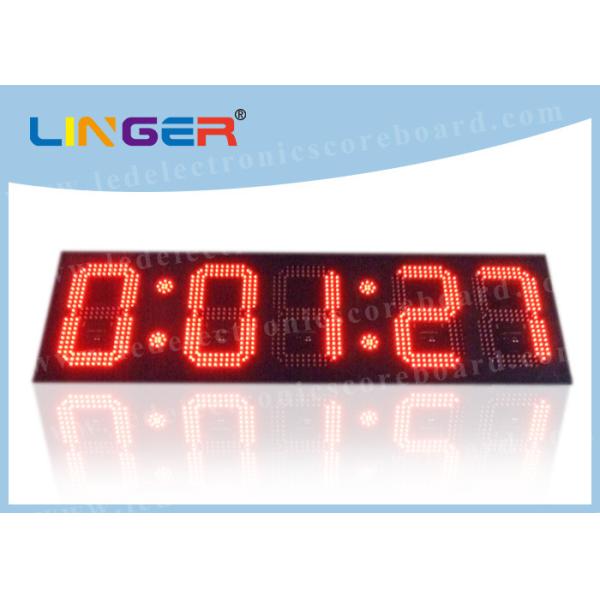

6Digits 12inch 300MM Number Height LED Countdown Timer Clock for Bus Station

PRODUCT PARAMETER
Format : 88 : 88 : 88 Color : Red
Display Size : 370mm x 1500mm Thickness : 100mm
Digit Size : 12'' 300MM Housing : Iron Cabinet
Communication1 : IR Remote Communication Distance : IR = 10M
Communication2 : Wire Communication Distance : RS232 = 50M
Communication3 : Wireless Communication Distance : RF433 =1000M
Output Voltage : 5V Volatge Input : 110V ~ 240V AC
Brightness : 5000cd / M2 Working Temp : -30℃ ~ +65℃
Viewing Angle : > 100° Working Humidity : 5% - 90% RH
Life Span : 100,000 Hours Waterproof : IP65

Timer Descripition

Specification​ :

1) Use of the environment: Outdoor and Indoor

2) Brightness: High Level Brightness

​ 3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30'' ect.

4) Number Color Option : Red / Green / Amber / Blue / White

5) Frame Color : Black Color (Any other kind is Option)

​Overall Structure :

​ 1) Display Sign Include : Numbers ,Controller , Cabinet / Frame ,Power Supply

2) Frame : Iron / Steel

3) Faceplate​ : Display window cover glass​ board and UV Protection

4) Drainage Outlet at the bottom of the Frame

5) Fans install inside of scoreboard

Technical Norms​ :

1) Power Supply : 110V ~ 240V

2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity

Operation Type :

1) Controller Type : IR Remote / PVC Buttons Controller Box / Windows Software

2) Communication Type : IR / Hard - wire / Wireless Type

3) Operation Distance : 10m ~ 1200m.

4) Operation Power : Remote with Battery / Controller Box with 110v ~ 240v Power

Life Time of Leds : 100000 Hours

Installation : Hanging / Mounting / Tripod / With wheels / Custoized Design

Delivery Time : 7days ~ 12days

Warranty : 2 Years

Package Dimension : 440mm x 1570mm x 170mm

Dimensions / Function

Dimension:

Model Timer Size Package Dimension
8'' 200mm 300mm x 1000mm x 100mm 370mm x 1070mm x 170mm
10'' 254mm 350mm x 1200mm x 100mm 420mm x 1270mm x 170mm
12'' 300mm 370mm x 1500mm x 100mm 440mm x 1570mm x 170mm
16'' 400mm 610mm x 1950mm x 100mm 680mm x 2020mm x 170mm
20'' 500mm 700mm x 2200mm x 100mm 770mm x 2270mm x 170mm
24'' 600mm 770mm x 2570mm x 100mm 840mm x 2640mm x 170mm
30'' 750mm 920mm x 3140mm x 100mm 990mm x 3210mm x 170mm

Timer Function:

1.Display : Hours : Minutes : Seconds (Support 12/24 Hour)

2.Count up : Count from zero to 99 hours 59 minutes 59 seconds

3.Countdown : Count from 99 hours 59 minutes 59 seconds to zero

4.Stopwatch : minutes, seconds and 1/100 of seconds format,zero up to 99:59:99

5.Interval timer: interval repeating countdown/ count up timer, max 99 rounds

Available Option:

* Install GPS inside as Clock ,then it can search time and Display AUTO.

* Timer can work by Battery .

* Colon between the digits can be dark and the timer can be used to display Sports / Game Scores.

* Extra Function to display Temperature.

About Sample

 1. Existing samples can be provided but not for free of charge.  2. Customized size and layout design are welcome.
 3. Sample will be finished about one week.
 4. Photos for sample will be sent to confirm befor the shippment.
 5. Good after-sale service - any quality problem , we will do our best to help solve the problem.

6. Large size sample will shipped by air or sea . Sample with small size and light will send by express.

FAQ

Are you a manufacture?

A : Yes, we are a manufacture with rich experience.

Can I visit your factory ?

A : Welcome ! The nearest air port is Shanghai Pudong International Airport.

How does your factory do Quality Control?

A : Quality is 1st priority. We always attach great importance to quality controlling from

raw material suppliers. We have professional QC team to inspect the products.

Can you add my own LOGO on the product?

A : Yes, customized logo are welcome. OEM and ODM is OK for us.

Can we use our own shipping agent?

A : Yes, you can. We had cooperated with many forwarders. If you need ,we can

recommend some forwarders to you and you can compare the price and services.

Cautions when using Scoreboard

1. Confirm the Scoreboard Input Power is 110V or 220V .110V input power are unable to use by 220V

power socket.

2. Controller box is not waterproof, please avoid to touch the water.

3. Don’t change any electronic part if there is no any professional technician.

4. Not for Children under 12Years.

5. Stored in a dry environment, avoid direct sunlight.

6. Avoid heavy objects hit the front galss board.
