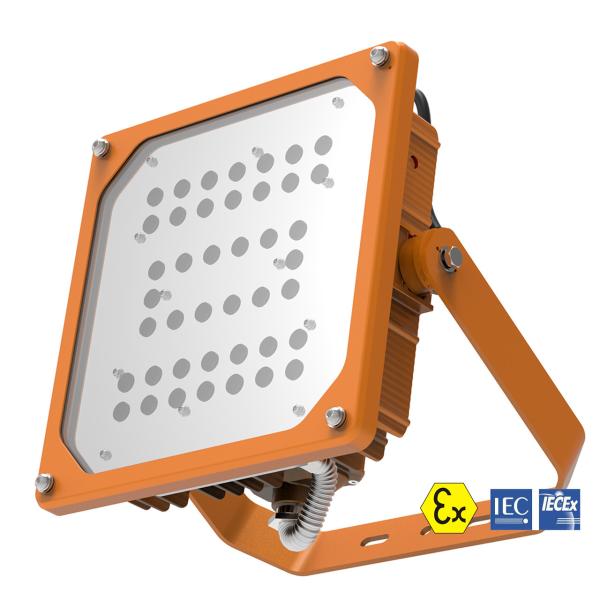

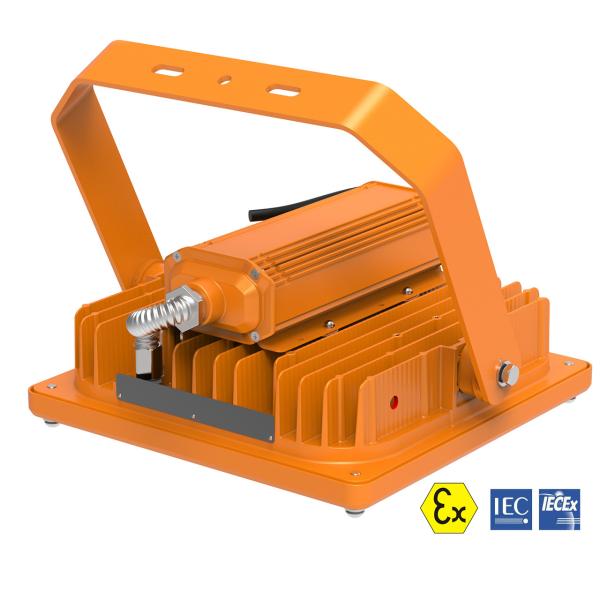

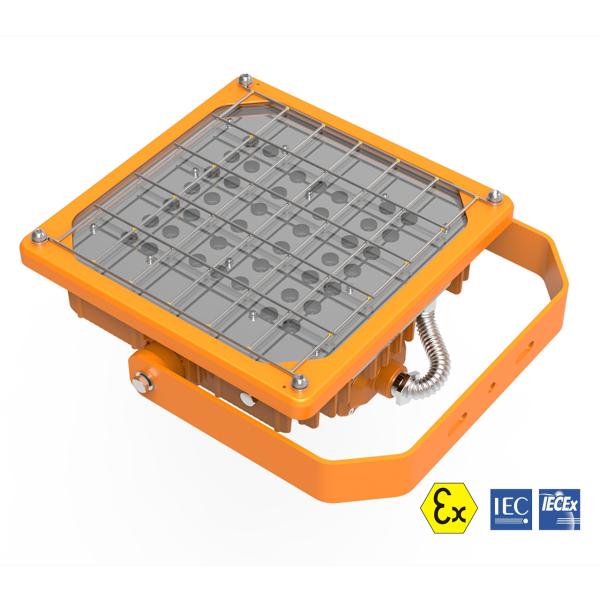

80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting
80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting
80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting
80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting
80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting
80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting
80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting
80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting
Specifications
Brand Name :
KHJ
Model Number :
Ex-KBB80,Ex-KBB100,Ex-KBB120, Ex-KBB150
Certification :
ATEX,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs per day
Delivery Time :
3-8 work days
Packaging Details :
420*420*185mm
Product Name :
Brown Bear Series
Operating Voltage :
100~277 VAC, 141~392 VDC
Power :
80W,100W,120W,150W
Luminaire Efficacy :
142lm/W
Area Classification :
Group II ,Zone 2 & 22
Lifespan :
>50,000 hours
Power Factor :
＞0.98
THD :
＜10%
Description

Explosion proof LED lights high bay light in Hazardous Area Zone 2 Brown Bear Series

Explosion proof LED lights high bay light in Hazardous Area Zone 2

80W/100W/120W/150W

Brown Bear Series

Highlight: Explosion proof LED lights Zone 2, high bay LED Explosion Proof Light.

Features And Benefits:

1. High Lumen Output LED

2. Robust aluminium alloy housing.

3. Strong tempered glass.

4. 5KV Surge Protection.

5. Long service life with warranty of up to 5 years.

6. Low maintenance.

7. With power of 80W,100W,120W,150W optional.

8. Ambient temperature from -40℃to 55℃.

Product Important Information:

Type Of Protection Ex nR,Ex tc
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-15,(IEC)EN 60079-31

EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,

EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,

IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction

Zone 2 Areas to (IEC)EN 60079-10-1,

Zone 22 Areas to (IEC)EN 60079-10-2
Installation (IEC)EN 60079-14
Certificate TÜV 15 ATEX 7672 X
Equipment Coding

Ex nR IIC T5 or T6 Gc

Ex tc IIIC T95℃ or T85℃ Dc
Temperature Class Rated Power Rated Voltage -40℃ ≤ Ta ≤ +65℃ -40℃ ≤ Ta ≤ +55℃
Gas Dust Gas Dust
80W

100~277VAC

50Hz/60Hz

 T5 T95℃ T6 T85℃
100W / / T5 T85℃
120W
150W
ATEx Coding 80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area LightingII 3 G / II 3 D
Ingress Protection IP66 (IEC)EN 60529
Cable entry M20*1.5 or M25*1.5 and 3/4 NPT
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.

The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC

Type Examination and compliance with the Essential Health and Safety Requirements

Applications:
LED Explosion Proof Lights certified for Zone 2& Zone 22 applications, designed for very large and high hazardous areas like Oil & Gas, Power Generation, Chemical and Petrochemical etc.
80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting

Ordering information:

P/N Operating Voltage(V) Luminous Flux(lm) Power(W) CRI Color Temp. CCT(K) Temp. Classification
-40℃-+55℃ -40℃-+65℃
Ex-KBB80*WM-E

100-277 AC

(141-392 DC)

 10500 80 70 Warm white 3000±300 T6 T5
Ex-KBB80*NH-E 11340 80 70 Natural white 4000±300 T6 T5
Ex-KBB80*NH-E 11340 80 70 Natural white 5000±300 T6 T5
Ex-KBB80*CH-E 11340 80 70 Cool white 5700±300 T6 T5
Ex-KBB100*WM-E 13125 100 70 Warm white 3000±300 T6 /
Ex-KBB100*NH-E 14175 100 70 Natural white 4000±300 T6 /
Ex-KBB100*NH-E 14175 100 70 Natural white 5000±300 T6 /
Ex-KBB100*CH-E 14175 100 70 Cool white 5700±300 T6 /
Ex-KBB120*WM-E 15750 120 70 Warm white 3000±300 T5 /
Ex-KBB120*NH-E 17010 120 70 Natural white 4000±300 T5 /
Ex-KBB120*NH-E 17010 120 70 Natural white 5000±300 T5 /
Ex-KBB120*CH-E 17010 120 70 Cool white 5700±300 T5 /
Ex-KBB150*WM-E 19687 150 70 Warm white 3000±300 T5 /
Ex-KBB150*NH-E 21262 150 70 Natural white 4000±300 T5 /
Ex-KBB150*NH-E 21262 150 70 Natural white 5000±300 T5 /
Ex-KBB150*CH-E 21262 150 70 Cool white 5700±300 T5 /

Remarks:

1. * Stands for beam angle,including H5V5 / H6V6/FW;

2. For Beam angle H5V5,the luminous flux will be 15% less;

3. For Beam angle FW,the luminous flux will be 30% less.
