Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved
Specifications
Brand Name :
KHJ
Model Number :
Ex-PLB120,Ex-KPLB150
Certification :
UL,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs per day
Delivery Time :
3-8 work days
Packaging Details :
485*315*250mm
Product Name :
Ex-Polarbear Series
Operating Voltage :
100-277 VAC/141-392 VDC
Power :
120W 150W
Luminaire Efficacy :
147lm/W
Divivsion :
Class I Division 2,Group A, B ,C ,D
Insulation Class :
Ⅰ
Surge Protection :
5KV
LED Driver :
Over voltage protection/short circuit protection
Description

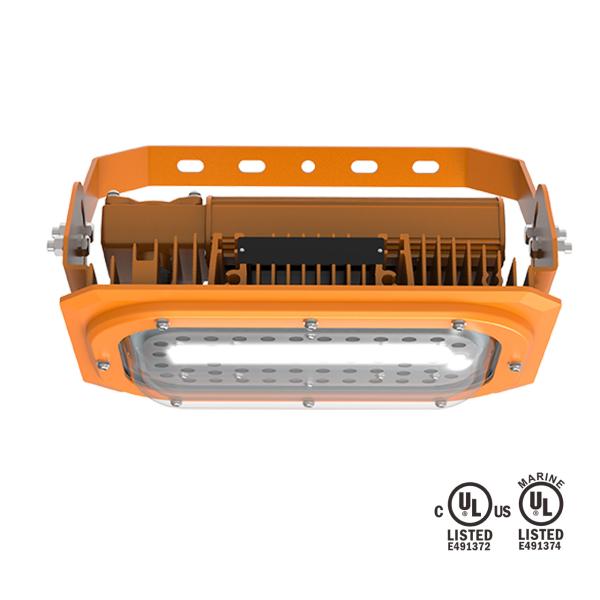

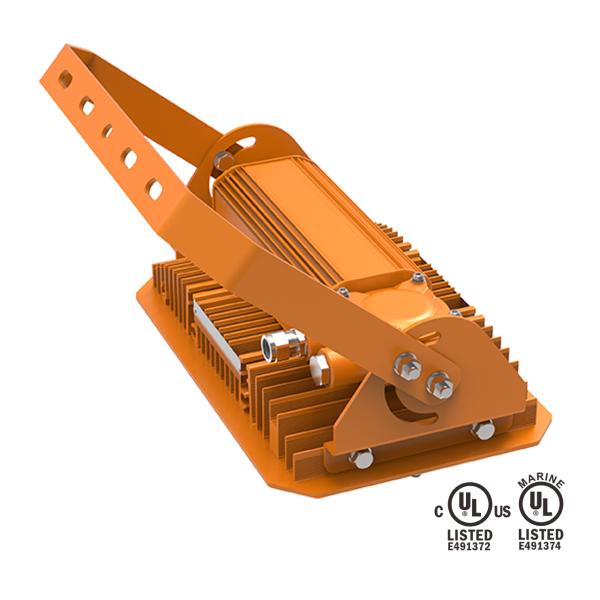

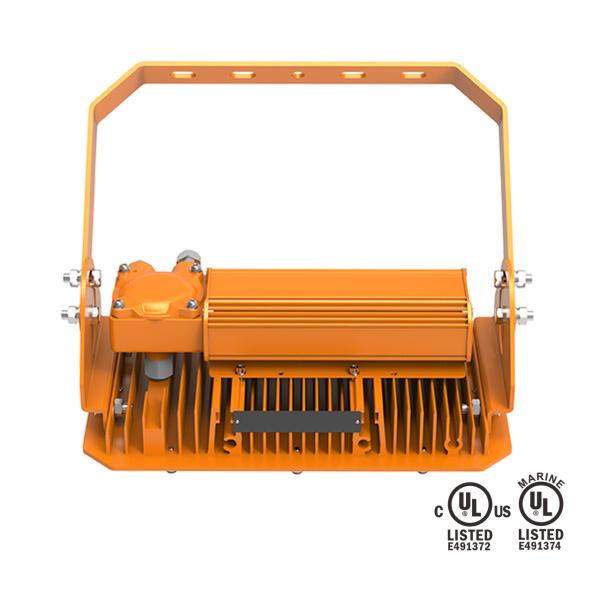

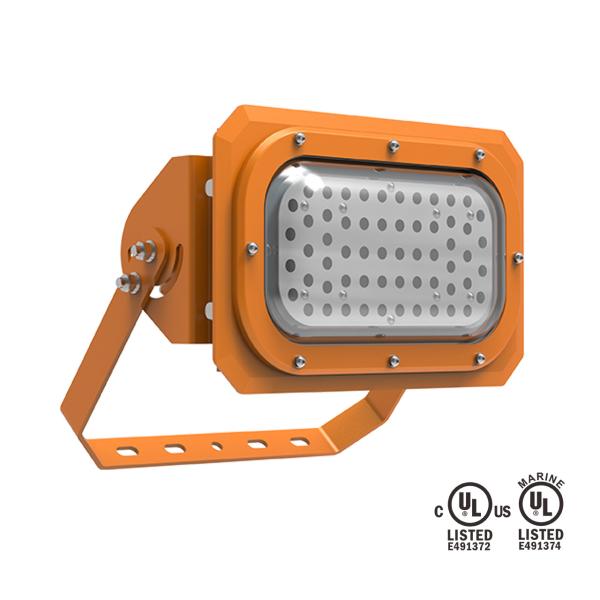

Energy saving LED Hazardous area explosion proof light UL Approved 120W 150W

Ex-Polarbear Series Explosion Proof LED Light 120W 150W.

Highlight: UL Listed LED Explosion proof flood lighting.

Features And Benefits:

1. UL Classified Explosion proof LED light for hazardous and harsh environments.

2. Designed for Class I Division 2, Group A,B,C,D.

3. Energy Saving – High lumens per watt.

4. Copper-free aluminum alloy housing and tempered glass, shock and vibration resistant.

5. Equipped with Junction box for easier connection, no additional Junction box needed.

6. Easy installation and low maintenance.

7. Ambient temperature from -40℃ to 55℃.

8. 5 Years performance warranty.

Product Important Information:

Type Of Protection Class Ⅰ Division 2
Protection Standards

UL 844 - Luminaires for Use in Hazardous
UL 1598 - Luminaires.
UL 8750 - Light Emitting Diode (LED) Equipment for Use in Lighting Products
UL 1598A - Supplemental Requirements for Luminaires for Installation on Marine Vessels
CSA C22.2 No. 137-M1981 - Electric Luminaires for Use in Hazardous Locations
CSA C22.2 No. 250.0-08 - Luminaires
CSA C22.2 No. 250.13 - Light Emitting Diode (LED) Equipment for Lighting Applications.
Area Classfiction Division Ⅱ
Installation NFPA70
Certificate 20170914-E491372
Equipment Coding

Class Ⅰ Division 2, Groups A,B,C,D
UL 1598A
UL 1598
Temperature Class Rated power (W) -40℃ ≤ Ta ≤ +50℃ -40℃ ≤ Ta ≤ +45℃ -40℃ ≤ Ta ≤ +40℃
120W-150W T4 T4A /
UL Coding Class Ⅰ
Ingress Protection IP66 (IEC)EN 60529
Cable entry M20*1.5 or M25*1.5 and 3/4 NPT
UL Mark

The UL marking of this product applies to NEC 500.
The Equipment is declared to meet the provisions of the NEC 500 by reason of the UL.
Type Examination and compliance with the Essential Health and Safety Requirements.

Applications:
The Polarbear series Explosion proof led lights are Suitable for Class I Division 2, Group A,B,C,D hazardous areas, such as petrochemical or pharmaceutical facilities ,heavy industrial, chemical, , onshore and offshore platforms, manufacturing plants, shipyard, electric power, loading docks, wastewater treatment.
Energy Saving 120W 150W Led Hazardous Area Light Explosive Proof Light UL Approved

Ordering information:

P/N Operating Voltage(V) Luminous Flux(lm) Power(W) CRI Color Temp. CCT(K) Class I, Division 2 Groups A,B,C,D
-40°C to 40°C -40°C to 45°C -40°C to 50°C
Ex-KPLB120*WM-UL-E

100-277 AC(141-392 DC)

 16380 120 70 Warm white 3000±300 T4A T4A T4
Ex-KPLB120*NH-UL-E 17640 120 70 Natural white 4000±300 T4A T4A T4
Ex-KPLB120*NH-UL-E 17640 120 70 Natural white 5000±300 T4A T4A T4
Ex-KPLB120*CH-UL-E 17640 120 70 Cool white 5700±300 T4A T4A T4
Ex-KPLB150*WM-UL-E 21840 150 70 Warm white 3000±300 T4A T4A T4
Ex-KPLB150*NH-UL-E 23520 150 70 Natural white 4000±300 T4A T4A T4
Ex-KPLB150*NH-UL-E 23520 150 70 Natural white 5000±300 T4A T4A T4
Ex-KPLB150*CH-UL-E 23520 150 70 Cool white 5700±300 T4A T4A T4

Remarks:

1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6 /FW;

2. For Beam angle H1V1,H4V4 and H5V5,the luminous flux will be 15% less;

3. For Beam angle FW the luminous flux will be 30% less.
