LED explosion proof lights, 5-60W dimmable, for maintenance and workover
LED explosion proof lights, 5-60W dimmable, for maintenance and workover
LED explosion proof lights, 5-60W dimmable, for maintenance and workover
LED explosion proof lights, 5-60W dimmable, for maintenance and workover
LED explosion proof lights, 5-60W dimmable, for maintenance and workover
LED explosion proof lights, 5-60W dimmable, for maintenance and workover
LED explosion proof lights, 5-60W dimmable, for maintenance and workover
LED explosion proof lights, 5-60W dimmable, for maintenance and workover
Specifications
Brand Name :
KHJ
Model Number :
Ex-KSTB24
Certification :
ATEX,IECEx,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs per day
Delivery Time :
3-8 work days
Packaging Details :
680*370*285mm
Product Name :
Saturn Series
Operating Voltage :
100-277 VAC, 141-391VDC
Power range :
5W-60W
Luminaire Efficacy :
126lm/W
Area Classification :
Group II Zone 1 & 21 and 2 & 22
Lifespan :
>50,000 hours
Battery Rated Capacity :
12Ah
Rated Capacity :
Lead-acid batteries
Description

LED explosion proof lights, 5-60W dimmable, for maintenance and workover

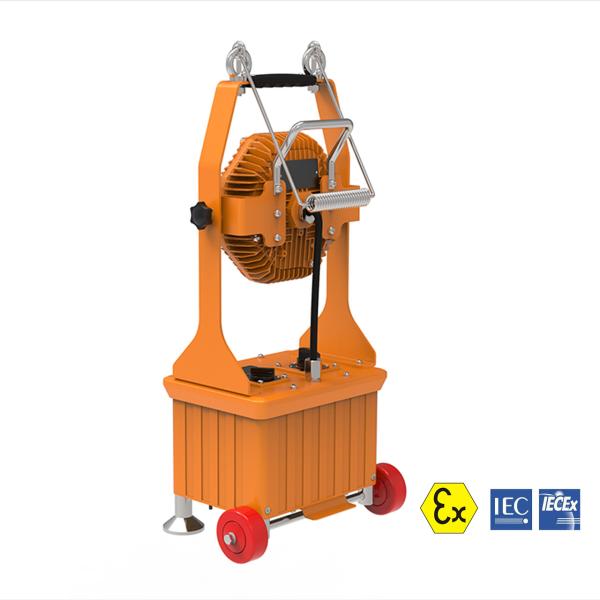

Ex-Saturn Series Explosion Proof LED mobile light,5-60W

Highlight: LED Explosion proof Mobile Lighting Zone 1&2,Zone 2&22

Features And Benefits:

1. Using high efficacy LUMI LED source,high output.

2. 5-60W dimmable .Providing better lighting and extending the working time.

3. Rechargeable lead acid batteries with 4~12 hours battery backup.

4. Robust, durable and lightweight construction.

5. ATEX Certified.

Product Important Information:

Type Of ProtectionEx d e
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8

Area ClassfictionZone1 & Zone 2 Areas to (IEC)EN 60079-10-1,
Installation(IEC)EN 60079-14
CertificateATExECM 17 ATEX-B TD45
IECExIECEx CQM 16.0005X
Equipment CodingEx d e IIC T5 Gb IP54
Temperature Class-20℃ ≤ Ta ≤ +55℃
ATEx CodingLED explosion proof lights, 5-60W dimmable, for maintenance and workoverII 2 G
Ingress ProtectionIP54 (IEC)EN 60529
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and Safety Requirements

Applications:
Can be widely used for hazardous area Zone 1&2 ,Zone 21&22.
1.Oil tank
2.Railway
2.Refineries
4.Power station
5. For workover and maintenance
LED explosion proof lights, 5-60W dimmable, for maintenance and workover

Ordering information:

P/N

Operating Voltage(V)

Color Temp.

CCT(K)

Power

(W)

CRI

Luminous Flux(lm)

Temp. Classification

-20℃

~+55℃

Ex-KSTB24V12FFWM-U-E

100~277 AC(141 ~392 DC)

Warm white

3000±300

15701740

T5

30703480
60706950

Ex-KSTB24V12FFNH-U-E

Natural white

4000±300

15701890
30703780
60707560

Ex-KSTB24V12FFNH-U-E

Natural white

5000±300

15701890
30703780
60707560

Ex-KSTB24V12FFCH-U-E

Cool white

5700±300

15701890
30703780
60707560


What are our advantages?
1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
3. Provide high quality products and best service.
4. Good production capacity and fast delivery.
