Specifications
Brand Name :
KHJ
Model Number :
KBSP01
Certification :
ATEX,IECEx,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3-8work days
Packaging Details :
Negotiable
Product name :
KBSP01 Series Explosion Proof Electrical Equipment
Enclosure material :
Aluminum alloy enclosure, power coated surface,industrial gray with dark lines texture(RAL7035)
Exposed fastener :
Stainless steel
Rated voltage :
20～50V AC,100～130V AC, 200～250V AC, 380～415V AC, 480～500V AC, 600～690V AC
Rated current :
10A, 16A, 25A, 32A, 50A, 63A,100A, 125A
Poles :
2P(2P+PE)、3P(2P+PE)、4P(3P+PE)、5P(3P+N+PE)
Frequency :
50Hz / 60Hz
Degree of protection :
IP66
Description

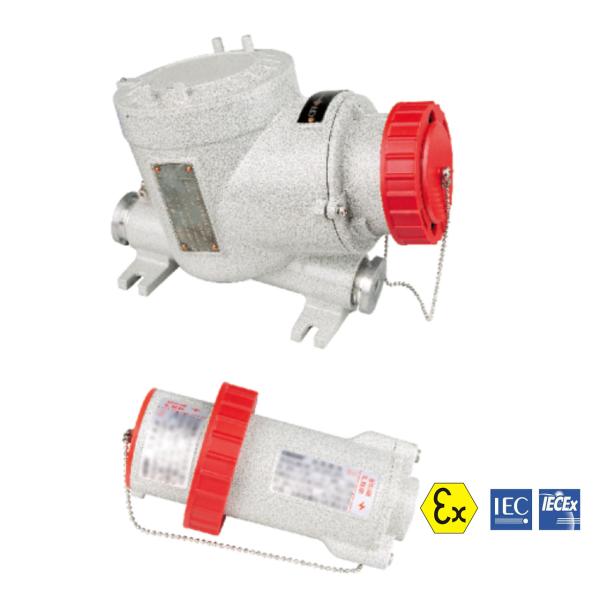

KBSP01 Series Explosion Proof Electrical Equipment Explosion proof Plug and Sockets

Application and Features:

● Explosion protection
- IECEx (IEC)-IECEx SIR 20.0010X
- ATEX (CENELEC, EN)-CSANe 20ATEX1069X
- China Ex(GB)
● Application in hazardous area
Zone 1 and Zone 2, Zone 21 and Zone 22
● Flame-proof type enclosure,four types of enclosure. eight kinds of current classes10A, 16A, 25A, 32A, 50A, 63A, 100A, 125A, and four kinds of pole numbers 2P, 3P, 4P, 5P.
● Reliable interlocking function, the plug can be pulled out only after the power switch is off,and the power switch can be on only after the plug is inserted into the cavity.
● Contact performance of the plug is reliable. The plug sleeve in the socket has an elasticshutter spring sleeve, which not only makes the plug self-cleaning but also ensures small contact resistance and low-temperature rise. At the same time, it also reduces the required insertion and extraction force to the minimum. The design of shutter spring sleeve ensures the normal function of plug and socket and permanent self-cleaning.
● This model includes a timer with different working voltages, set to different colors to avoid mistaken insertion.

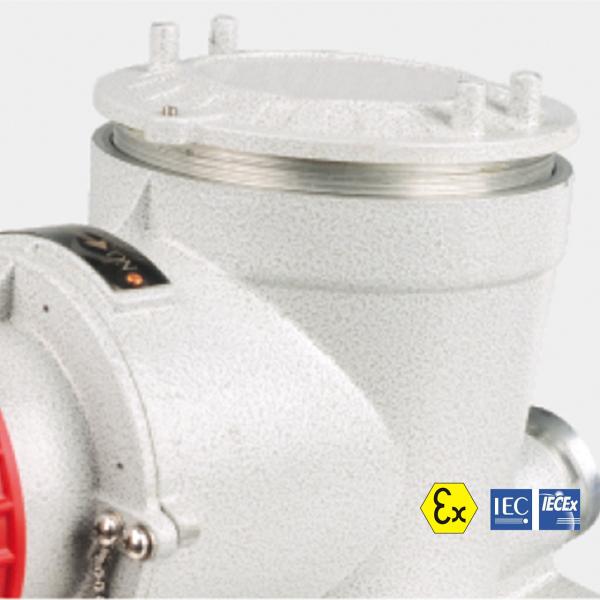

ATEX Explosion Proof Electrical Equipment 2P-5P Flameproof Plug And Socket Flame-proof thread type cover
Easy to install and disassemble		 ATEX Explosion Proof Electrical Equipment 2P-5P Flameproof Plug And Socket Stainless steel nameplate
Clear and fine letter

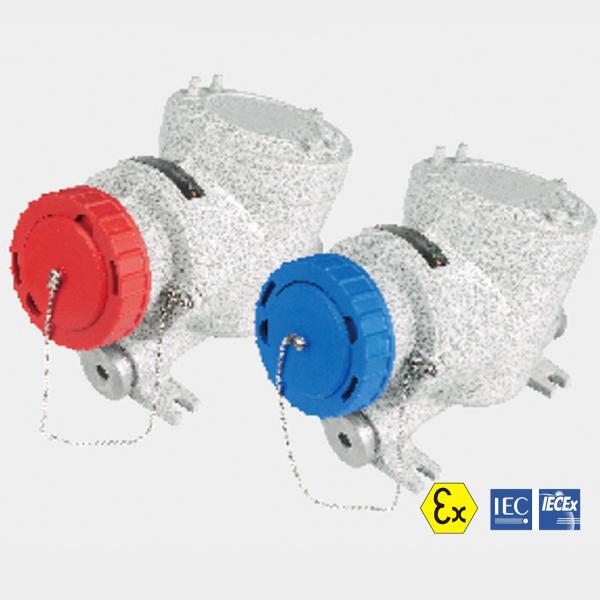

ATEX Explosion Proof Electrical Equipment 2P-5P Flameproof Plug And Socket Different working voltage product

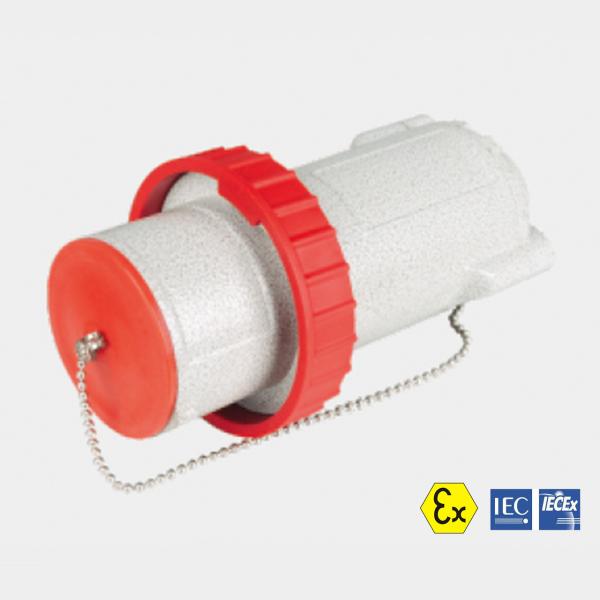

with different indication color		 ATEX Explosion Proof Electrical Equipment 2P-5P Flameproof Plug And Socket Fix the dust cover with stainless
steel chain
Prevent falling off
Protect contact copper rod and
flame-proof joint

Technical Parameter:

Ex marking Gas II 2 G Ex db IIC T6 Gb Ex db IIC T6 Gb Ex db IIC T6 Gb
Dust II 2 D Ex tb IIIC T80℃ Db Ex tb IIIC T80℃ Db Ex tD A21 IP66 T80℃
Conformity to standards

IEC 60079-0, IEC 60079-1, IEC 60079-31

EN 60079-0, EN 60079-1, EN 60079-31 GB3836.1,GB3836.2,GB12476.1,GB12476.5
Enclosure material Aluminum alloy enclosure, power coated surface,industrial gray with dark lines texture(RAL7035)
Exposed fastener Stainless steel
Rated voltage 24,36V DC(10,16A)

20～50V AC,100～130V AC, 200～250V AC, 380～415V AC,

480～500V AC, 600～690V AC
Rated current 10A, 16A, 25A, 32A, 50A, 63A,100A, 125A
Poles 2P(2P+PE),3P(2P+PE),4P(3P+PE),5P(3P+N+PE)
Frequency 50Hz / 60Hz
Degree of protection IP66
Ambient temperature 10,16,25,32,50,63A:-60℃~+45℃,-60℃~+65℃(Please specify when ordering) 100,125A:-60℃~+50℃
Cable outer diameter(mm) Rated current 10,16A 25,32A 50,63A 100,125A
Wire diameter 2.5~4mm2 4~6mm2 10~16mm2 25~35mm2
Weight (kg) 2.2 3.3 6.6 25.2

Selection Table:

Rated current (A) Rated voltage (V)

Pole

h

Color

Outlet and Inlet thread

Cable outer dia. (mm)

10,16

 DC24

2P

 - Purple

Plug:

1-M25×1.5

1-NPT3/4

Socket:

2-M25×1.5

2-NPT3/4

φ9～φ14
DC36 - White
AC20～25

2P+PE

 12 Purple
AC40～50 12 Purple
AC100～130 4 Yellow
AC200～250 6 Blue
AC100～130

3P+PE

 4 Yellow
AC200～250 9 Blue
AC380～415 6 Red
AC480～500 7 Black
AC600～690 5 Black
AC57～75

3P+N+PE

 4 Yellow

Plug:

1-M32×1.5

1-NPT1

Socket:

2-M32×1.5

2-NPT1

φ11～φ18
AC100～130 4 Yellow
AC120～144 9 Blue
AC208～250 9 Blue
AC200～240 9 Blue
AC346～415 5 Black
AC277～288 7 Black
AC480～500 7 Black
AC347～400 5 Black
AC600～690 5

Black

Rated current (A) Rated voltage (V)

Pole

h

Color

Outlet and Inlet thread

Cable outer dia. (mm)

25,32

 AC20～25

2P+PE

 12 Purple

Plug:

1-M32X1.5

1-NPT1

Socket:

2-M32X1.5

2-NPT1

φ11～φ18
AC40～50 12 Purple
AC100～130 4 Yellow
AC200～250 6 Blue
AC200～250

3P+PE

 9 Blue
AC380～415 6 Red
AC480～500 7 Black
AC600～690 5 Black
AC120～144

3P+N+PE

 9 Blue
AC208～250 9 Blue
AC200～240 9 Blue
AC346～415 5 Black
AC277～288 7 Black
AC480～500 7 Black
AC347～400 5 Black
AC600～690 5 Black

50,63

 AC200～250

3P+PE

 9 Blue

Plug:

1-M50X1.5

1-NPT11/2

Socket:

2-M40X1.5

2-NPT11/4

φ17～φ30
AC380～415 6 Red
AC480～500 7 Black
AC600～690 5 Black

φ14～φ23
AC120～144

3P+N+PE

 9 Blue
AC208～250 9 Blue
AC200～240 9 Blue
AC346～415 5 Black
AC277～288 7 Black
AC480～500 7 Black
AC347～400 6 Red
AC600～690 5 Black

100,125

 AC200～250

3P+PE

 9 Blue

Plug:

1-M50X1.5

1-NPT11/2

Socket:

2-M63X1.5

3-M63X1.5

2-NPT2

3-NPT2

φ18～φ33
AC380～415 6 Red
AC480～500 7 Black
AC600～690 5 Black

φ24～φ38
AC200～240

3P+N+PE

 6 Red
AC346～415 6 Red
AC277～288 7 Black
AC480～500 7 Black
AC347～400 6 Red
AC600～690 5 Black

Outline and Installation Dimension(Dimensions in mm):

Size (mm)Type

A

 B C D E F
KBSP01-16 106 164 334 52 105 7
KBSP01-32 126 195 384 77 140 9
KBSP01-63 187 238 469 87 180 13
KBSP01-125 360 256 693 328 315 /
